首页 Skyworks晶振

Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振

Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振

产品简介

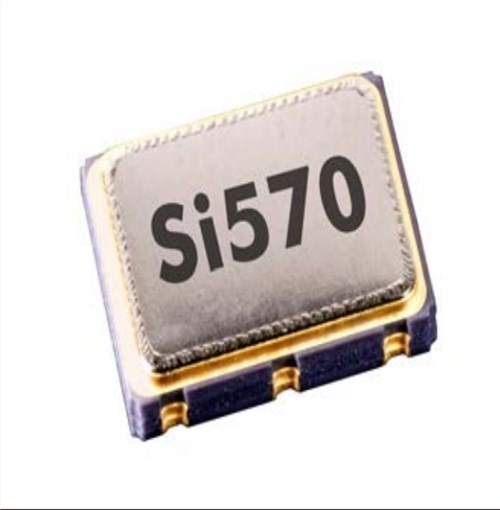

Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振，尺寸7.0×5.0mm，频率100MHZ，电压2.5V ，输出逻辑LVDS，LVDS输出晶振，贴片差分振荡器，LVDS差分晶体振荡器，7050mm差分晶振，差分压控晶振，压控晶体振荡器，100MHZ差分振荡器，低电压差分晶振，低抖动差分晶振，低损耗差分振荡器，低相位差分晶振，低相噪差分晶振，低功耗差分振荡器，高品质差分晶振，高性能差分振荡器，光模块差分晶振，通讯模块差分振荡器，仪器仪表专用差分晶振，测试测量差分晶振，具有低相位低抖动的特点。

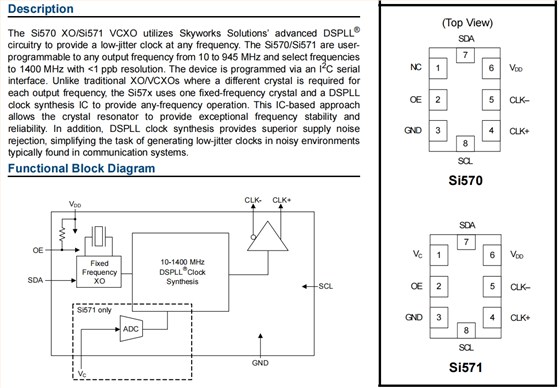

Si570 XO/Si571 VCXO振荡器采用Skyworks Solutions的先进DSPLL®电路，以提供任何频率的低抖动时钟Si570/Si571可由用户编程为10至945MHz的任何输出频率，并可选择频率至1400MHz，分辨率<1 ppb。该设备通过I2C串行进行编程界面与传统XO/VCXO不同，传统XO/VXO需要不同的晶体每个输出频率，Si57x使用一个固定频率晶体和一个DSPLL时钟合成IC，以提供任何频率操作。Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振.


产品详情

Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振，尺寸7.0×5.0mm，频率100MHZ，电压2.5V ，输出逻辑LVDS，LVDS输出晶振，贴片差分振荡器，LVDS差分晶体振荡器，7050mm差分晶振，差分压控晶振，压控晶体振荡器，100MHZ差分振荡器，低电压差分晶振，低抖动差分晶振，低损耗差分振荡器，低相位差分晶振，低相噪差分晶振，低功耗差分振荡器，高品质差分晶振，高性能差分振荡器，光模块差分晶振，通讯模块差分振荡器，仪器仪表专用差分晶振，测试测量差分晶振，具有低相位低抖动的特点。

Si570 XO/Si571 VCXO振荡器采用Skyworks Solutions的先进DSPLL®电路，以提供任何频率的低抖动时钟Si570/Si571可由用户编程为10至945MHz的任何输出频率，并可选择频率至1400MHz，分辨率<1 ppb。该设备通过I2C串行进行编程界面与传统XO/VCXO不同，传统XO/VXO需要不同的晶体每个输出频率，Si57x使用一个固定频率晶体和一个DSPLL时钟合成IC，以提供任何频率操作。Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振.

Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振 参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
108
99
90 		130
117
108
98 		mA
TriState mode 60 75
Output Enable (OE)2,
Serial Data (SDA),
Serial Clock (SCL) 		VIH 0.75 x VDD V
VIL 0.5
Operating Temperature Range TA –40 85 ºC
Parameter Symbol Test Condition Min Typ Max Unit
Control Voltage Tuning Slope1,2,3 KV VC10 to 90% of VDD — 33
45
90
135
180
356 		— ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 kΩ
Nominal Control Voltage5 VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
Parameter Symbol Test Condition Min Typ Max Unit
Programmable Frequency
Range1,2 		fO LVPECL/LVDS/CML 10 — 1417.5 MHz
CMOS 10 — 160
Temperature Stability1,3 TA= –40 to +85 ºC –7
–20
–50
–100 		—
—
—
— 		7
+20
+50
+100 		ppm
Initial Accuracy — 1.5 — ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20-year life — — ±10 ppm
Total Stability Temp stability = ±7 ppm ±20 ppm
Temp stability = ±20 ppm ±31.5 ppm
Temp stability = ±50 ppm — — ±61.5 ppm
Absolute Pull Range1,3 APR ±12 — ±375 ppm
Power up Time4 tOSC — — 10 ms

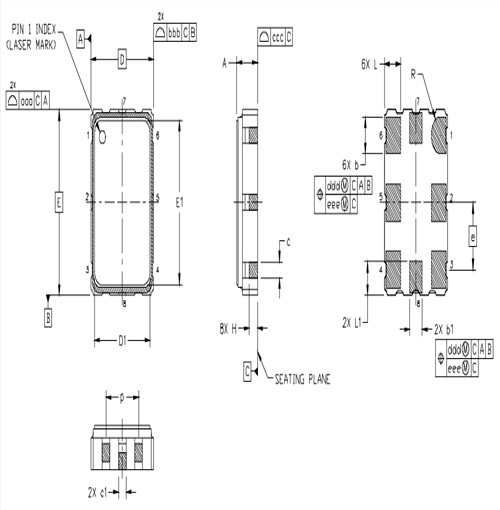

Si570差分晶体\570FAC001059DGR\6G模块晶振\Skyworks低电压晶振 尺寸图Si570 Si571

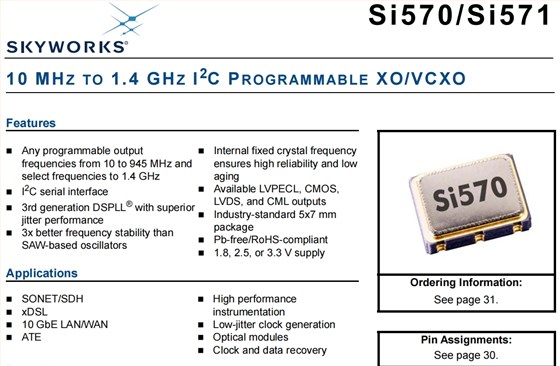

压控晶体振荡器产品特征:

任何可编程输出频率为10至945MHz

选择频率至1.4GHz

2C串行接口

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率

确保高可靠性和低成本变老

可用LVPECL、CMOS、LVDS和CML输出

行业标准5x7mm包裹

无铅/符合RoHS

1.8、2.5或3.3 V电源

Si570 Si571 1Si570 Si571 2

更多相关Skyworks有源晶振型号

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply Frequency Stability
570BAB000544DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si570 156.25 MHz LVDS 3.3V ±50ppm
570FAA000759DGR Skyworks有源晶振 XTAL OSC XO 644.53125MHZ LVDS Si570 644.53125 MHz LVDS 2.5V ±50ppm
570BAB000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si570 156.25 MHz LVDS 3.3V ±50ppm
570BCC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si570 10 MHz LVDS 3.3V ±7ppm
570JAC000900DG Skyworks有源晶振 XTAL OSC XO 33.3333333MHZ CMOS Si570 33.3333333 MHz CMOS 1.8V ±50ppm
570BBC000876DG Skyworks有源晶振 XTAL OSC XO 49.87013MHZ LVDS SMD Si570 49.87013 MHz LVDS 3.3V ±20ppm
570KCB000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CML SMD Si570 100 MHz CML 1.8V ±7ppm
570ACA001527DGR Skyworks有源晶振 XTAL OSC XO 875.0000MHZ LVPECL Si570 875 MHz LVPECL 3.3V ±7ppm
570BBC000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si570 100 MHz LVDS 3.3V ±20ppm
570BAB000544DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si570 156.25 MHz LVDS 3.3V ±50ppm
570BAB001614DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si570 300 MHz LVDS 3.3V ±50ppm
570BAB001614DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si570 300 MHz LVDS 3.3V ±50ppm
570BAB000299DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si570 200 MHz LVDS 3.3V ±50ppm
570GAC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si570 10 MHz CMOS 2.5V ±50ppm
570AAA000111DG Skyworks有源晶振 XODIFFSEI2C PROG10-1417 MH Si570 25 MHz LVPECL 3.3V ±50ppm
570CAC000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si570 100 MHz CMOS 3.3V ±50ppm
570AAC000118DG Skyworks晶振 XTAL OSC XO 156.2500MHZ LVPECL Si570 156.25 MHz LVPECL 3.3V ±50ppm
570AAC000129DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si570 155.52 MHz LVPECL 3.3V ±50ppm
570BBA000504DGR Skyworks有源晶振 XTAL OSC XO 48.0000MHZ LVDS SMD Si570 48 MHz LVDS 3.3V ±20ppm
570BBC000131DG Skyworks有源晶振 XTAL OSC XO 120.0000MHZ LVDS SMD Si570 120 MHz LVDS 3.3V ±20ppm
570BBC000131DGR Skyworks有源晶振 XTAL OSC XO 120.0000MHZ LVDS SMD Si570 120 MHz LVDS 3.3V ±20ppm
570BCB001530DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si570 148.5 MHz LVDS 3.3V ±7ppm
570BCB001530DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si570 148.5 MHz LVDS 3.3V ±7ppm
570CAC000125DG Skyworks有源晶振 XTAL OSC XO 128.5000MHZ CMOS SMD Si570 128.5 MHz CMOS 3.3V ±50ppm
570CAC000125DGR Skyworks有源晶振 XTAL OSC XO 128.5000MHZ CMOS SMD Si570 128.5 MHz CMOS 3.3V ±50ppm
570DCB000476DG Skyworks有源晶振 XTAL OSC XO 322.265625MHZ CML Si570 322.265625 MHz CML 3.3V ±7ppm
570DCB000476DGR Skyworks有源晶振 XTAL OSC XO 322.265625MHZ CML Si570 322.265625 MHz CML 3.3V ±7ppm
570FAB000125DG Skyworks有源晶振 XTAL OSC XO 128.5000MHZ LVDS SMD Si570 128.5 MHz LVDS 2.5V ±50ppm
570FAB000125DGR Skyworks有源晶振 XTAL OSC XO 128.5000MHZ LVDS SMD Si570 128.5 MHz LVDS 2.5V ±50ppm
570FAC000125DG Skyworks有源晶振 XTAL OSC XO 128.5000MHZ LVDS SMD Si570 128.5 MHz LVDS 2.5V ±50ppm
570FAC000125DGR Skyworks有源晶振 XTAL OSC XO 128.5000MHZ LVDS SMD Si570 128.5 MHz LVDS 2.5V ±50ppm
570FCB001691DG Skyworks有源晶振 XTAL OSC XO 698.8123MHZ LVDS SMD Si570 698.8123 MHz LVDS 2.5V ±7ppm
570FCB001691DGR Skyworks有源晶振 XTAL OSC XO 698.8123MHZ LVDS SMD Si570 698.8123 MHz LVDS 2.5V ±7ppm
570HCC001767DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ CML SMD Si570 150 MHz CML 2.5V ±7ppm
570HCC001767DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ CML SMD Si570 150 MHz CML 2.5V ±7ppm
570JBC001668DG Skyworks有源晶振 XTAL OSC XO 32.7680MHZ CMOS SMD Si570 32.768 MHz CMOS 1.8V ±20ppm
570JBC001668DGR Skyworks有源晶振 XTAL OSC XO 32.7680MHZ CMOS SMD Si570 32.768 MHz CMOS 1.8V ±20ppm
570WCB000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Si570 156.25 MHz CML 1.8V ±7ppm
570WCB000118DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Si570 156.25 MHz CML 1.8V ±7ppm
570ABB000133DG Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVPECL Si570 500 MHz LVPECL 3.3V ±20ppm
570ABB000133DGR Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVPECL Si570 500 MHz LVPECL 3.3V ±20ppm
570ACA000462DG Skyworks有源晶振 XTAL OSC XO 1.0000GHZ LVPECL SMD Si570 1 GHz LVPECL 3.3V ±7ppm
570ACA000462DGR Skyworks有源晶振 XTAL OSC XO 1.0000GHZ LVPECL SMD Si570 1 GHz LVPECL 3.3V ±7ppm
570BAB000125DG Skyworks有源晶振 XTAL OSC XO 128.5000MHZ LVDS SMD Si570 128.5 MHz LVDS 3.3V ±50ppm
570BAB000125DGR Skyworks有源晶振 XTAL OSC XO 128.5000MHZ LVDS SMD Si570 128.5 MHz LVDS 3.3V ±50ppm
570BAB001595DG Skyworks有源晶振 XTAL OSC XO 333.0000MHZ LVDS SMD Si570 333 MHz LVDS 3.3V ±50ppm
570BAB001595DGR Skyworks有源晶振 XTAL OSC XO 333.0000MHZ LVDS SMD Si570 333 MHz LVDS 3.3V ±50ppm
570BBA000504DG Skyworks有源晶振 XTAL OSC XO 48.0000MHZ LVDS SMD Si570 48 MHz LVDS 3.3V ±20ppm
570AAC000270DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V ±50ppm
570AAC001528DGR Skyworks有源晶振 XTAL OSC XO 19.9840MHZ LVPECL Si570 19.984 MHz LVPECL 3.3V ±50ppm
570AAC001762DGR Skyworks有源晶振 XTAL OSC XO 136.39008MHZ LVPECL Si570 136.39008 MHz LVPECL 3.3V ±50ppm
570CAA000115DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ CMOS SMD Si570 125 MHz CMOS 3.3V ±50ppm
570CAC000200DGR Skyworks有源晶振 XTAL OSC XO 14.0000MHZ CMOS SMD Si570 14 MHz CMOS 3.3V ±50ppm
570CAC000973DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ CMOS SMD Si570 125 MHz CMOS 3.3V ±50ppm
570CAC001041DGR Skyworks有源晶振 XTAL OSC XO 156.0000MHZ CMOS SMD Si570 156 MHz CMOS 3.3V ±50ppm
570CAC001705DGR Skyworks有源晶振 XTAL OSC XO 54.3600MHZ CMOS SMD Si570 54.36 MHz CMOS 3.3V ±50ppm
570CAC001722DGR Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD Si570 24.576 MHz CMOS 3.3V ±50ppm
570EAC000741DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si570 156.25 MHz LVPECL 2.5V ±50ppm
570FAC000465DGR Skyworks有源晶振 XTAL OSC XO 60.0000MHZ LVDS SMD Si570 60 MHz LVDS 2.5V ±50ppm
570FAC000833DGR Skyworks有源晶振 XTAL OSC XO 153.6000MHZ LVDS SMD Si570 153.6 MHz LVDS 2.5V ±50ppm
570FAC001059DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si570 100 MHz LVDS 2.5V ±50ppm
570FAC001531DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si570 100 MHz LVDS 2.5V ±50ppm
570GAC000118DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CMOS SMD Si570 156.25 MHz CMOS 2.5V ±50ppm
570GAC000121DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si570 100 MHz CMOS 2.5V ±50ppm
570GAC001519DGR Skyworks有源晶振 XTAL OSC XO 35.4780MHZ CMOS SMD Si570 35.478 MHz CMOS 2.5V ±50ppm
570JAC001711DGR Skyworks有源晶振 XTAL OSC XO 33.3333MHZ CMOS SMD Si570 33.3333 MHz CMOS 1.8V ±50ppm
570JAC001754DGR Skyworks有源晶振 XTAL OSC XO 39.0625MHZ CMOS SMD Si570 39.0625 MHz CMOS 1.8V ±50ppm
570WCA002323DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 13.39239 MHz CML 1.8V ±7ppm
570BCA000136DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 160 MHz LVDS 3.3V ±7ppm
570BCA000301DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.213 GHz LVDS 3.3V ±7ppm
570BCA002166DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 33.333333 MHz LVDS 3.3V ±7ppm
570KCA002221DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 167.33 MHz CML 1.8V ±7ppm
570ACA000313DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 300 MHz LVPECL 3.3V ±7ppm
570BCA001830DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.215 GHz LVDS 3.3V ±7ppm
570ACA002326DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 33.3333333 MHz LVPECL 3.3V ±7ppm
570ACA002276DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.2 MHz LVPECL 3.3V ±7ppm
570ACA000780DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 30 MHz LVPECL 3.3V ±7ppm
570BCA000298DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 866 MHz LVDS 3.3V ±7ppm
570ACA000544DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVPECL 3.3V ±7ppm
570BCA000163DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 20 MHz LVDS 3.3V ±7ppm
570FCA001040DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 188 MHz LVDS 2.5V ±7ppm
570BCA002400DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 49.87013 MHz LVDS 3.3V ±7ppm
570ACA001123DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVPECL 3.3V ±7ppm
570BCA002390DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 50 MHz LVDS 3.3V ±7ppm
570ACA001476DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 10 MHz LVPECL 3.3V ±7ppm
570BCA000520DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 156.25 MHz LVDS 3.3V ±7ppm
570BCA000915DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 375 MHz LVDS 3.3V ±7ppm
570BCA002414DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 174.703 MHz LVDS 3.3V ±7ppm
570BCA000157DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 50 MHz LVDS 3.3V ±7ppm
570ACA002412DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 1.05 GHz LVPECL 3.3V ±7ppm
570ACA000420DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 644.53125 MHz LVPECL 3.3V ±7ppm
570ACA002188DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si570 20 MHz LVPECL 3.3V ±7ppm
570AAC000270DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si570 10 MHz LVPECL 3.3V ±50ppm
570AAC001528DG Skyworks有源晶振 XTAL OSC XO 19.9840MHZ LVPECL Si570 19.984 MHz LVPECL 3.3V ±50ppm
570AAC001762DG Skyworks有源晶振 XTAL OSC XO 136.39008MHZ LVPECL Si570 136.39008 MHz LVPECL 3.3V ±50ppm
570CAA000115DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ CMOS SMD Si570 125 MHz CMOS 3.3V ±50ppm
570CAC000200DG Skyworks有源晶振 XTAL OSC XO 14.0000MHZ CMOS SMD Si570 14 MHz CMOS 3.3V ±50ppm
570CAC000973DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ CMOS SMD Si570 125 MHz CMOS 3.3V ±50ppm
570CAC001041DG Skyworks有源晶振 XTAL OSC XO 156.0000MHZ CMOS SMD Si570 156 MHz CMOS 3.3V ±50ppm
570CAC001705DG Skyworks有源晶振 XTAL OSC XO 54.3600MHZ CMOS SMD Si570 54.36 MHz CMOS 3.3V ±50ppm
570CAC001722DG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD Si570 24.576 MHz CMOS 3.3V ±50ppm
570EAC000741DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si570 156.25 MHz LVPECL 2.5V ±50ppm
570FAC000465DG Skyworks有源晶振 XTAL OSC XO 60.0000MHZ LVDS SMD Si570 60 MHz LVDS 2.5V ±50ppm
570FAC000833DG Skyworks有源晶振 XTAL OSC XO 153.6000MHZ LVDS SMD Si570 153.6 MHz LVDS 2.5V ±50ppm
570FAC001059DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si570 100 MHz LVDS 2.5V ±50ppm
570FAC001531DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si570 100 MHz LVDS 2.5V ±50ppm
570GAC000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CMOS SMD Si570 156.25 MHz CMOS 2.5V ±50ppm
570GAC000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si570 100 MHz CMOS 2.5V ±50ppm
570GAC001519DG Skyworks有源晶振 XTAL OSC XO 35.4780MHZ CMOS SMD Si570 35.478 MHz CMOS 2.5V ±50ppm
570JAC001711DG Skyworks有源晶振 XTAL OSC XO 33.3333MHZ CMOS SMD Si570 33.3333 MHz CMOS 1.8V ±50ppm
570JAC001754DG Skyworks有源晶振 XTAL OSC XO 39.0625MHZ CMOS SMD Si570 39.0625 MHz CMOS 1.8V ±50ppm
570NBA000163DG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVDS SMD Si570 20 MHz LVDS 3.3V ±20ppm
570NBA000223DG Skyworks有源晶振 XTAL OSC XO 28.1920MHZ LVDS SMD Si570 28.192 MHz LVDS 3.3V ±20ppm
570NBA000233DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si570 10 MHz LVDS 3.3V ±20ppm
570NBA000352DG Skyworks有源晶振 XTAL OSC XO 288.399994MHZ LVDS Si570 288.399994 MHz LVDS 3.3V ±20ppm
570NBA000724DG Skyworks有源晶振 XTAL OSC XO 26.0000MHZ LVDS SMD Si570 26 MHz LVDS 3.3V ±20ppm
570NBA000725DG Skyworks有源晶振 XTAL OSC XO 56.0000MHZ LVDS SMD Si570 56 MHz LVDS 3.3V ±20ppm
570NBA000726DG Skyworks有源晶振 XTAL OSC晶振 XO 100.0000MHZ LVDS SMD Si570 100 MHz LVDS 3.3V ±20ppm
570NBA000727DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si570 200 MHz LVDS 3.3V ±20ppm
570NBA000728DG Skyworks有源晶振 XTAL OSC XO 900.0000MHZ LVDS SMD Si570 900 MHz LVDS 3.3V ±20ppm
570NBA001482DG Skyworks有源晶振 XTAL OSC XO 700.0000MHZ LVDS SMD Si570 700 MHz LVDS 3.3V ±20ppm
570NBA001484DG Skyworks有源晶振 XTAL OSC XO 700.0000MHZ LVDS SMD Si570 700 MHz LVDS 3.3V ±20ppm
570NBA001485DG Skyworks有源晶振 XTAL OSC XO 700.0000MHZ LVDS SMD Si570 700 MHz LVDS 3.3V ±20ppm
570NBA001486DG Skyworks有源晶振 XTAL OSC XO 700.0000MHZ LVDS SMD Si570 700 MHz LVDS 3.3V ±20ppm
570QBA000107DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CML SMD Si570 10 MHz CML 3.3V ±20ppm
570QBA000135DG Skyworks有源晶振 XTAL OSC XO 340.0000MHZ CML SMD Si570 340 MHz CML 3.3V ±20ppm
570QBA000143DG Skyworks有源晶振 XTAL OSC XO 117.0000MHZ CML SMD Si570 117 MHz CML 3.3V ±20ppm
570QBA000264DG Skyworks有源晶振 XTAL OSC XO 174.9280MHZ CML SMD Si570 174.928 MHz CML 3.3V ±20ppm
570QBA000605DG Skyworks有源晶振 XTAL OSC XO 31.45728MHZ CML SMD Si570 31.45728 MHz CML 3.3V ±20ppm

上一页 余下全文

1/5

关于“LVDS输出晶振,贴片差分振荡器,LVDS差分晶体振荡器,7050mm差分晶振,100MHZ差分振荡器,低电压差分晶振,低抖动差分晶振”的相关产品

美国Silicon晶振/511BBA100M000BAG/6G室内路由器晶振/Si511有源差分振荡器美国Silicon晶振/511BBA100M000BAG/6G室内路由器晶振/Si511有源差分振荡器Si531差分晶振|6G无线网络晶振|531FC156M250DG|Silicon低电流振荡器Si531差分晶振|6G无线网络晶振|531FC156M250DG|Silicon低电流振荡器

6G移动通信晶振 8N32003EC-60.000-CDI8 IDT有源振荡器6G移动通信晶振 8N32003EC-60.000-CDI8 IDT有源振荡器XUL736125.000JU6I,XUL低相位晶振,瑞萨差分振荡器,6G交换机晶振XUL736125.000JU6I,XUL低相位晶振,瑞萨差分振荡器,6G交换机晶振

SG7050EBN电信晶振,EPSON差分振荡器,X1G0045110601SG7050EBN电信晶振,EPSON差分振荡器,X1G0045110601X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器

XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振爱普生LV-PECL晶振,XG-2102CA蓝牙模块晶振,X1M0003010048爱普生LV-PECL晶振,XG-2102CA蓝牙模块晶振,X1M0003010048

X1M0003210000,爱普生差分晶振,XG-2103CA微波通信晶振X1M0003210000,爱普生差分晶振,XG-2103CA微波通信晶振

热点推荐

CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC消费电子产品专用晶振WiFi模块专用晶振LFXTAL059596REEL差分晶振510ABA125M000BAG提供卓越的电源噪声抑制优秀相位噪声的TCXO晶体振荡器AST3TQ-T-19.200MHZ-28-T2最佳选择为是军用无线电车载控制器TCXO晶振1XTW20000CCA

网友热评

返回头部
  • 台产晶振
  • 日产进口晶振
  • 欧美进口晶振
  • 32.768K晶振
  • 石英晶体振荡器

深圳市康比电子有限公司版权所有

微信号

微信号

公众号

公众号

服务热线：+86-0755-27876201
公司邮箱： kangbidz@163.com
手 机：137 2874 2863
公司地址：广东深圳市宝安区67区6号庭威工业区

Copyright © 1996-2018

※ CEOB2B技术支持 ※
