XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振

XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振，尺寸7.0×5.0mm，频率125MHZ，输出逻辑LV-PECL，爱普生进口晶振，日本进口晶振，7050mm差分晶振，LV-PECL输出晶振，石英差分晶振，贴片差分振荡器，LV-PECL差分晶体振荡器，有源差分振荡器，交换机专用差分晶振，北斗模块差分晶振，智能家电差分晶振，影音系统差分晶振，低电压差分晶振，低功耗差分晶振，低相位差分晶振，低抖动差分晶振，低相噪差分晶振，具有优异的耐压性能。

OSC晶振产品可广泛应用各大应用平台，比较适合用于交换机，北斗模块，智能家电，影音系统等应用。XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振.

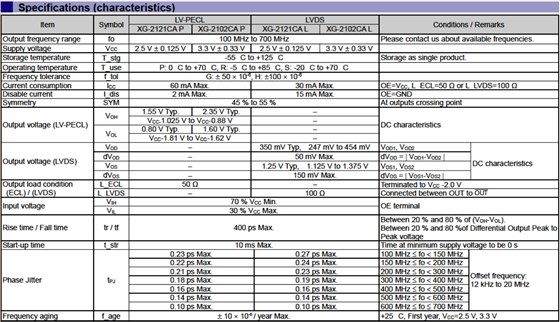

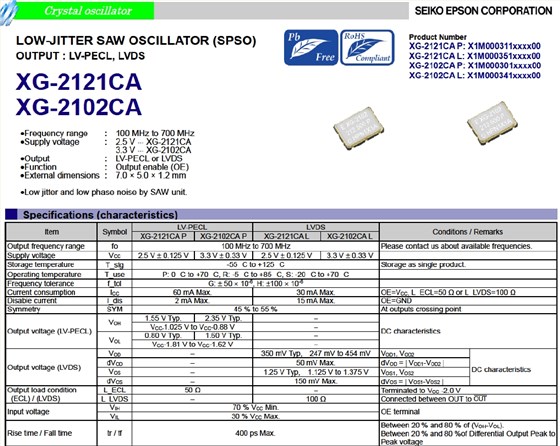

XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振 参数表

XG-2102CA XG-2121CA cans

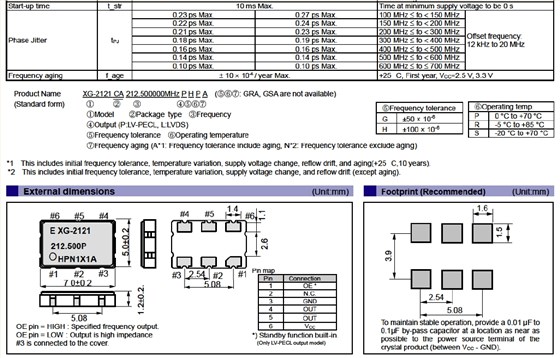

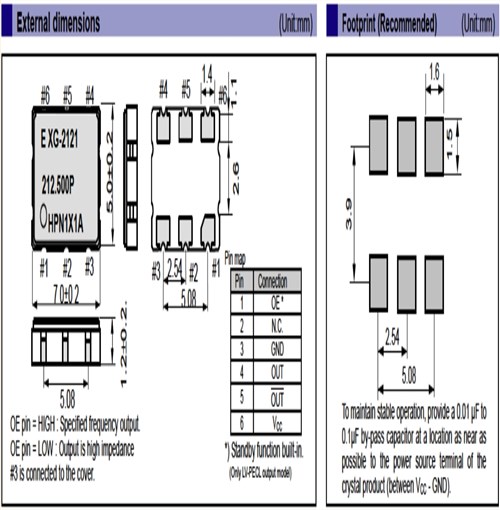

XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振 尺寸图

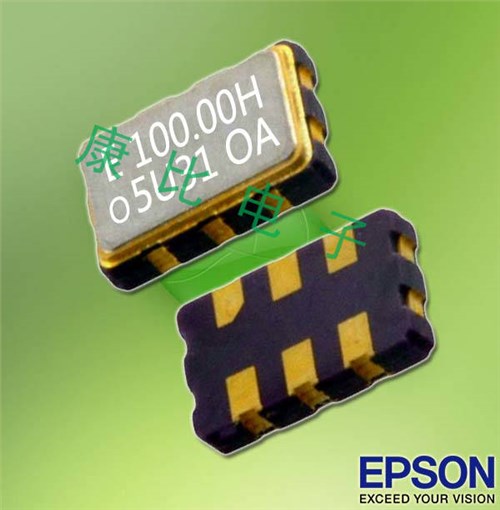

XG-2121CA交换机晶振,X1M0003110014,EPSON差分输出晶振

差分晶振产品特性：

频率范围：100MHz至700MHz

电源电压：3.3 V

输出：LV-PECL或LVDS

功能：输出启用（OE）

外形尺寸：7.0×5.0×1.2mm

编码	品牌	型号	频率	尺寸	输出方式	电源电压
X1M0003110002	爱普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110003	爱普生晶振	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110004	爱普生晶振	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110005	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110006	爱普生晶振	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110007	爱普生晶振	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110008	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110009	爱普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110010	爱普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110011	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110012	爱普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110013	爱普生晶振	XG-2121CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110014	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110015	爱普生晶振	XG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110016	爱普生晶振	XG-2121CA	127.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110017	爱普生晶振	XG-2121CA	136.718750 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110018	爱普生晶振	XG-2121CA	98.304000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110020	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110021	爱普生晶振	XG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110022	爱普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110023	爱普生晶振	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110024	爱普生晶振	XG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110025	爱普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110026	爱普生晶振	XG-2121CA	135.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110027	爱普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110028	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110029	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110030	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110031	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110032	爱普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
X1M0003110033	爱普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V
