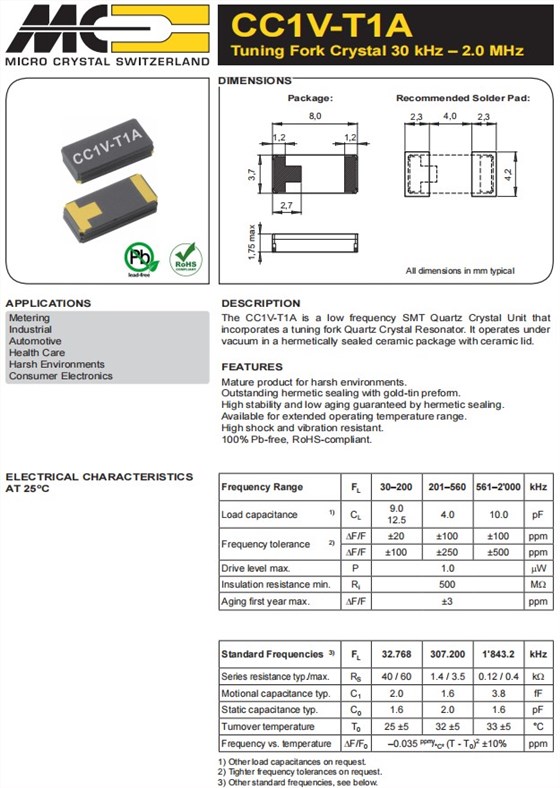

Microcrystal微晶型号CC1V-T1A，是一种低频SMT石英晶体单元，小体积晶振尺寸8.0x3.8mm两脚贴片晶振，无源晶振，石英贴片晶振，它包含音叉石英晶体谐振器，频率范围：30KHz-2.0MHz。它在以下条件下运作，带陶瓷盖的密封陶瓷包装中的真空。适用于恶劣环境的成熟产品。金锡预制件的出色密封。 密封保证了高稳定性和低老化。 扩展的工作温度范围。高抗冲击和振动。 100%无铅，符合RoHS标准。小体积轻薄型，石英晶体谐振器应用程序：测量，产业的，汽车的，卫生保健，恶劣的环境，消费电子产品等应用。CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC消费电子产品专用晶振
| 晶振厂家 | 制造商零件编号 | 描述 | 频率 |
| Micro Crystal | CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-9pF-20PPM-TA-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-7pF-20PPM-TB-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-9pF-100PPM-TC-QA | 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768k-9pF-20PPM-TC-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | 100 kHz |
| Micro Crystal | CC7V-T1A-32.768k-9pF-20PPM-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| 微晶晶振 | CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | 1.8432 MHz 10.0 pF 500 PPM -55/+125C | 1.8432 MHz |
| Micro Crystal | CC4V-T1A-32.768k-9pF-20PPM-TC-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | 1 MHz |
| Micro Crystal | CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | 153.6 kHz |
| Micro Crystal | CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | 307.200 kHz 4.0 pF 100 PPM -55/+125C | 307.2 kHz |
| Micro Crystal | CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | 1.8432 MHz |
| Micro Crystal | CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | 1.8432 MHz 10.0 pF 100 PPM -55/+125C | 1.8432 MHz |
| Micro Crystal | CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | 40 kHz |
| Micro Crystal | CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | 1.8432 MHz |
| Micro Crystal | CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | 1.2288 MHz |
| Micro Crystal | CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | 1.2288 MHz 10.0 pF 100 PPM -55/+125C | 1.2288 MHz |
| 进口晶振 | CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | 40 kHz |
| Micro Crystal | CC4V-T1A-32.768k-9pF-20PPM-TA-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | 307.2 kHz |
| Micro Crystal | CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | 1 MHz |
| Micro Crystal | CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | 2.000 MHz 10.0 pF +/-100 PPM -40/+85C | 2 MHz |
| Micro Crystal | CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | 40.000 kHz 9.0 pF +/-30 PPM -40/+85C | 40 kHz |
