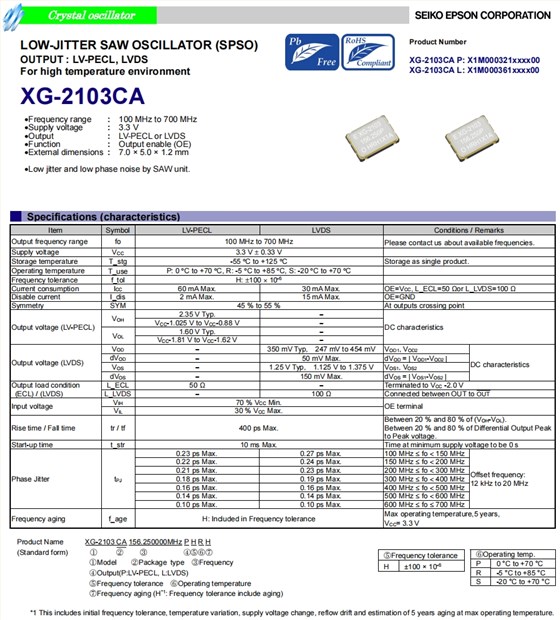

X1M0003210000,爱普生差分晶振,XG-2103CA微波通信晶振 参数表

Item

Symbol

LV-PECL

LVDS

Conditions / Remarks

Output frequency range

150 MHz

Please contact us about available frequencies.

Supply voltage

VCC

3.3 V±0.33 V

Storage temperature

T_stg

-55°C to +125°C

Storage as single product.

Operating temperature

T_use

P: 0°C to +70°C, R: -5°C to +85°C , S: -20°C to +70°C

Frequency tolerance

f_tol

H:±100×10-6

Current consumption

ICC

60 mA Max.

30 mA Max.

OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω

Disable current

I_dis

2 mA Max.

15 mA Max.

OE=GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

2.35 V Typ.

−

DC characteristics

VCC- 1.025 V to VCC-0.88 V

−

VOL

1.60 V Typ.

−

VCC- 1.81 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

350 mV Typ,247 mV to 454 mV

VOD1 , VOD2

DC characteristics

dVOD

−

50 mV Max.

dVOD=|VOD1-VOD2|

VOS

−

1.25 V Typ,1.125 V to 1.375 V

VOS1 , VOS2

dVOS

−

150 mV Max.

dVOS=|VOS1-VOS2|

Output load condition
(ECL) / (LVDS)

L_ECL

50 Ω

−

Terminated to VCC-2.0 V

L_LVDS

−

100 Ω

Connected between OUT to OUT

Input voltage

VIH

70 % VCCMin.

OE terminal

VIL

30 % VCCMax.

Rise time / Fall time

tr / tf

400 ps Max.

Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

tPJ

0.23 ps Max.

0.27 ps Max.

100 MHz≤fo<150 MHz

Offset frequency:
12 kHz to 20 MHz

0.22 ps Max.

0.24 ps Max.

150 MHz≤fo<200 MHz

0.21 ps Max.

0.23 ps Max.

200 MHz≤fo<300 MHz

0.18 ps Max.

0.19 ps Max.

300 MHz≤fo<400 MHz

0.16 ps Max.

400 MHz≤fo<500 MHz

0.14 ps Max.

500 MHz≤fo<600 MHz

0.10 ps Max.

600 MHz≤fo≤700 MHz

Frequency aging

f_age

H: Included in Frequency tolerance

Max operating temperature,5 years,
VCC= 3.3 V

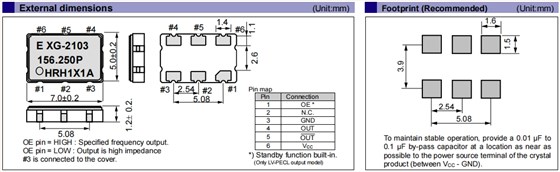

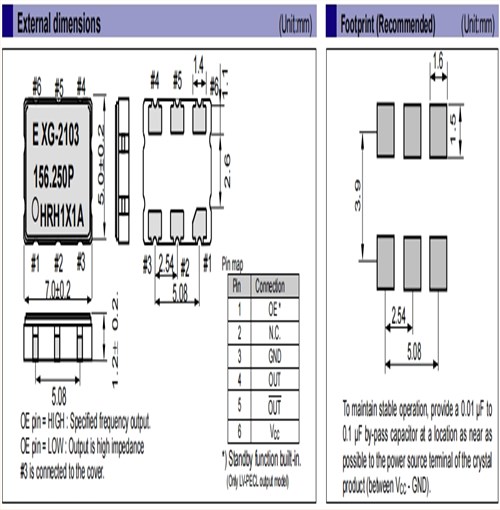

X1M0003210000,爱普生差分晶振,XG-2103CA微波通信晶振 尺寸图

X1M0003210000,爱普生差分晶振,XG-2103CA微波通信晶振

产品特性：

频率范围： 100MHz至700MHz

电源电压： 3.3V

输出： LV-PECL差分晶振或LVDS

功能：输出启用（OE）

外部尺寸： 7.0×5.0×1.2mm
