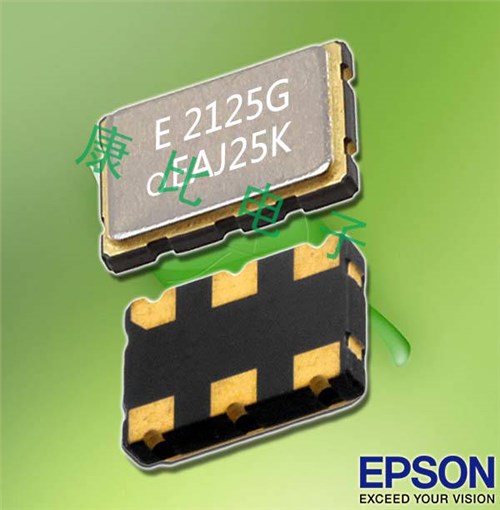

X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器

X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器，尺寸3.2x2.5mm，频率106.25MHZ，输出逻辑LV-PECL，EPSON有源晶振，日本进口晶振，有源差分晶振，差分贴片晶振，差分晶体振荡器，LV-PECL输出晶振，低抖动差分晶振，低电压差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，低耗能差分晶振，娱乐设备差分晶振，路由器差分晶振，北斗定位差分晶振，多媒体设备差分晶振，小型设备差分晶振，智能穿戴差分晶振，具有低功耗低电压的特点。

有源晶振产品常常用于娱乐设备，路由器，北斗定位，多媒体设备，小型设备，智能穿戴等领域。X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器.

X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器 参数表

Item

Symbol

Specifications

Conditions / Remarks

LV-PECL

LVDS

SG3225EAN / SG5032EAN /
SG7050EAN

SG3225VAN / SG5032VAN /
SG7050VAN

Output frequency range

106.25MHz

Please contact us about available frequencies.

Supply voltage

VCC

K: 2.5 V - 10 % to 3.3 V + 10 %

Storage temperature

T_stg

-40°C to +125°C

Storage as single product.

Operating temperature

T_use

B: -20°C to +70°C, G: -40°C to +85°C

Frequency tolerance

f_tol

J:±50×10-6, E:±30×10-6, C:±20×10-6

Current consumption

ICC

65 mA Max.

30 mA Max.

OE = Vcc, L_ECL = 50 Q or L_LVDS = 100 Q

Disable current

I_dis

20 mA Max.

OE = GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

VCC- 1.0 V to VCC- 0.8 V

−

DC characteristics

VOL

VCC- 1.78 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

250 mV to 450 mV

VOD1, VOD2

DC characteristics

VOD

−

50 mV Max.

dVOD=|VOD1-VOD2|

VOS

−

1.15 V to 1.35 V

VOS1, VOS2

VOS

−

150 mV Max .

dVOS=|VOS1-VOS2|

Output load condition
(ECL) / (LVDS)

L_ECL

50 Q

−

Terminated to VCC-2.0 V

L_LVDS

−

100 Q

Connected between OUT to OUT

Input voltage

VIH

70 % VCCMin .

OE terminal

VIL

30 % VCCMax.

Rise time / Fall time

tr/ tf

350 ps Max.

300 ps Max.

LV-PECL:Between 20 % and 80 % of (VOH-VOL) .
LVDS:Between 20 % and 80 %of Differential Output
peak to peak voltage

Start-up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

0.6 ps Max .*1

Offset frequency: 12 kHz to 20 MHz

Frequency aging

f_age

±5×10-6/ year Max.

+25°C, First year, VCC= 2.5 V, 3.3 V

X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器 尺寸图

X1G0042510046,SG3225EAN娱乐设备晶振,爱普生石英差分振荡器

产品特性：

通过PLL技术和基本AT晶体单元实现

宽频率范围： 73.5 MHz至700MHz

电源电压： 2.5 V到3.3 V

功能：输出启用（OE）

输出： LV-PECL或LVDS

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042510001	日本爱普生振荡器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510002	日本爱普生振荡器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510003	日本爱普生振荡器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510004	日本爱普生振荡器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510006	日本爱普生振荡器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510007	日本爱普生振荡器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510008	日本爱普生振荡器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510009	日本爱普生振荡器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510010	日本爱普生振荡器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510011	日本爱普生振荡器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510012	日本爱普生振荡器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510013	日本爱普生振荡器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510014	日本爱普生振荡器	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510015	日本爱普生振荡器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510016	日本爱普生振荡器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510017	日本爱普生振荡器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510018	日本爱普生振荡器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510021	日本爱普生振荡器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510022	日本爱普生振荡器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510024	日本爱普生振荡器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510025	日本爱普生振荡器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510026	日本爱普生振荡器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510027	日本爱普生振荡器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510028	日本爱普生振荡器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510029	日本爱普生振荡器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	日本爱普生振荡器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	日本爱普生振荡器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	日本爱普生振荡器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	日本爱普生振荡器	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	日本爱普生振荡器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	日本爱普生振荡器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510036	日本爱普生振荡器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510037	日本爱普生振荡器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510039	日本爱普生振荡器	SG3225EAN	700.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510040	日本爱普生振荡器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510041	日本爱普生振荡器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510043	日本爱普生振荡器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510044	日本爱普生振荡器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510045	日本爱普生振荡器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510046	日本爱普生振荡器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510047	日本爱普生振荡器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510048	日本爱普生振荡器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510049	日本爱普生振荡器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	差分晶振	2.250 to 3.630 V	-20 to 70 °C
X1G0042510050	日本爱普生振荡器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510051	日本爱普生振荡器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510053	日本爱普生振荡器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510054	日本爱普生振荡器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510055	日本爱普生振荡器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510056	日本爱普生振荡器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510059	日本爱普生振荡器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510060	日本爱普生振荡器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510062	日本爱普生振荡器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510063	日本爱普生振荡器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510064	日本爱普生振荡器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510065	日本爱普生振荡器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510066	日本爱普生振荡器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510067	日本爱普生振荡器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510068	日本爱普生振荡器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510069	日本爱普生振荡器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510070	日本爱普生振荡器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510072	日本爱普生振荡器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510073	日本爱普生振荡器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510074	日本爱普生振荡器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510079	日本爱普生振荡器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510080	日本爱普生振荡器	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510083	日本爱普生振荡器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510084	日本爱普生振荡器	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510087	日本爱普生振荡器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510088	日本爱普生振荡器	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510091	日本爱普生振荡器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510092	日本爱普生振荡器	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510100	日本爱普生振荡器	SG3225EAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510103	日本爱普生振荡器	SG3225EAN	644.531200 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510104	日本爱普生振荡器	SG3225EAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510105	日本爱普生振荡器	SG3225EAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510106	日本爱普生振荡器	SG3225EAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510107	日本爱普生振荡器	SG3225EAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510111	日本爱普生振荡器	SG3225EAN	133.330000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510112	日本爱普生振荡器	SG3225EAN	144.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510113	日本爱普生振荡器	SG3225EAN	174.703100 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510114	日本爱普生振荡器	SG3225EAN	320.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510115	日本爱普生振荡器	SG3225EAN	500.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510121	日本爱普生振荡器	SG3225EAN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
