BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22，尺寸1.6x1.0mm，频率32.768KHZ，BC22系列是一种超小型smd陶瓷晶振，高度为0.5mm。非常适合最小的电路空间应用包括移动通信、芯片卡、实时时钟和无线通信。美国进口晶振，Bomar轻薄型晶振，1610mm超小型晶振，32.768KHZ音叉晶体，无源贴片晶振，无源晶振，SMD谐振器，32.768K晶振，两脚贴片晶振，轻薄型晶体，移动通信晶振，实时时钟专用晶振，无线通信晶振，网络设备晶振，蓝牙耳机晶振，高性能晶振，高品质晶振，低损耗晶振，低耗能晶振，具有轻薄型高品质的特点。BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22.

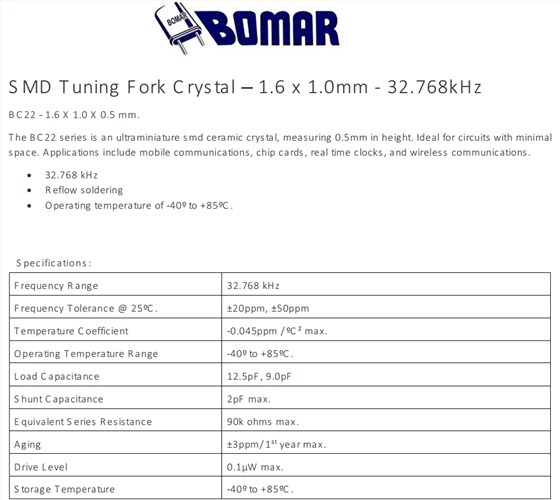

BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22 参数表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.045ppm / ºC² max. | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 90k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 0.1µW max. | |||||||||
| Storage Temperature | -40º to +85ºC. | |||||||||

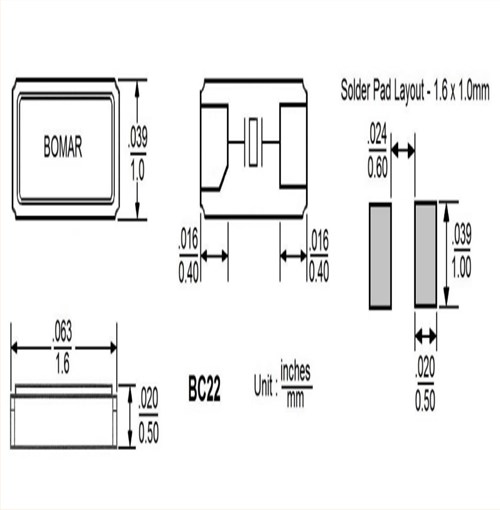

BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22 尺寸图
BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22
无源晶体产品特性：

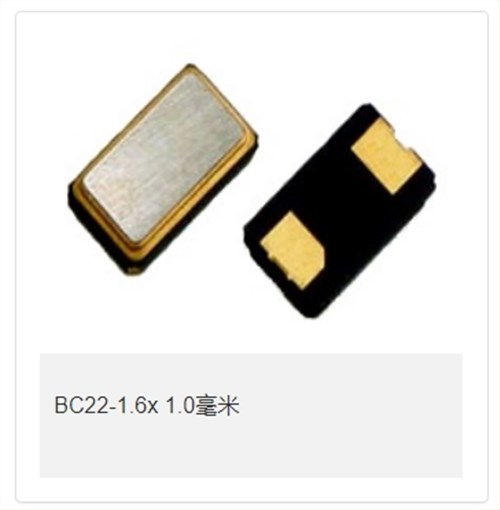

尺寸1.6x1.0mm
32.768千赫
回流焊接
工作温度为-40º至+85ºC。
