TZ1510A,TST音叉晶体,3215mm无源晶振,32.768KHZ计时器晶振,台湾贴片晶振,TST CRYSTAL,嘉硕SMD晶振,32.768KHZ时钟晶振,3215mm轻薄型晶体,无源贴片晶振,无源晶振,音叉晶体,尺寸3.2x1.5mm,频率32.768KHZ,负载9pF,低功耗晶振,低耗能晶振,无铅环保晶振,高可靠晶振,计时器晶振,游戏设备晶振,智能电表晶振,数字显示晶振.
TZ1510A,TST音叉晶体,3215mm无源晶振,32.768KHZ计时器晶振特点:
陶瓷接缝封装SMD晶振
卓越的可靠性性能
超微型封装
可用于表面安装技术和红外回流工艺
TZ1510A,TST音叉晶体,3215mm无源晶振,32.768KHZ计时器晶振 参数表
        TZ1510A
|
Specification |
| NominalFrequency | 32.768000KHz |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -40°Cto+85°C |
| Turnover Temperature | 25+/-5°C |
| Parabolic CurvatureConstant | -0.034 ppm+/-0.006ppm/°C |
| FrequencyMakeTolerance(FL) | +/-20 ppm@25°C+/-3°C |
| EquivalentSeriesResistor(ESR) | 70KΩmax. |
| ShuntCapacitance(Co) | 1.0 pF Max. |
| LoadCapacitance(CL) | 9pF |
| Aging | +/-3.0ppm/year@25°C |
| InsulationResistance | 500MΩmin atDC100V +/-15V |
| Marking | Lasermarking |

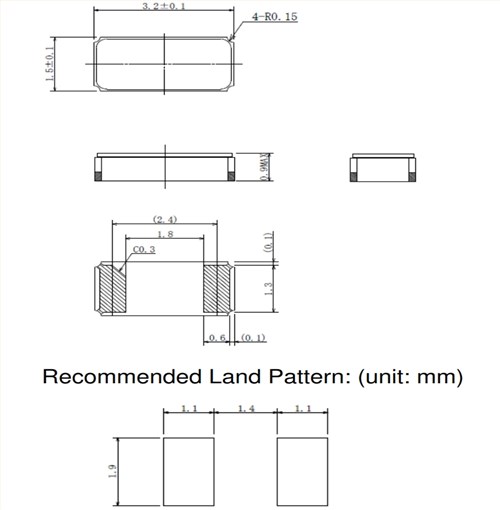

TZ1510A,TST音叉晶体,3215mm无源晶振,32.768KHZ计时器晶振 尺寸图
