AAS50M000000FLE16H,7050mm,AA系列晶体,50MHZ,STD贴片晶振,美国进口晶振,STD石英晶振,Standard Crystal,7050mm贴片晶振,50MHZ石英晶振,石英振动子,四脚贴片晶振,无源石英晶振,SMD晶振,尺寸7.0×5.0mm,频率50MHZ,无铅环保晶振,低功耗晶振,高品质晶振,高性能晶振,娱乐设备晶振,视听设备晶振,通信应用晶振,微处理器晶振.
AAS50M000000FLE16H,7050mm,AA系列晶体,50MHZ,STD贴片晶振特点:
贴片类型无源晶体
优异的耐热性和抗震性
Pb-free /通过无铅认证

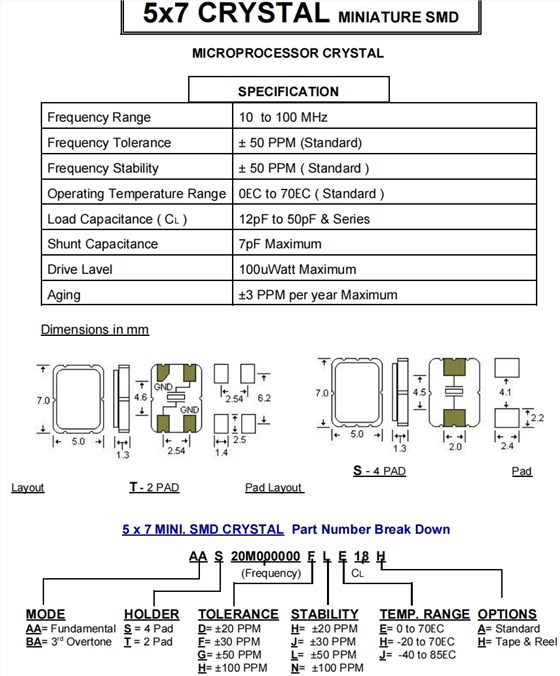

AAS50M000000FLE16H,7050mm,AA系列晶体,50MHZ,STD贴片晶振 参数表
| Frequency Range | 50 MHz | |||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||
| Aging | ±3 PPM per year Maximum | |||||||||

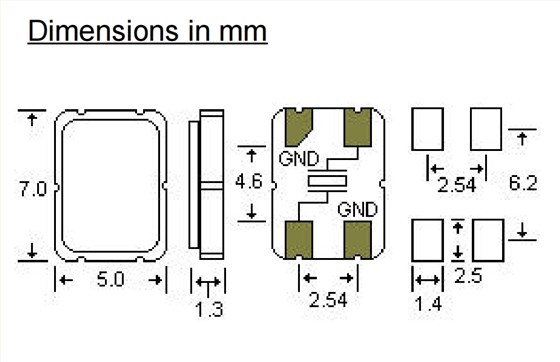

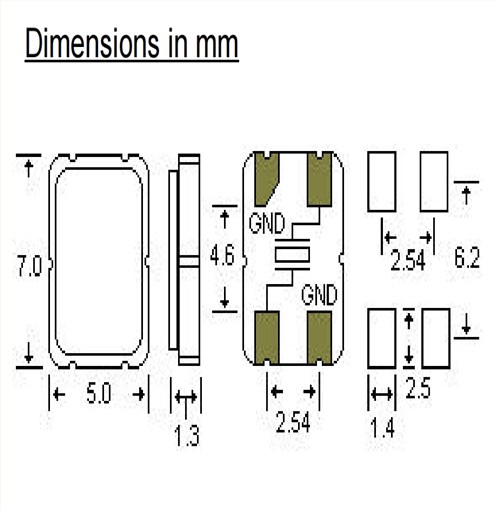

AAS50M000000FLE16H,7050mm,AA系列晶体,50MHZ,STD贴片晶振 尺寸图
