STD寻呼机晶振,6035mm,AAV27M000000FLH12H,27MHZ,欧美进口晶振,STD晶体谐振器,无源贴片晶振,无源晶振,6035mm小封装晶振,陶瓷晶振,27MHZ贴片晶振,水晶振动子,贴片陶瓷晶振,尺寸6.0x3.5mm,频率27MHZ,负载12pF,工作温度-20~+70℃,无铅晶振,耐高温晶振,低功耗晶振,高精度晶振,寻呼机晶振,多媒体设备晶振,微处理器晶振,数字电子晶振.
STD寻呼机晶振,6035mm,AAV27M000000FLH12H,27MHZ特点:
超薄型陶瓷谐振器尺寸6.0x3.5mm
优异的耐热性
通过无铅认证

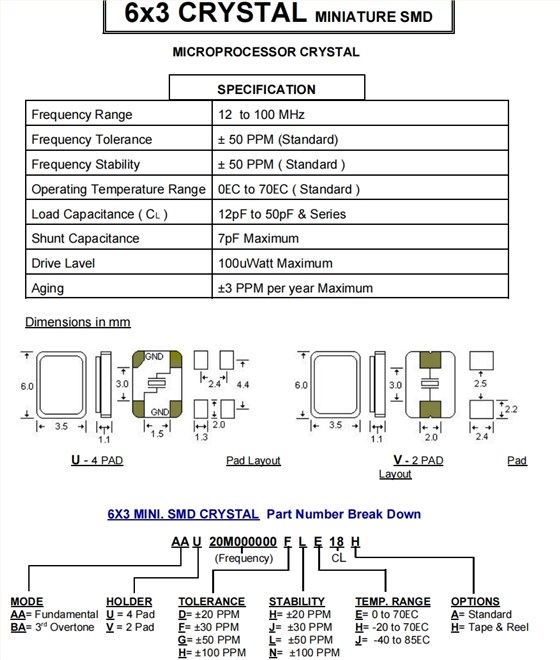

STD寻呼机晶振,6035mm,AAV27M000000FLH12H,27MHZ 参数表
| Frequency Range | 27 MHz | |||||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||||
| Aging | ±3 PPM per year Maximum | |||||||||||

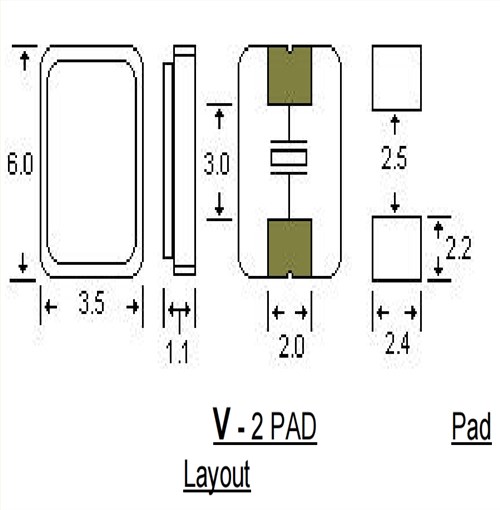

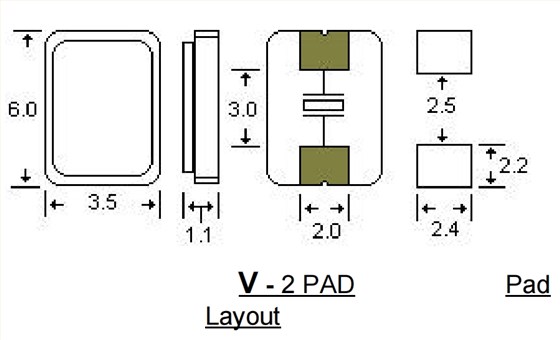

STD寻呼机晶振,6035mm,AAV27M000000FLH12H,27MHZ 尺寸图
