奥斯康利晶体,223系列晶振,223-000312-20,8038mm,32.768KHZ,美国进口晶振,Oscilent晶体谐振器,无源贴片晶振,水晶振动子,音叉晶体,8038mm贴片晶振,32.768KHZ时钟晶振,贴片无源晶振,陶瓷晶振,尺寸8.0x3.8mm,频率32.768KHZ,无铅晶振,高性能晶振,高精度晶振,实时时钟晶振,无线应用晶振,寻呼机晶振,数字显示晶振,电话机晶振.
奥斯康利晶体,223系列晶振,223-000312-20,8038mm,32.768KHZ特点:
低调,长期稳定性贴片晶振
行业标准占地面积,卓越的抗震性能
卓越的环境特性,磁带和卷轴
RoHs/无铅合规

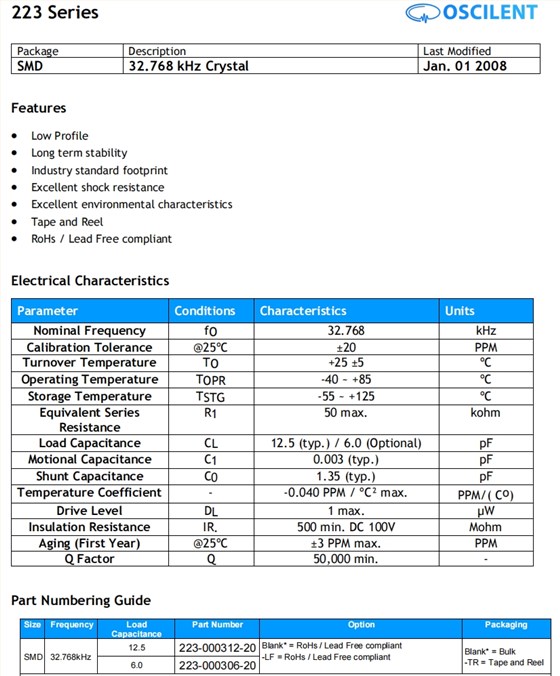

奥斯康利晶体,223系列晶振,223-000312-20,8038mm,32.768KHZ 参数表
| Parameter | Conditions | Characteristics | Units | |||||
| Nominal Frequency | fO | 32.768 | kHz | |||||
| Calibration Tolerance | @25ºC | ±20 | PPM | |||||
| Turnover Temperature | TO | +25 ±5 | ºC | |||||
| Operating Temperature | TOPR | -40 ~ +85 | ºC | |||||
| Storage Temperature | TSTG | -55 ~ +125 | ºC | |||||
|
Equivalent Series Resistance |
R1 | 50 max. | kohm | |||||
| Load Capacitance | CL | 12.5 (typ.) / 6.0 (Optional) | pF | |||||
| Motional Capacitance | C1 | 0.003 (typ.) | pF | |||||
| Shunt Capacitance | C0 | 1.35 (typ.) | pF | |||||
| Temperature Coefficient | - | -0.040 PPM / ºC² max. | PPM/( Co) | |||||
| Drive Level | DL | 1 max. | µW | |||||
| Insulation Resistance | IR. | 500 min. DC 100V | Mohm | |||||
| Aging (First Year) | @25ºC | ±3 PPM max. | PPM | |||||
| Q Factor | Q | 50,000 min. | - | |||||

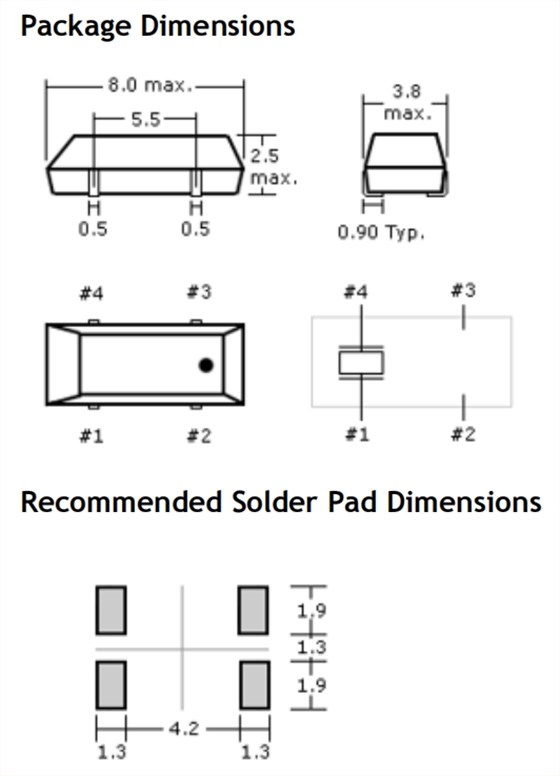

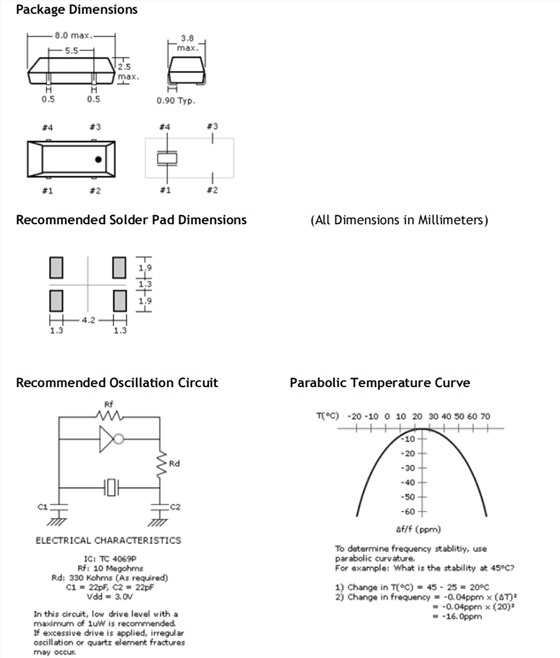

奥斯康利晶体,223系列晶振,223-000312-20,8038mm,32.768KHZ 尺寸图
