2012mm小体积晶振,TZ2065A,32.768KHZ手表晶振,台湾嘉硕TST晶体

产品简介

2012mm小体积晶振,TZ2065A,32.768KHZ手表晶振,台湾嘉硕TST晶体,台湾无源晶振,SMD晶体谐振器,轻薄型晶体,两脚贴片晶体,32.768K晶振,音叉晶体,2012mm贴片晶振,水晶振动子,尺寸2.0x1.2mm,频率32.768KHZ,负载12.5pF,高可靠晶振,高性能晶振,低损耗晶振,通信装置晶振,实时时钟晶振,MP4收音机晶振,计算机晶振,电子手表晶振.

产品详情

2012mm小体积晶振,TZ2065A,32.768KHZ手表晶振,台湾嘉硕TST晶体特点:

陶瓷接缝封装

卓越的可靠性性能

超微型封装无源晶体

可用于表面安装技术和红外回流工艺

表面安装的2.0mmx1.2mm晶体单元，用于通信装置.

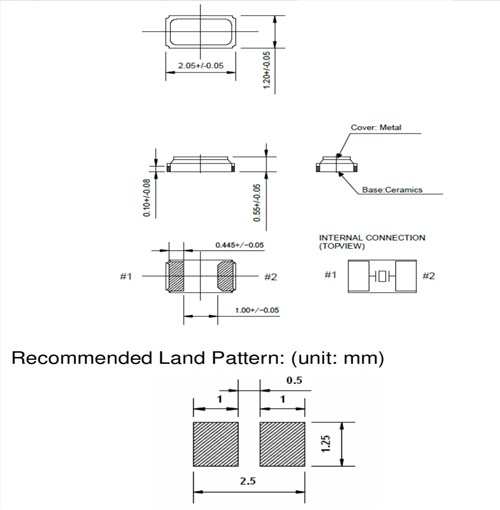

2012mm小体积晶振,TZ2065A,32.768KHZ手表晶振,台湾嘉硕TST晶体 参数表

TZ2065A	Specification
NominalFrequency	32.768000KHz
Storage TemperatureRange	-55°Cto+125°C
Operating TemperatureRange	-40°Cto+85°C
Turnover Temperature	25+/-5°C
Parabolic CurvatureConstant	-0.027ppm/°C2max.
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-3°C
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-3°C
EquivalentSeriesResistor(ESR)	90KΩmax.
ShuntCapacitance(Co)	2.0 pF Max.
DriveLevel	0.5uWmax.
LoadCapacitance(CL)	12.5pF
Aging	+/-3.0ppm/year@25°C
Marking	Lasermarking
InsulationResistance	500MΩmin atDC100V
