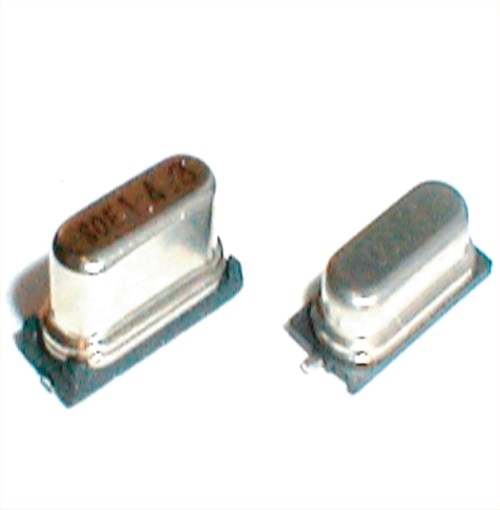

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ

产品简介

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ,美国富通晶振,进口石英晶振,大尺寸晶振,石英贴片晶振,水晶振动子,石英晶体谐振器,12MHZ无源晶振,SMD晶振,尺寸10.3*3.8mm,频率12MHZ,负载16pF,工作温度-40~+85°C,无铅环保晶振,低成本晶振,低损耗晶振,高性能晶振,高质量晶振,微处理器晶体,蜂窝电话晶振,无线局域网晶振,蓝牙晶振,室外基站晶振.

产品详情

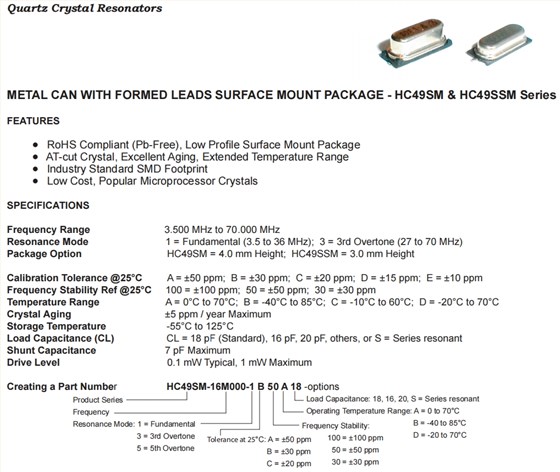

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ特点:

符合RoHS标准（无铅），薄型表面安装封装

AT切割晶体，出色的时效性，扩展的温度范围

行业标准SMD晶振封装

低成本、流行的微处理器晶体

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ 参数表

Frequency Range			12.000 MHz
Resonance Mode			1 = Fundamental (3.5 to 36 MHz);3 = 3rd Overtone (27 to 70 MHz)
Package Option			HC49SM = 4.0 mm Height;HC49SSM = 3.0 mm Height
Calibration Tolerance @25°C			A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C			100 = ±100 ppm;50 = ±50 ppm;30 = ±30 ppm
Temperature Range			A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Crystal Aging			±5 ppm / year Maximum
Storage Temperature			-55°C to 125°C
Load Capacitance (CL)			CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance			7 pF Maximum
Drive Level			0.1 mW Typical, 1 mW Maximum
