7050mm,耐尔晶振,NF7系列晶振,NF7-50.000-B-A-B-A-30,50MHZ

产品简介

7050mm,耐尔晶振,NF7系列晶振,NF7-50.000-B-A-B-A-30,50MHZ,美国进口晶振,美国NEL晶体,水晶振动子,轻薄型晶振,50MHZ石英晶振,无源石英晶体,7050mm微型晶振,石英晶体谐振器,贴片晶振,尺寸7.0×5.0mm,频率50MHZ,负载30pF,工作温度-20~+70°C,高可靠晶振,低功耗晶振,低损耗晶振,小型设备晶振,测试设备晶振,仪器仪表晶振,移动电话晶振.

产品详情

7050mm,耐尔晶振,NF7系列晶振,NF7-50.000-B-A-B-A-30,50MHZ特点:

符合NEL的要求产品可靠性

用户指定的公差可获得的

无引线陶瓷封装,适用于回流焊

石英晶振宽频率范围8.0MHz至80.0MHz

自动安装,抗冲击性：跌落试验在2mm不锈钢上3次75厘米高的板

玻璃密封

7050mm,耐尔晶振,NF7系列晶振,NF7-50.000-B-A-B-A-30,50MHZ 参数表

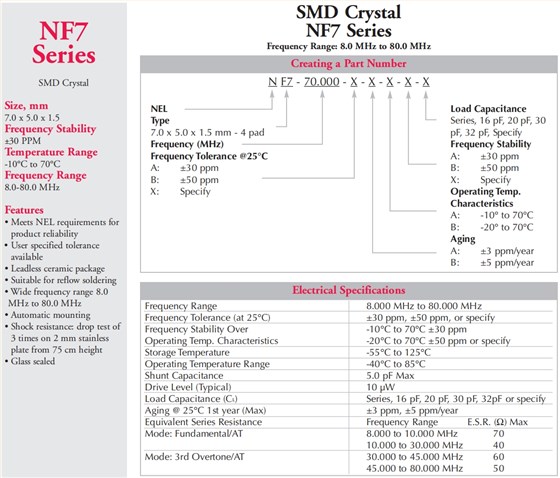

Electrical Specifications
Frequency Range							50.000 MHz
Frequency Tolerance (at 25°C)							±30 ppm, ±50 ppm, or specify
Frequency Stability Over Operating Temp. Characteristics							-10°C to 70°C ±30 ppm -20°C to 70°C ±50 ppm or specify
Storage Temperature							-55°C to 125°C
Operating Temperature Range							-40°C to 85°C
Shunt Capacitance							5.0 pF Max
Drive Level (Typical)							10 µW
Load Capacitance (CL)							Series, 16 pF, 20 pF, 30 pF, 32pF or specify
Aging @ 25°C 1st year (Max)							±3 ppm, ±5 ppm/year
Equivalent Series Resistance							Frequency RangeE.S.R. (Ω) Max
Mode: Fundamental/AT							8.000 to 10.000 MHz70 10.000 to 30.000 MHz40
Mode: 3rd Overtone/AT							30.000 to 45.000 MHz60 45.000 to 80.000 MHz50
