7050mm,XCB75系列晶体,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振

产品简介

7050mm,XCB75系列晶体,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振,石英贴片晶振,欧美进口晶振,石英晶振,Fortiming Crystal,无源晶体,石英晶体谐振器,水晶振动子,四脚贴片晶振,8MHZ谐振器,7050mm贴片晶振,尺寸7.0×5.0mm,频率8MHZ,负载16pF,工作温度-10~+60°C,低频晶振,环保晶振,高性能晶振,低老化晶振,移动通信晶振,无线晶振,电子设备晶振,数码相机晶振.

产品详情

7050mm,XCB75系列晶体,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振,石英贴片晶振,欧美进口晶振,石英晶振,FortimingCrystal,无源晶体,石英晶体谐振器,水晶振动子,四脚贴片晶振,8MHZ谐振器,7050mm贴片晶振,尺寸7.0×5.0mm,频率8MHZ,负载16pF,工作温度-10~+60°C,低频晶振,环保晶振,高性能晶振,低老化晶振,移动通信晶振,无线晶振,电子设备晶振,数码相机晶振.

7050mm,XCB75系列晶体,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振特点:

符合RoHS（无铅），重要低频范围

AT切割石英晶振，真空密封，具有优异的老化性能，扩展的温度范围

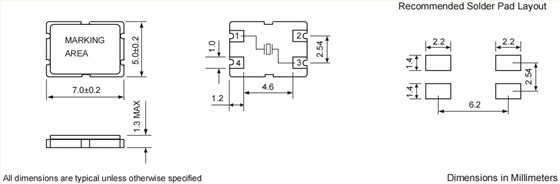

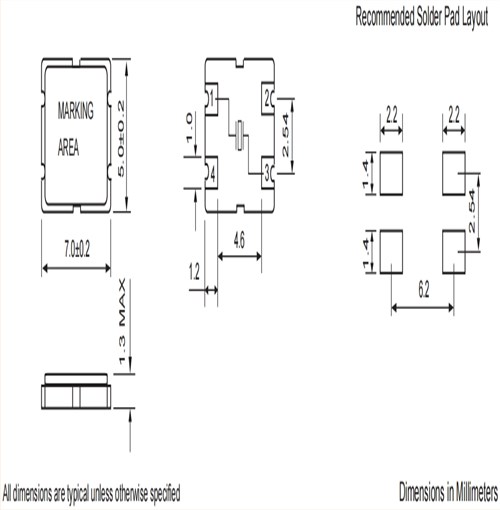

行业标准占地面积，紧凑尺寸（7x5mm），最大高度1.3mm

卓越的可焊性

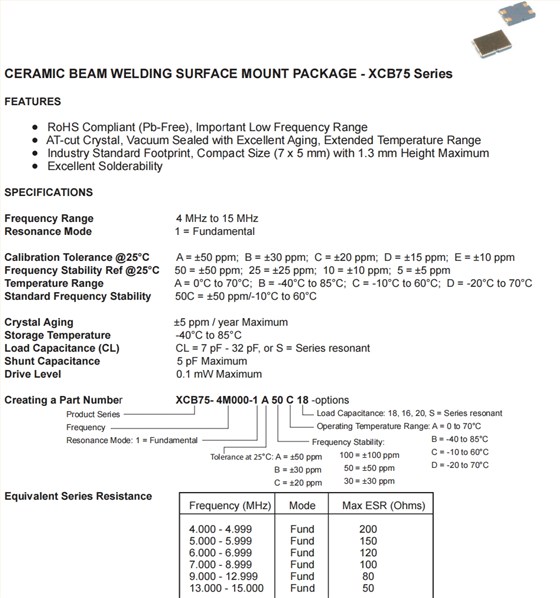

7050mm,XCB75系列晶体,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振 参数表

Frequency Range			8 MHz
Resonance Mode			1 = Fundamental
Calibration Tolerance @25°C			A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C			50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm;5 = ±5 ppm
Temperature Range			A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Standard Frequency Stability			50C = ±50 ppm/-10°C to 60°C
Crystal Aging			±5 ppm / year Maximum
Storage Temperature			-40°C to 85°C
Load Capacitance (CL)			CL = 7 pF - 32 pF, or S = Series resonant
Shunt Capacitance			5 pF Maximum
Drive Level			0.1 mW Maximum
