频率：30MHZ
尺寸：5.0x3.2mm
FMI石英振动子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm,欧美进口晶振,FMI晶体谐振器,轻薄型晶振,5032mm无源晶振,石英贴片晶振,30MHZ石英晶体,四脚贴片晶振,尺寸5.0x3.2mm,频率30MHZ,工作温度-20~+70°C,低损耗晶振,低耗能晶振,高品质晶振,高性能晶振,娱乐设备晶振,数字电子晶振,移动电话晶振,无线应用晶振.
FMI石英振动子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm特点:
表面贴装陶瓷组件。
Micro 5 x 3.2/超薄贴片晶振
高可靠性
紧密稳定性

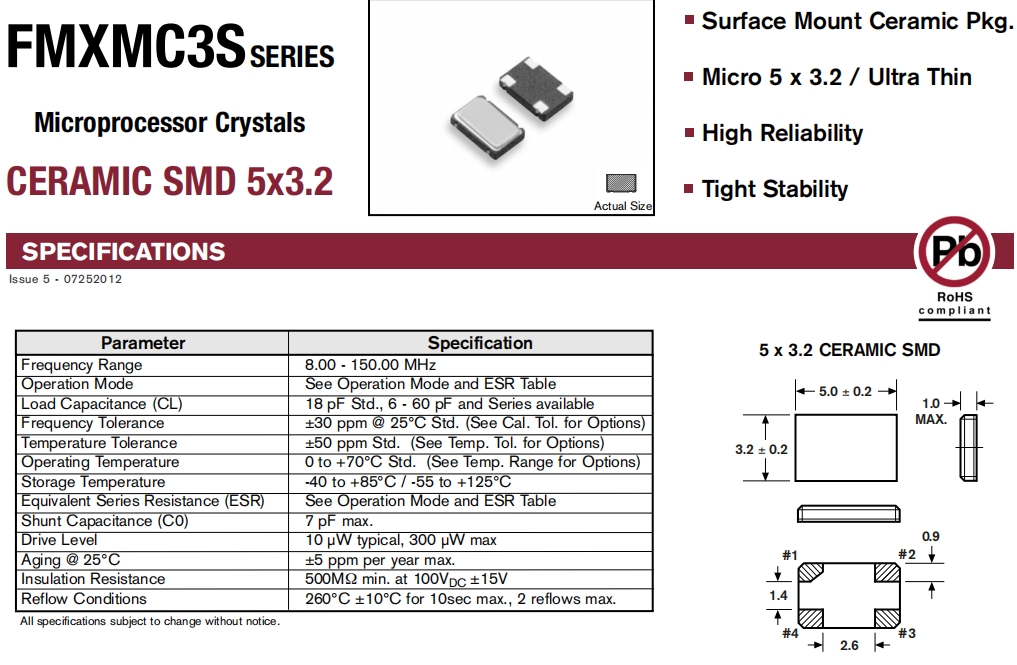

FMI石英振动子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm 参数表
| Parameter | Specification | ||||||||||||||
| Frequency Range | 30.00 MHz | ||||||||||||||

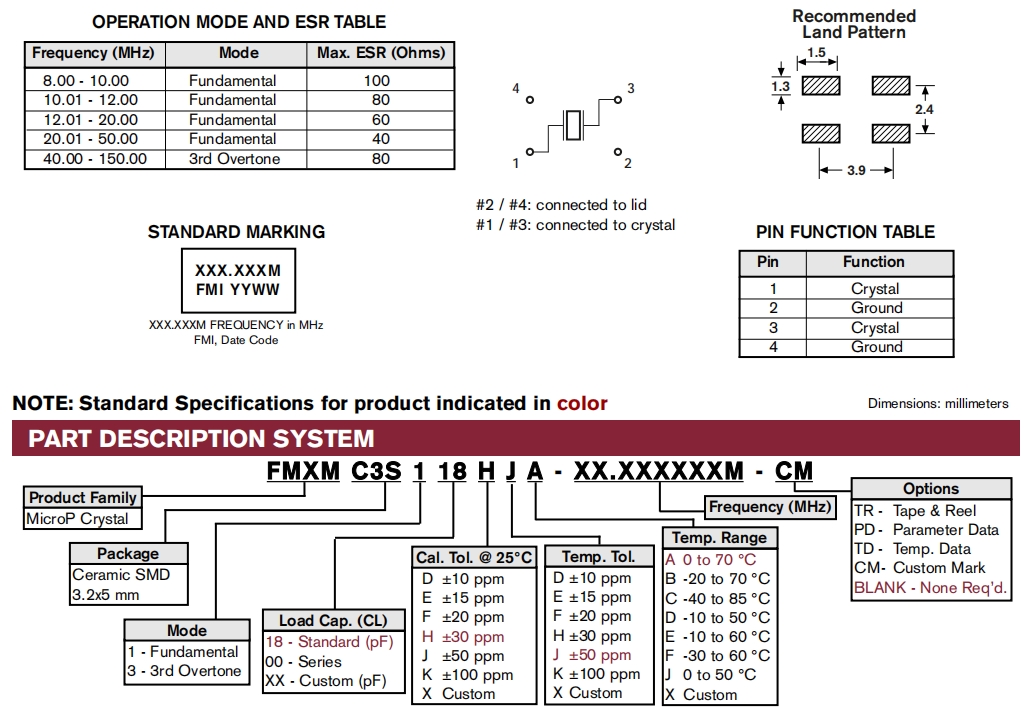

| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | ||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | ||||||||||||||
| Temperature Tolerance | ±50 ppm Std. (See Temp. Tol. for Options) | ||||||||||||||
| Operating Temperature | 0 to +70°C Std. (See Temp. Range for Options) | ||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | ||||||||||||||
| Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | ||||||||||||||
| Insulation Resistance | 500MΩ min. at 100V DC±15V | ||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. |

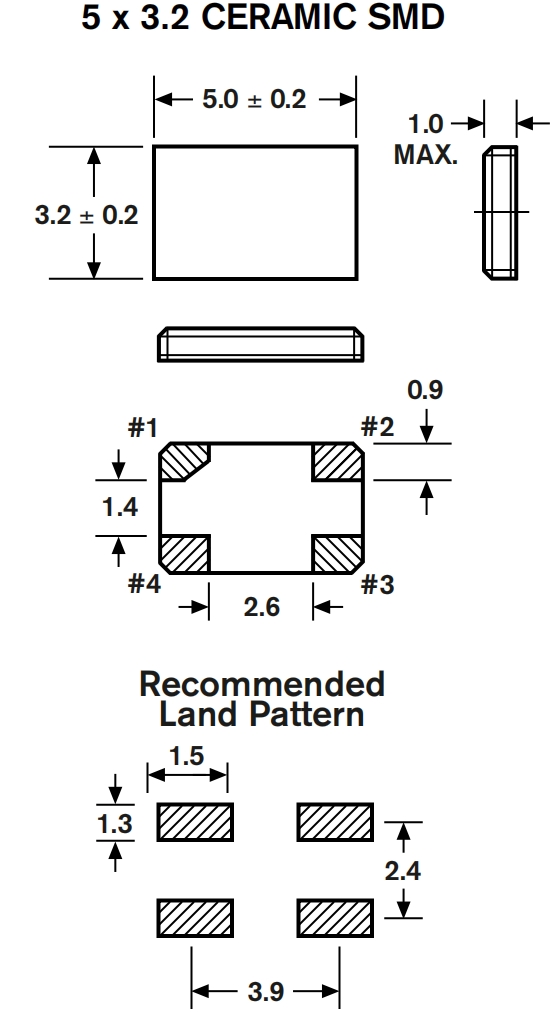

FMI石英振动子,FMXMC3S118HFB-30.000000M-CM,FMXMC3S系列,5032mm 尺寸图
