5032mm温补晶振,405系列振荡器,MTI-milliren米利伦晶振

产品简介

5032mm温补晶振,405系列振荡器,MTI-milliren米利伦晶振，尺寸5.0x3.2mm，频率10~40MHZ，加拿大米利伦晶体，欧美进口晶振，MTI-milliren温补振荡器，TCXO温补晶振，温度补偿晶体振荡器，5032mm温补晶振，贴片温度振荡器，有源温补晶振，无线路由器有源晶振，GPS全球定位有源晶振，测试测量有源晶振，多媒体设备有源晶振，可视化智能家居有源晶振，6G基站有源晶振，低相位有源晶振，低相噪有源晶振，低功耗有源晶振，低耗能有源晶振，低电压有源晶振，具有低相位低相噪的特点。

TCXO晶振产品适合用于无线路由器，GPS全球定位，测试测量，多媒体设备，可视化智能家居，6G基站等应用。5032mm温补晶振,405系列振荡器,MTI-milliren米利伦晶振.

产品详情

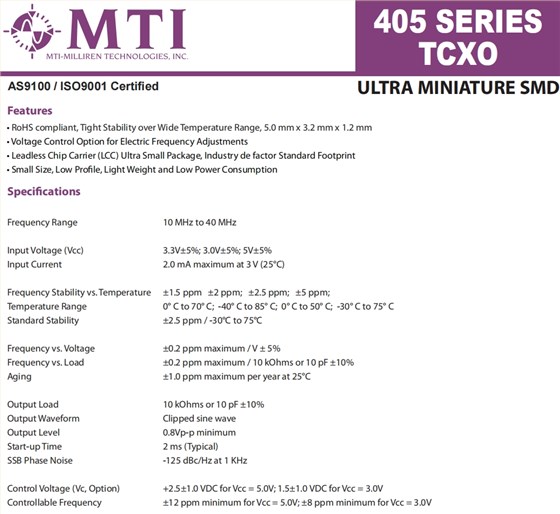

5032mm温补晶振,405系列振荡器,MTI-milliren米利伦晶振 参数表

Frequency Range			10 MHz to 40 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 5V±5% 2.0 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±1.5 ppm±2 ppm;±2.5 ppm;±5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;0° C to 50° C;-30° C to 75° C ±2.5 ppm / -30°C to 75°C
Standard Stability
Frequency vs. Voltage			±0.2 ppm maximum / V ± 5%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 2 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-125 dBc/Hz at 1 KHz
Control Voltage (Vc, Option)			+2.5±1.0 VDC for Vcc = 5.0V; 1.5±1.0 VDC for Vcc = 3.0V
Controllable Frequency			±12 ppm minimum for Vcc = 5.0V; ±8 ppm minimum for Vcc = 3.0V
