GED小尺寸振荡器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振,欧美进口晶振,有源晶体振荡器,OSC振荡器,6035mm有源晶振,SMD振荡器,30MHZ时钟振荡器,有源贴片晶振,尺寸6.0x3.5mm,频率30MHZ,低电压晶振,低功耗晶振,低相位晶振,微波通信晶振,空中雷达晶振,测试设备晶振,医疗设备晶振,物联网晶振.
GED小尺寸振荡器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振特点:
表面安装时钟石英晶体振荡器
HCMOS/TTL输出
3.3V和5.0V电源电压
陶瓷SMD封装
GED小尺寸振荡器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振 参数表
| ELECTRICAL SPECIFICATIONS | |||||
| Description | SMD600 | SMD600.3 | |||
| Frequency Range | 30MHz | 0.5 to 125MHz | |||
| Frequency Stability | ±50ppm±100ppm | ||||
| Operating Temperature Range | 0°Cto+70°C | ||||
| Storage Temperature Range | -55 ~ +125°C | ||||
| Input Voltage | 5.0VDC±10% | 3.3VDC±10% | |||
| Input Current | 10mA to 60mA | ||||
| Symmetry | 50±10% Standard,50±5% Available | ||||
| Rise Time / Fall Time |
10nSeconds (0.5 ~ 40.000MHz) 6nSeconds (50.0 ~ 100.000MHz) |
||||
| Output Load | 10TTL or 15pF HCMOS | ||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | ||||

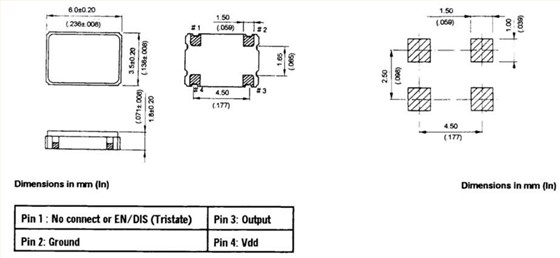

GED小尺寸振荡器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振 尺寸图
