404系列晶体,MTI-milliren有源振荡器,7050mm,TCXO晶振

产品简介

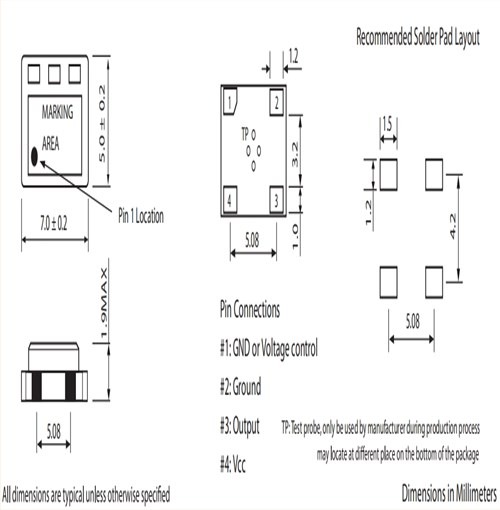

404系列晶体,MTI-milliren有源振荡器,7050mm,TCXO晶振，尺寸7.0×5.0mm，频率范围10~27MHZ，产品特点：无引线芯片载体（LCC）超小型封装，行业标准封装，体积小、利润低、重量轻、功耗低，温补晶体振荡器，米利伦温补晶振，有源温补振荡器，TCXO温补晶振，7050mm微型温补晶振，贴片温补晶振，低电压有源晶振，低功耗有源晶振，低耗能有源晶振，低相位有源晶振，低相位有源晶振，导航定位有源晶振，仪器设备有源晶振，测试测量有源晶振，室外基站有源晶振，微波通信专用有源晶振，物联网有源晶振，具有体积小低成本低电压的特点，有源晶振产品很适合用于导航定位，仪器设备，测试测量，室外基站，微波通信，物联网等应用领域。404系列晶体,MTI-milliren有源振荡器,7050mm,TCXO晶振.

产品详情

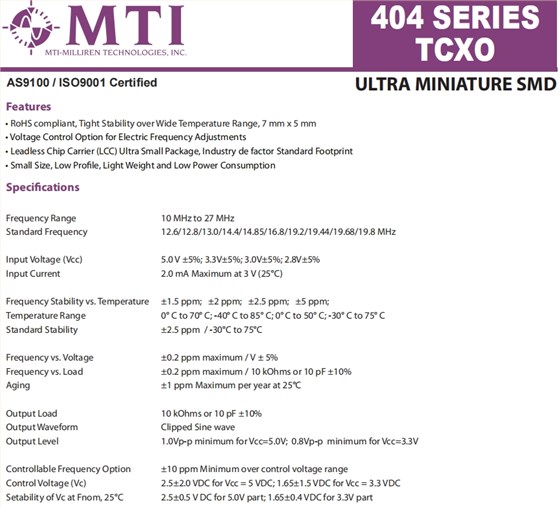

404系列晶体,MTI-milliren有源振荡器,7050mm,TCXO晶振 参数表

Frequency Range			10 MHz to 27 MHz
Standard Frequency			12.6/12.8/13.0/14.4/14.85/16.8/19.2/19.44/19.68/19.8 MHz 5.0 V ±5%; 3.3V±5%; 3.0V±5%; 2.8V±5%
Input Voltage (Vcc)
Input Current			2.0 mA Maximum at 3 V (25°C)
Frequency Stability vs. Temperature			±1.5 ppm;±2 ppm;±2.5 ppm;±5 ppm;
Temperature Range			0° C to 70° C; -40° C to 85° C; 0° C to 50° C; -30° C to 75° C ±2.5 ppm / -30°C to 75°C
Standard Stability
Frequency vs. Voltage			±0.2 ppm maximum / V ± 5%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1 ppm Maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped Sine wave
Output Waveform
Output Level			1.0Vp-p minimum for Vcc=5.0V;0.8Vp-pminimum for Vcc=3.3V ±10 ppm Minimum over control voltage range
Controllable Frequency Option
Control Voltage (Vc)			2.5±2.0 VDC for Vcc = 5 VDC; 1.65±1.5 VDC for Vcc = 3.3 VDC 2.5±0.5 V DC for 5.0V part; 1.65±0.4 VDC for 3.3V part
Setability of Vc at Fnom, 25°C
