频率：12MHZ
尺寸：10.3*3.8mm
HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ,美国富通晶振,进口石英晶振,大尺寸晶振,石英贴片晶振,水晶振动子,石英晶体谐振器,12MHZ无源晶振,SMD晶振,尺寸10.3*3.8mm,频率12MHZ,负载16pF,工作温度-40~+85°C,无铅环保晶振,低成本晶振,低损耗晶振,高性能晶振,高质量晶振,微处理器晶体,蜂窝电话晶振,无线局域网晶振,蓝牙晶振,室外基站晶振.
HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ特点:
符合RoHS标准（无铅），薄型表面安装封装
AT切割晶体，出色的时效性，扩展的温度范围
行业标准SMD晶振封装
低成本、流行的微处理器晶体
HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ 参数表
| Frequency Range | 12.000 MHz | ||
| Resonance Mode | 1 = Fundamental (3.5 to 36 MHz); 3 = 3rd Overtone (27 to 70 MHz) | ||
| Package Option | HC49SM = 4.0 mm Height; HC49SSM = 3.0 mm Height | ||
| Calibration Tolerance @25°C | A = ±50 ppm; B = ±30 ppm; C = ±20 ppm; D = ±15 ppm; E = ±10 ppm | ||
| Frequency Stability Ref @25°C | 100 = ±100 ppm; 50 = ±50 ppm; 30 = ±30 ppm | ||
| Temperature Range | A = 0°C to 70°C; B = -40°C to 85°C; C = -10°C to 60°C; D = -20°C to 70°C | ||
| Crystal Aging | ±5 ppm / year Maximum | ||
| Storage Temperature | -55°C to 125°C | ||
| Load Capacitance (CL) | CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant | ||
| Shunt Capacitance | 7 pF Maximum | ||
| Drive Level | 0.1 mW Typical, 1 mW Maximum | ||

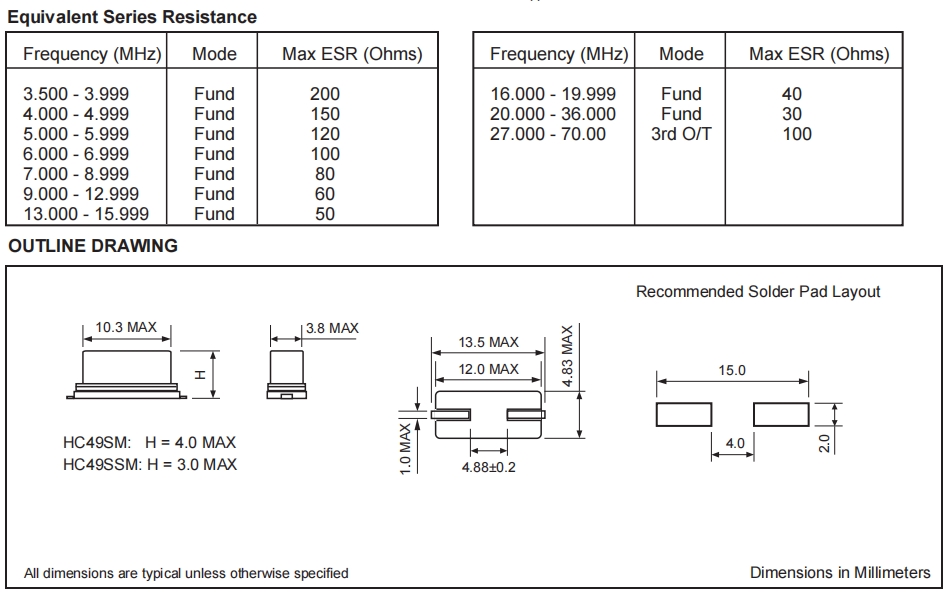

HC49SM-12M000-1C50B16,Fortiming石英晶振,HC49SM系列晶振,12MHZ 尺寸图
