TZ2528A,32.768KHZ,2012mm两脚贴片晶振,台湾TST晶振,嘉硕小体积晶振,TST晶体,台湾无源晶振,TST CRYSTAL,TZ2528A贴片晶振,32.768KHZ晶振,2012超小型晶振,无源贴片晶振,SMD晶振,尺寸2.0x1.2mm,频率32.768KHZ,高可靠晶振,高品质晶振,低损耗晶振,无铅晶振,低老化晶振,实时时钟晶振,智能水表晶振,通信装置晶振,蓝牙耳机晶振.
TZ2528A,32.768KHZ,2012mm两脚贴片晶振,台湾TST晶振特点:
32.768K晶振陶瓷接缝封装,卓越的可靠性性能
超微型封装,可用于表面安装技术和红外回流工艺
表面安装的2.0mmx1.2mm晶体单元，用于通信装置.
TZ2528A,32.768KHZ,2012mm两脚贴片晶振,台湾TST晶振 参数表
        TZ2528A
|
Specification |
| NominalFrequency | 32.768000KHz |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -40°Cto+85°C |
| Turnover Temperature | 25+/-5°C |
| Parabolic CurvatureConstant | -0.04ppm/°C2max. |
| FrequencyMakeTolerance(FL) |
+/-20 ppm@25°C+/-3°C 90KΩmax. |
| EquivalentSeriesResistor(ESR) | 70kΩmax. |
| LoadCapacitance(CL) |
5.0+/-1.0 fF |
| ShuntCapacitance(Co) |
1.3+/-0.3 PF |
| DriveLevel | 0.5uWmax. |
| Aging | +/-3.0ppm/year@25°C |
| InsulationResistance | 500MΩmin atDC100V |
| Marking | Lasermarking |

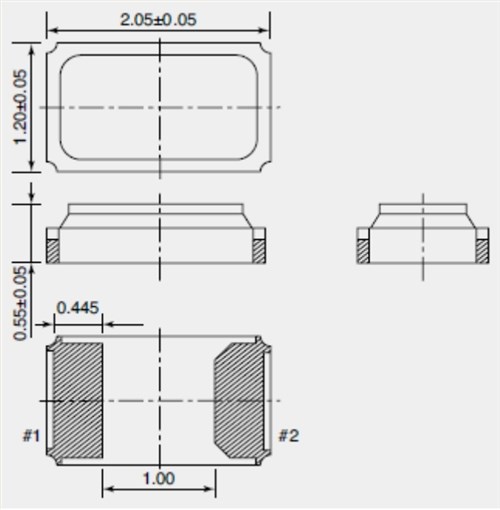

TZ2528A,32.768KHZ,2012mm两脚贴片晶振,台湾TST晶振 尺寸图
