频率:10MHZ
尺寸:5.0x3.2mm

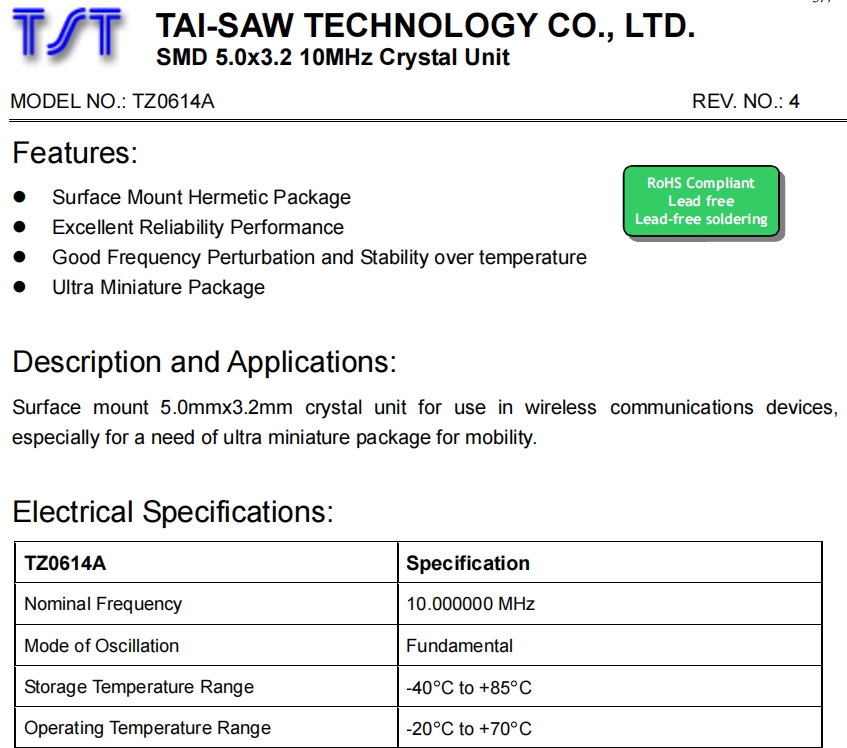

5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振特点:
表面安装密封包,卓越的可靠性性能
良好的频率扰动和温度稳定性,超微型包
表面安装5.0mmx3.2mm贴片无源晶振单元用于无线通信设备
特别是需要超微型封装的移动。
5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振 参数表
TZ0614A | Specification |
Nominal Frequency | 10.000 MHZ |
Mode of Operation | Fundamental |
Storage Temperature Range | -55°C to +125°C |
Operating Temperature Range | -20°C to +70°C |

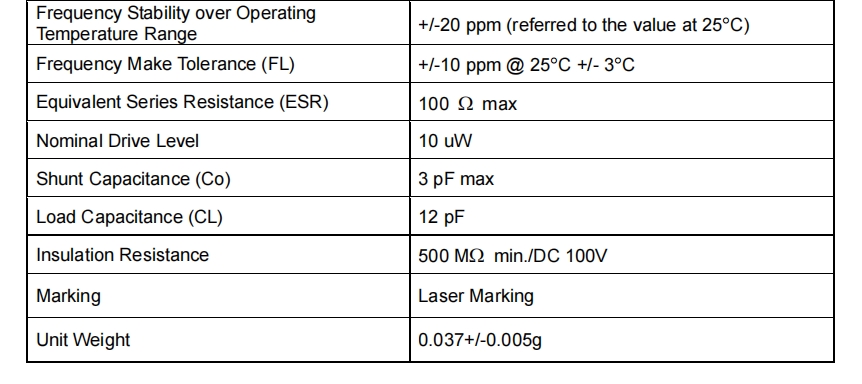

Frequency Stability over Operating Temperature Range |
+/-20ppm(referrend to the value ai 25°C) |
Frequency Make Tolerance (FL) | +/-10 ppm @ 25°C +/- 3°C |
Equivalent Series Resistor (ESR) | 100 Ω max. |
Nominal Drive Level | 10uW |
Shunt Capacitance (Co) | 3.0 pF max |
Load Capacitance (CL) | 12.5 pF |
Insulation Resistance | 500M Ω min at DC 100V |
Marking |
Laser marking |

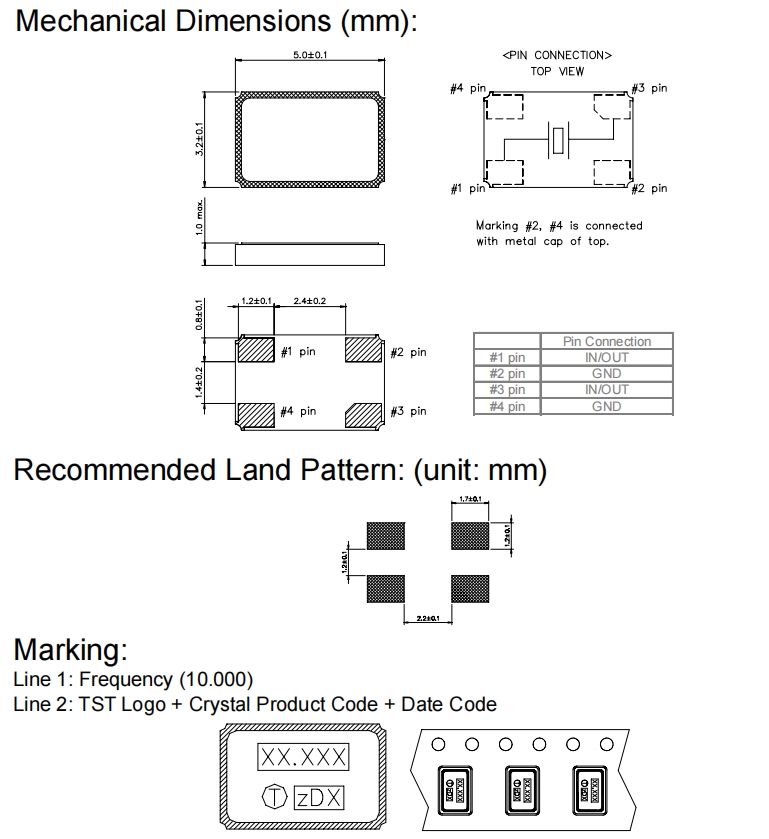

5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振 尺寸图
