VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通讯晶振

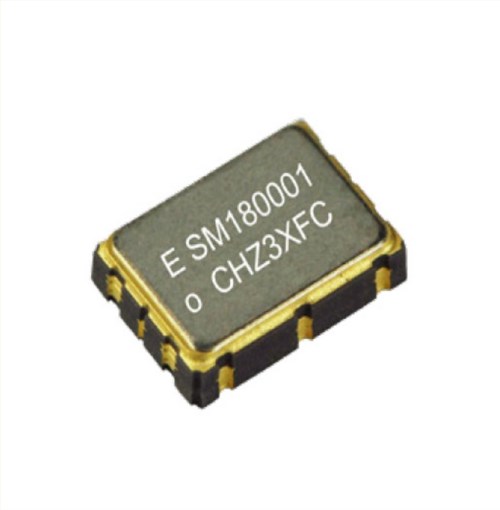

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通讯晶振，日本进口晶振，EPSON爱普生株式会社，型号：VG7050ECN，编码为：X1G004561100500，频率为：622.080000MHz，小体积晶振尺寸：7.0x5.0x1.5mm封装，10脚贴片晶振，LV-PECL输出差分晶振，可编程电压控制振荡器（VCXO），压控晶振，石英晶体振荡器，石英晶振，有源晶振，能够轻易识别网络信号以及精确的处理双极信号。具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低相位噪声，低电平，满足产品低消耗电流的特点。7050贴片晶振被广泛应用于：通讯设备、机顶盒、无线网络，蓝牙模块，光端机、6GWIFI，安防设备、路由器/交换机、仪器仪表、光纤通信，10G以太网，消费电子等应用。

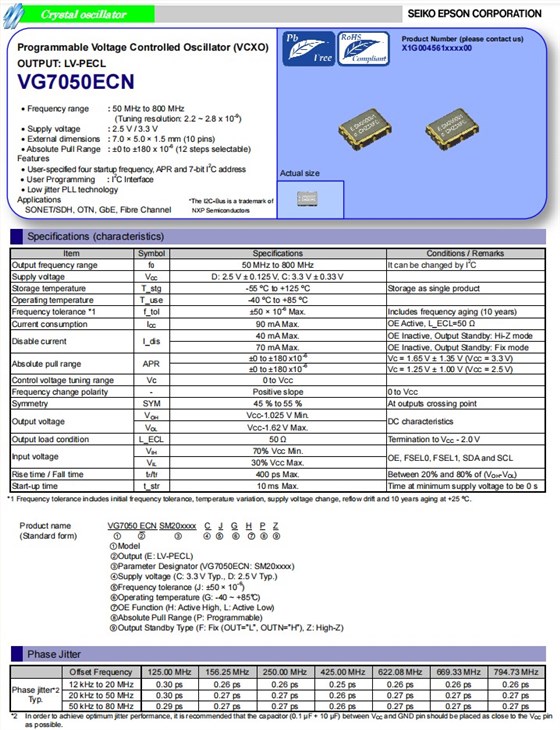

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通讯晶振参数表

Item	Symbol	VG7050ECN	Conditions / Remarks
Output frequency range	f0	622.080000MHz	It can be changed by I2C
Supply voltage	VCC	D:2.5V ±0.125V
Supply voltage	VCC	C:3.3V ±0.33V
Storage temperature	T_stg	-55°C to +125°C	Storage as single product
Operating temperature	T_use	G:-40°C to +85°C,
Frequency tolerance*1	f_tol	J: ± 50 × 10-6Max	Includes frequency aging (10 years)
Current consumption	ICC	90 mA Max.	OE Active,
Current consumption	ICC	90 mA Max.	L_ECL=50Ω
Disable current	I_dis	40mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70mA Max.	OE Inactive, Output Standby: Fix mode
Absolute pull range	APR	±0~±180 x 10-6	Vc = 1.65 V ± 1.35 V
		±0~±180 x 10-6	(VCC= 3.3 V)
		±0~±180 x 10-6	Vc = 1.25 V ± 1.00 V
		±0~±180 x 10-6	(VCC= 2.5 V)
Control voltage tuning range	Vc	0~Vcc
Frequency change polarity	-	Positive slope
Symmetry	SYM	45% ~ 55%	At outputs crossing point
Output voltage	VOH	VCC-1.025 V Min.	DC characteristics
Output voltage	VOL	VCC-1.62 V Max.	DC characteristics
Output load condition	L_ECL	50Ω	Termination to VCC-2.0V
Input voltage	VIH	70% VCCMin.	OE, FSEL0, FSEL1, SDA, and SCL
Input voltage	VIL	30% VCCMax.	OE, FSEL0, FSEL1, SDA, and SCL
Rise time / Fall time	tr / tf	400 ps Max.	20% ~ 80% (VOH- VOL)
Start-up time	t_str	10 ms Max.	Time at minimum supply voltage to be 0 s

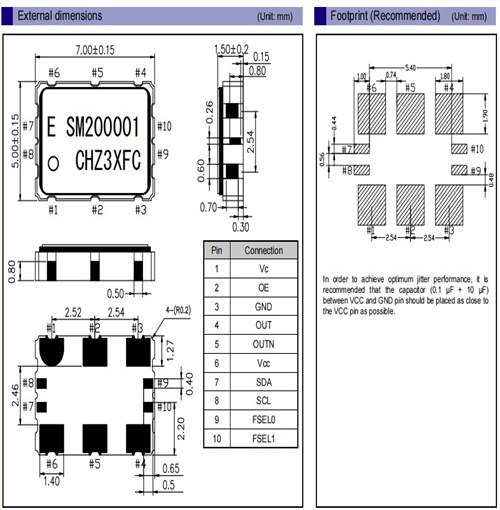

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通讯晶振尺寸图

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通讯晶振

产品特点：

频率范围： 50MHz到800MHz（调谐分辨率： 2.2~2.8x10-9）

电源电压： 2.5V / 3.3V

外部尺寸： 7.0×5.0×1.5毫米（10引脚）有源晶振

绝对拉范围： ±0到±180 x 10-6（12步可选）功能

用户指定的四个启动频率，4月和7位I2C地址

用户编程： I2C接口

低抖动PLL技术

应用：超声波/SDH，OTN，GbE，光纤通道
