3215mm薄型晶振,TZ1006A,台湾嘉硕晶振,32.768KHZ时钟晶振

产品简介

3215mm薄型晶振,TZ1006A,台湾嘉硕晶振,32.768KHZ时钟晶振,TST无源晶体,音叉晶体,两脚贴片晶振,水晶振动子,SMD晶体谐振器,无源贴片晶振,32.768K晶振,SMD晶体,3215mm贴片晶振,尺寸3.2x1.5mm,频率32.768KHZ,环保晶振,低功耗晶振,高性能晶振,高质量晶振,通信设备晶振,移动电话晶振,小型设备晶振,数字电子晶振,智能手表晶振,数字显示晶振.

产品详情

3215mm薄型晶振,TZ1006A,台湾嘉硕晶振,32.768KHZ时钟晶振特点:

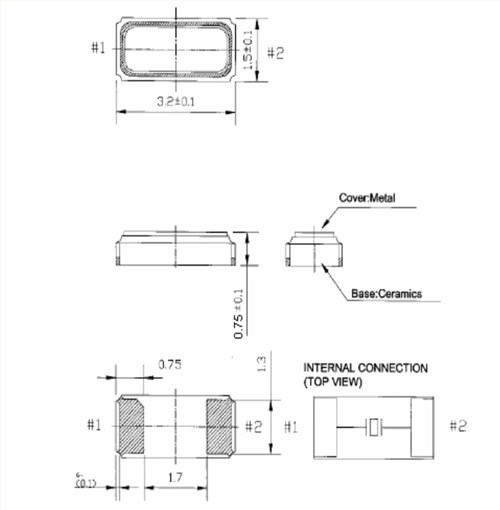

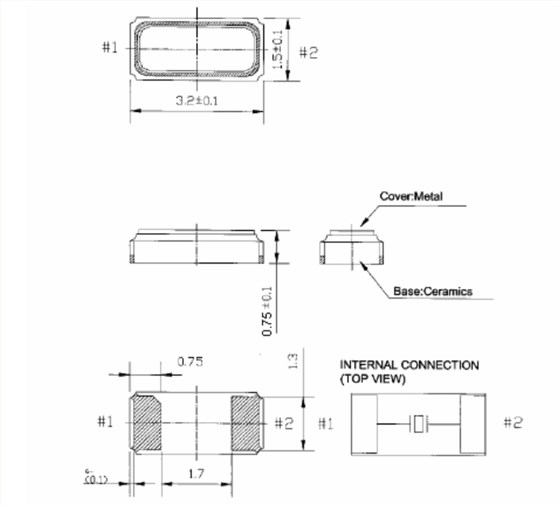

表面安装3.2mmx1.5mm无源晶体单元

陶瓷接缝焊接包装或陶瓷玻璃密封包装

卓越的可靠性性能

超小型封装

可用于表面安装技术和IR回流工艺

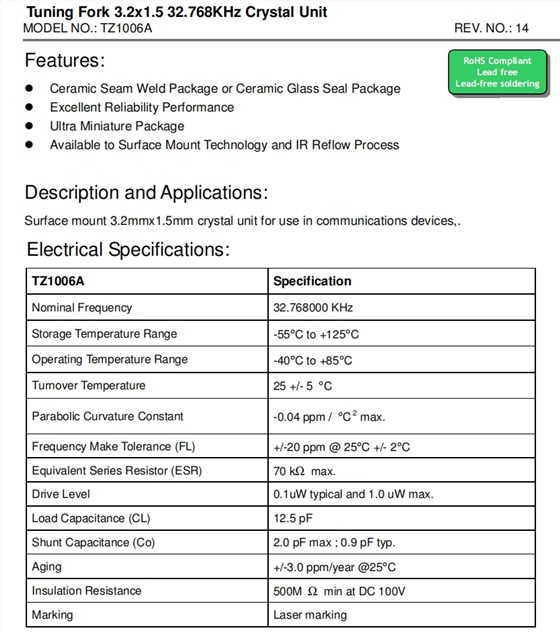

3215mm薄型晶振,TZ1006A,台湾嘉硕晶振,32.768KHZ时钟晶振 参数表

TZ1006A	Specification
NominalFrequency	32.768000KHz
Storage TemperatureRange	-55°Cto+125°C
Operating TemperatureRange	-40°Cto+85°C
Turnover Temperature	25+/-5 °C
Parabolic CurvatureConstant	-0.04ppm/ °C2 max.
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-2°C
EquivalentSeriesResistor(ESR)	70kΩmax.
DriveLevel	0.1uWtypicaland1.0uWmax.
LoadCapacitance(CL)	12.5pF
ShuntCapacitance(Co)	2.0 pFmax;0.9pF typ.
Aging	+/-3.0ppm/year@25°C
InsulationResistance	500MΩ min atDC100V

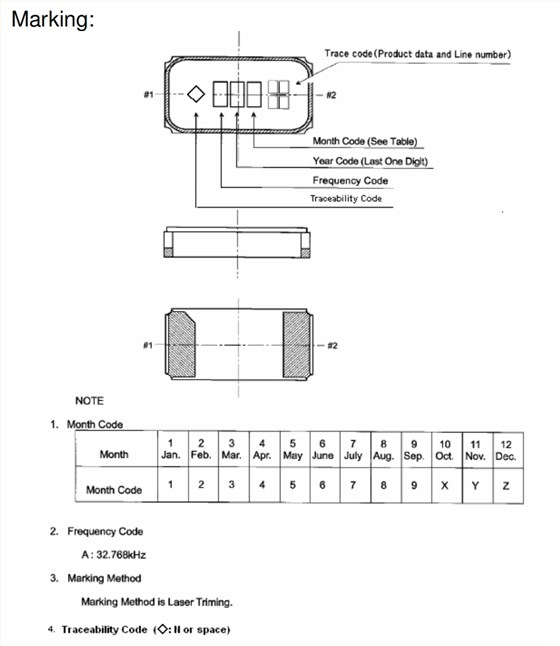

Marking	Lasermarking
