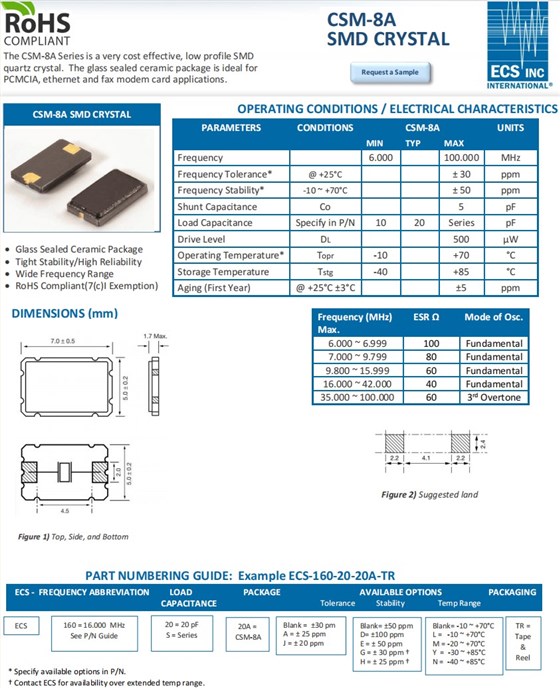

ECS-360-S-20A-F-TR,ECS无源晶振,CSM-8A,以太网晶振，美国进口晶振，伊西斯晶振，ECS晶振，型号：CSM-8A，编码为：ECS-360-S-20A-F-TR，频率：36MHz，工作温度范围：-10℃至+70℃，小体积晶振尺寸：7.0x5.0x1.7mm陶瓷SMD晶振，两脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，陶瓷晶振，无铅晶振。具有超小型，轻薄型，高可靠性，高质量，高品质等特点。符合RoHS，CSM-8A系列是一种非常经济有效的，低轮廓的SMD石英晶体。玻璃密封陶瓷封装是理想的PCMCIA，以太网和传真调制解调器卡的应用。
ECS-360-S-20A-F-TR,ECS无源晶振,CSM-8A,以太网晶振,参数表
| PARAMETERS | CONDITIONS | CSM-8A | UNITS | ||||||||||||||||
| MIN | TYP | MAX | |||||||||||||||||
| Frequency | 36 | |
MHz | ||||||||||||||||
| Frequency Tolerance* | @ +25°C | ± 30 | ppm | ||||||||||||||||
| Frequency Stability* | -10 ~ +70°C | ± 50 | ppm | ||||||||||||||||
| Shunt Capacitance | Co | 5 | pF | ||||||||||||||||
| Load Capacitance | Specify in P/N | 10 | 20 | Series | pF | ||||||||||||||
| Drive Level | DL | 500 | µW | ||||||||||||||||
| Operating Temperature* | Topr | -10 | +70 | °C | |||||||||||||||
| Storage Temperature | Tstg | -40 | +85 | °C | |||||||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | ||||||||||||||||
ECS-360-S-20A-F-TR,ECS无源晶振,CSM-8A,以太网晶振,尺寸图
| 石英晶体谐振器 | 厂家 | 型号 | 频率 | 工作温度 |
| ECS-80-20-20A-TR | ECS晶振 | CSM-8A | 8MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS晶振 | CSM-8A | 24MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS晶振 | CSM-8A | 10MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS晶振 | CSM-8A | 40MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS晶振 | CSM-8A | 20MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS晶振 | CSM-8A | 32MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS晶振 | CSM-8A | 12MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS晶振 | CSM-8A | 9.8304MHz | -10°C ~ 70°C |
| ECS-110.5-S-20A-TR | ECS晶振 | CSM-8A | 11.0592MHz | -10°C ~ 70°C |
| ECS-147.4-S-20A-TR | ECS晶振 | CSM-8A | 14.7456MHz | -10°C ~ 70°C |
| ECS-184-S-20A-TR | ECS晶振 | CSM-8A | 18.432MHz | -10°C ~ 70°C |
| ECS-200-20-20A-TR | ECS晶振 | CSM-8A | 20MHz | -10°C ~ 70°C |
| ECS-240-S-20A-TR | ECS晶振 | CSM-8A | 24MHz | -10°C ~ 70°C |
| ECS-240.0014S20A-TR | ECS晶振 | CSM-8A | 24.00014MHz | -10°C ~ 70°C |
| ECS-360-S-20A-F-TR | ECS晶振 | CSM-8A | 36MHz | -10°C ~ 70°C |
| ECS-400-S-20A-F-TR | ECS晶振 | CSM-8A | 40MHz | -10°C ~ 70°C |
| ECS-160-20-20A-TR | ECS晶振 | CSM-8A | 16MHz | -10°C ~ 70°C |
| ECS-403.2-S-20A-TR | ECS晶振 | CSM-8A | 40.32MHz | -10°C ~ 70°C |
| ECS-300-S-20A-F-TR | ECS晶振 | CSM-8A | 30MHz | -10°C ~ 70°C |
| ECS-110.5-20-20A-TR | 进口晶振 | CSM-8A | 11.0592MHz | -10°C ~ 70°C |
| ECS-120-S-20A-TR | ECS晶振 | CSM-8A | 12MHz | -10°C ~ 70°C |
| ECS-320-S-20A-TR | ECS晶振 | CSM-8A | 32MHz | -10°C ~ 70°C |
| ECS-160-S-20A-TR | ECS晶振 | CSM-8A | 16MHz | -10°C ~ 70°C |
| ECS-240-20-20A-TR | ECS晶振 | CSM-8A | 24MHz | -10°C ~ 70°C |
| ECS-143-S-20A-TR | ECS晶振 | CSM-8A | 14.31818MHz | -10°C ~ 70°C |
| ECS-196.6-S-20A-TR | ECS晶振 | CSM-8A | 19.6608MHz | -10°C ~ 70°C |
| ECS-300-S-20A-TR | ECS晶振 | CSM-8A | 30MHz | -10°C ~ 70°C |
| ECS-480-20-20A-TR | ECS晶振 | CSM-8A | 48MHz | -10°C ~ 70°C |
| ECS-330-S-20A-TR | ECS晶振 | CSM-8A | 33MHz | -10°C ~ 70°C |
| ECS-122.8-20-20A-TR | ECS晶振 | CSM-8A | 12.288MHz | -10°C ~ 70°C |
| ECS-360-S-20A-TR | ECS晶振 | CSM-8A | 36MHz | -10°C ~ 70°C |
| ECS-143-20-20A-TR | ECS晶振 | CSM-8A | 14.31818MHz | -10°C ~ 70°C |
| ECS-98.3-S-20A-TR | ECS晶振 | CSM-8A | 9.8304MHz | -10°C ~ 70°C |
