M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式电子设备晶振

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式电子设备晶振，美国MtronPTI晶振，麦特伦皮晶振，型号：M1253系列晶振，产品编码为：M1253S107 52.000000石英晶振，频率：52MHz，频率稳定性：±15ppm，频率容差：±10ppm，负载电容：20pF，工作温度范围：-20℃至+70℃，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，无源晶振，3225晶振，石英晶体谐振器，SMD晶振，具有超小型，轻薄型，高品质晶振，耐热及耐环境特点。进口晶振，应用于：手持式电子设备，PDA、GPS、MP3，便携式仪器，PCMCIA卡，蓝牙等应用。

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式电子设备晶振,参数表

Parameter	Symbol	Min.		Typ.	Max.		Units	Conditions
Frequency Range	F				52		MHz
Frequency Tolerance	F/F	See Ordering Information					ppm	+25℃
Frequency Stability	F/F	See Ordering Information					ppm	Over Operating Temperature
Operating Temperature	Topr	See Ordering Information					℃
Storage Temperature	Tstg	-55			+125		℃
Aging	Fa				±5		ppm/yr	+25℃
Load Capacitance	CL							See Ordering Information
Shunt Capacitance	C0				3		pF
ESR
Fundamental AT-Cut Frequencies 13.000000 to 19.999999 MHz 20.000000 to 29.999999 MHz 30.000000 to 54.000000 MHz					80 70 50		Ohms Ohms Ohms	All All All
Drive Level	DL	10		100	300		μW
Insulation Resistance	IR	500					Megohms	100 VDC
Aging	Internal Specification							168 hrs. at +55℃
Physical Dimensions	MIL-STD-883, Method 2016
Shock	MIL-STD-202, Method 213 Condition C							100 g
Vibration	MIL-STD-202, Methods 201 & 204							10 g from 10-2000 Hz
Thermal Cycle	MIL-STD-883, Method 1010, Condition B							-55℃to +125℃
Gross Leak	MIL-STD-202, Method 112							30 sec. Immersion
Fine Leak	MIL-STD-202, Method 112							1 x 10-8atmcc/sec. min.
Resistance to Solvents	MIL-STD-883, Method 2015							Three 1 minute soaks
Max Soldering Conditions	See solder profile, Figure 1

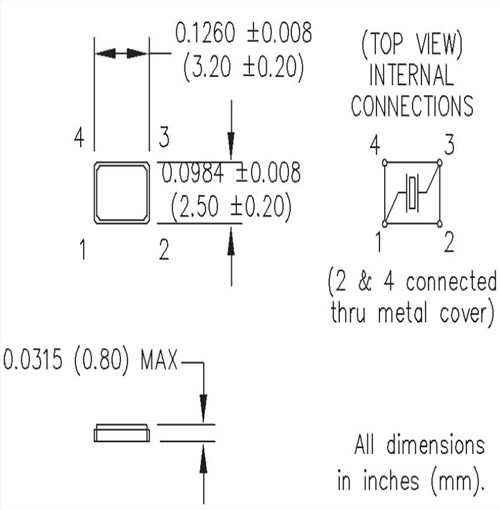

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式电子设备晶振,尺寸图

产品编码	型号	频率	包装	频率稳定性	频率容差
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12532HH 30.000000	M1253	30MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 50.000000	M1253	50MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532JJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ 27.000000	M1253	27MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 16.384000	M1253	16.384MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ09 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JM 15.360000	M1253	15.36MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 27.000000	M1253	27MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 29.491200	无源晶振	29.4912MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 40.000000	M1253	40MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12536JM 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 50.000000	M1253	50MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S072 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±30 ppm
M1253S107 52.000000	M1253	52MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S108 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S116 16.000000	M1253	16MHz	2.5 x 3.2 mm	±10 ppm, ±15 ppm	±10 ppm
M1253S162 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±15 ppm
M1253S164 48.000000	M1253	48MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S204 25.000000	M1253	25MHz	2.5 x 3.2 mm	±100 ppm	±50 ppm
M1253S207 20.736000	M1253	20.736MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S208 26.000000	M1253	26MHz	2.5 x 3.2 mm	±9 ppm	±10 ppm
M1253S211 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S218 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M1253S219 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S220 48.000000	M1253	48MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S224 32.000000	M1253	32MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M1253S225 26.000000	M1253	26MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S226 12.000000	M1253	12MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S227 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±10 ppm
M1253S229 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M1253S230 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
