EC2600TS-66.000M TR,Ecliptek晶振厂家,7050mm,LVCMOS振荡器,美国Ecliptek晶振,日蚀晶振,型号:EC26系列,编码为:EC2600TS-66.000M TR,频率:66.000MHz,电压:3.3V,频率稳定性:±100ppm,工作温度范围:-10℃至+70℃,小体积晶振尺寸:7.0x5.0mm封装,四脚贴片晶振,石英晶振,SMD晶振,LVCMOS输出晶振,有源晶振,石英晶体时钟振荡器。具有超小型,轻薄型,高品质,高精度,高性能,高可靠性等特点。应用于:通讯设备晶振,GPS定位晶振,导航仪晶振,数字视频晶振,物联网等应用。
EC2600TS-66.000M TR,Ecliptek晶振厂家,7050mm,LVCMOS振荡器,参数表
品牌
Ecliptek日蚀晶振
型号
EC26
物料编码
EC2600TS-66.000M TR
频率
66MHz
频率稳定性
±100ppm
输出
LVCMOS
电源电压
3.3V
工作温度
-10℃至+70℃
尺寸
7.0x5.0mm

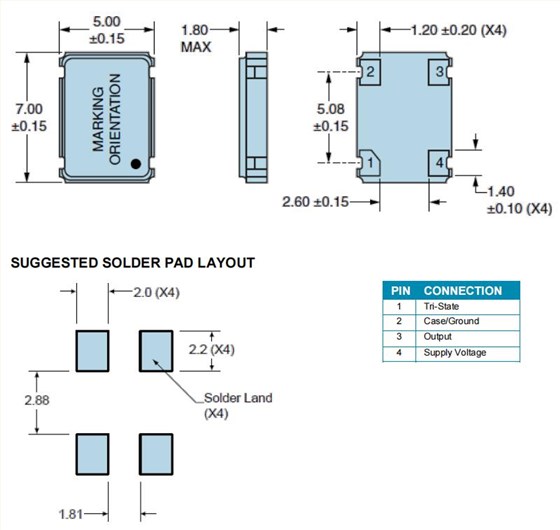

EC2600TS-66.000M TR,Ecliptek晶振厂家,7050mm,LVCMOS振荡器,尺寸图
产品编码 | 品牌 | 系列 | 类型 | 频率 |
EC2645TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
EC2645TTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz |
EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 40 MHz |
EC2620TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
EC2645ETTS-33.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33.333 MHz |
EC2620TS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz |
EC2620TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
EC2600TS-66.000M TR | 晶振厂家 | EC26 | XO (Standard) | 66 MHz |
EC2600TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
EC2620TS-24.576M TR | Ecliptek晶振 | EC26 | XO (Standard) | 24.576 MHz |
EC2625ETTS-66.666M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66.666 MHz |
EC2625ETTS-16.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
EC2645TTS-27.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 27 MHz |
EC2645ETTTS-4.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 4 MHz |
EC2625ETTS-32.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 32 MHz |
EC2600ETTTS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
EC2600TS-24.576M TR | Ecliptek晶振 | EC26 | XO (Standard) | 24.576 MHz |
EC2645ETTTS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
EC2620TTS-100.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 100 MHz |
EC2645TS-20.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 20 MHz |
EC2625ETTS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
EC2625ETTTS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
EC2645ETTTS-18.432M TR | Ecliptek晶振 | EC26 | XO (Standard) | 18.432 MHz |
EC2600ETTTS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz |
EC2600TS-5.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 5 MHz |
EC2625TTS-75.000MTR | Ecliptek晶振 | EC26 | XO (Standard) | 75 MHz |
EC2625TS-48.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 48 MHz |
EC2645ETTTS-14.31818M TR | Ecliptek晶振 | EC26 | XO (Standard) | 14.31818 MHz |
EC2620TS-16.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
EC2625TS-24.000M TR | 石英晶振 | EC26 | XO (Standard) | 24 MHz |
EC2600TS-11.0592M TR | Ecliptek晶振 | EC26 | XO (Standard) | 11.0592 MHz |
EC2600ETTS-14.7456M TR | Ecliptek晶振 | EC26 | XO (Standard) | 14.7456 MHz |
EC2600TS-15.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 15 MHz |
EC2625TTS-64.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 64 MHz |
EC2645TTS-32.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 32 MHz |
EC2600TS-48.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 48 MHz |
EC2600ETTS-16.384M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16.384 MHz |
EC2645ETTS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
EC2645ETTS-16.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
EC2645ETTS-66.666M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66.666 MHz |
EC2645TTS-106.250M TR | Ecliptek晶振 | EC26 | XO (Standard) | 106.25 MHz |
EC2625ETTS-100.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 100 MHz |
EC2600TS-120.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 120 MHz |
EC2645TTS-125.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 125 MHz |
EC2625TS-125.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 125 MHz |
EC2625ETTS-133.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 133.333 MHz |
EC2600ETTS-14.318M | Ecliptek晶振 | EC26 | XO (Standard) | 14.318 MHz |
EC2600ETTS-14.7456M | Ecliptek晶振 | EC26 | XO (Standard) | 14.7456 MHz |
EC2600ETTS-16.000M | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
EC2600ETTS-33.000M | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz |
EC2600ETTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz |
EC2600ETTS-66.666M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66.666 MHz |
