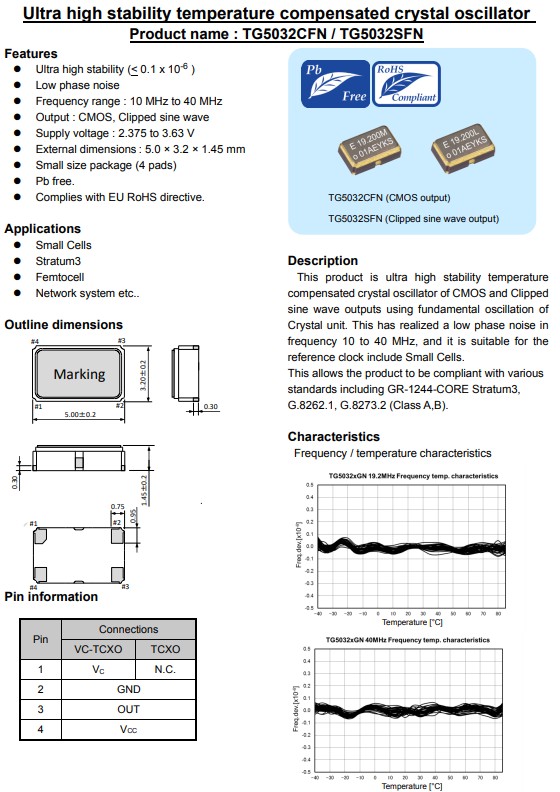

爱普生晶振TG5032SFN,是一款温补晶体振荡器,小体积尺寸5.0x3.2mm有源晶振,四脚贴片晶振,电源电压2.375V至3.63V,频率范围10MHz至40MHz,工作温度-40℃至+85℃,具有超小型,轻薄型,低电源电压,低抖动,低功耗,低损耗,低耗能,高稳定性、快速起振等性能,该产品被广泛用于移动通讯,汽车电子,智能手机,平板电脑,智能家居,LED显示屏等
用于LED显示屏温补晶体振荡器X1G005401000600
产品编码 | 型号 | 贴片晶振 | 尺寸 | 输出波 | 电源电压 |
X1G005401000200 | TG5032SFN | 19.200000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401000300 | TG5032SFN | 10.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401000500 | TG5032SFN | 25.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401000600 | TG5032SFN | 26.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401000700 | TG5032SFN | 40.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401000900 | TG5032SFN | 20.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001000 | TG5032SFN | 40.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001100 | TG5032SFN | 40.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001200 | TG5032SFN | 20.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001300 | TG5032SFN | 20.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 2.700 to 3.000 V |
X1G005401001500 | TG5032SFN | 26.000000MHz | 5.00x3.20x1.45mm | TCXO晶振 | 3.135 to 3.465 V |
X1G005401001600 | TG5032SFN | 26.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001700 | TG5032SFN | 26.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001800 | TG5032SFN | 30.720000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401001900 | TG5032SFN | 40.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401002000 | TG5032SFN | 25.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401002100 | TG5032SFN | 10.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
X1G005401002300 | TG5032SFN | 20.000000MHz | 5.00x3.20x1.45mm | Clipped sine wave | 3.135 to 3.465 V |
随着LED小间距技术越来越成熟,使得户内外的显示屏实现了超高清3D的效果。
然而承载LED显示屏正常显示及高清效果的背后,正是由各类器件的相互作用而产生的结果。作为各类器件中的一名成员,晶振电子元件一直扮演着一颗小螺丝钉角色,在LED模块里,晶振成为电路中时钟信号的输出者,它的好坏会间接影响到LED显示屏的正常使用。
