车规晶体振荡器X1G004591A04900非常适合用于汽车电子器件

返回列表 来源：康比电子 查看手机网址
扫一扫!车规晶体振荡器X1G004591A04900非常适合用于汽车电子器件扫一扫!
 浏览：- 发布日期：2022-09-21 17:21:23【大 中 小】
分享到：

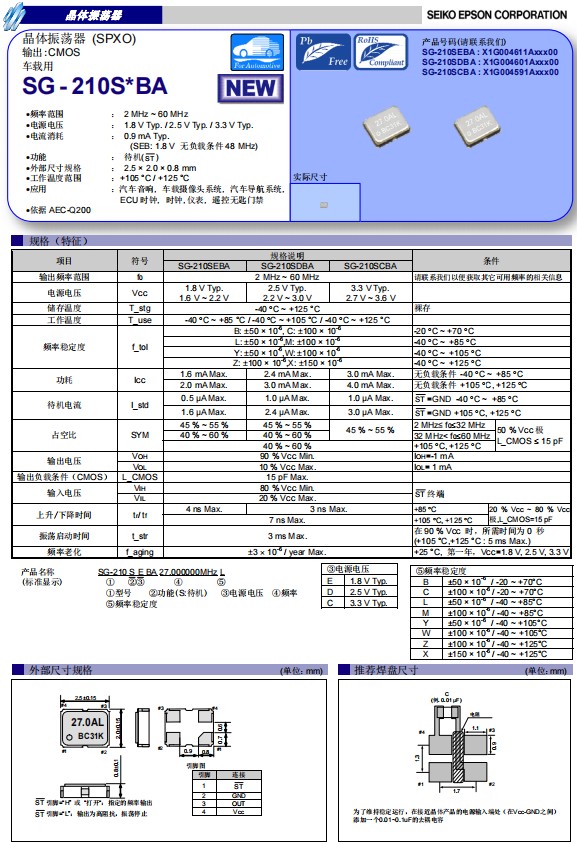

爱普生公司推出车载专用晶振SG-210SCBA，是一款CMOS输出石英晶体振荡器，小体积尺寸2.5x2.0mm四脚贴片晶振，其中24.576MHz +/-100ppm晶振振荡器是爱普生的一款额定频率24.576MHz的车规晶振，2520封装车规晶振，有源晶振，具有小尺寸，高稳定性，原厂编码X1G004591A04900，是爱普生车规晶振中的热销型号之一。该款车规晶体振荡器，可以在-40℃至+105℃的温度内稳定工作,频率公差为+/-100ppm，具有超小型，轻薄型，耐高温，耐热、耐振、耐冲击等优良的耐环境特性，符合AEC-Q200标准，满足无铅焊接的高温回流温度曲线要求，非常适合用于汽车电子器件。

车规晶体振荡器X1G004591A04900非常适合用于汽车电子器件

1

产品编码 型号 频率 耐高温晶振 输出波 电源电压 工作温度
X1G004591A00100 SG-210SCBA 27.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00200 SG-210SCBA 49.090000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00300 SG-210SCBA 40.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A00400 SG-210SCBA 8.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00600 SG-210SCBA 37.007000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00700 SG-210SCBA 27.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A00900 SG-210SCBA 20.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A01000 SG-210SCBA 33.333000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A01300 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A01700 SG-210SCBA 4.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A02000 SG-210SCBA 20.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02100 SG-210SCBA 33.333300MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02300 SG-210SCBA 16.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02400 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A02500 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02700 SG-210SCBA 33.300000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02800 SG-210SCBA 48.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A03100 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A03300 SG-210SCBA 10.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A03600 SG-210SCBA 33.333300MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A03700 SG-210SCBA 14.745600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C

SG-210SEBA，SG-210SDBA,SG-210SCBA

X1G004591A03800 SG-210SCBA 37.007000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A04000 SG-210SCBA 24.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A04100 SG-210SCBA 16.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A04900 SG-210SCBA 24.576000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A05000 SG-210SCBA 22.579200MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A05100 SG-210SCBA 14.745600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A05200 SG-210SCBA 24.576000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A05800 SG-210SCBA 48.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A05900 SG-210SCBA 10.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A06700 SG-210SCBA 27.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A06800 SG-210SCBA 12.288000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A07200 SG-210SCBA 8.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A07300 SG-210SCBA 30.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A07700 SG-210SCBA 7.904000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A07800 SG-210SCBA 12.288000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08100 SG-210SCBA 40.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08200 SG-210SCBA 16.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08400 SG-210SCBA 24.576000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08500 SG-210SCBA 16.666600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08600 SG-210SCBA 19.200000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08700 SG-210SCBA 12.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08800 SG-210SCBA 45.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08900 SG-210SCBA 40.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C

车规晶体振荡器X1G004591A04900非常适合用于汽车电子器件

汽车系统中所用的晶振包括音响、蓝牙、雷达、时钟、显示屏等等不下5处，车载音响中用到的12M或者是16M，26M，32M贴片晶振，时钟上到的是32.768khz晶振，倒车雷达中也有用到晶振。
汽车电子是晶振的主要应用市场，中国是汽车产销大国，低配车型10-20颗晶振，经济型30-40颗晶振，豪华车需70-110颗晶振。车规晶振在信息情报系统中的使用量为5-10颗，主要有汽车音响、车载导航系统、数据公交车系统、监控摄像头、倒车雷达、高安全线控系统

我国汽车产业晶振需求量（车规晶振需求量）在2022-2025年分别预估为19.7、22.4、25.4、28.7亿颗。这是车规晶振的巨大市场。
