爱普生SG-8018系列最小封装尺寸2520mm可编程振荡器编码X1G005601036600

来源：康比电子查看手机网址

扫一扫!

爱普生SG-8018系列最小封装尺寸2520mm可编程振荡器编码X1G005601036600

扫一扫!

浏览：- 发布日期：2022-09-06 16:00:40【大中小】

分享到：

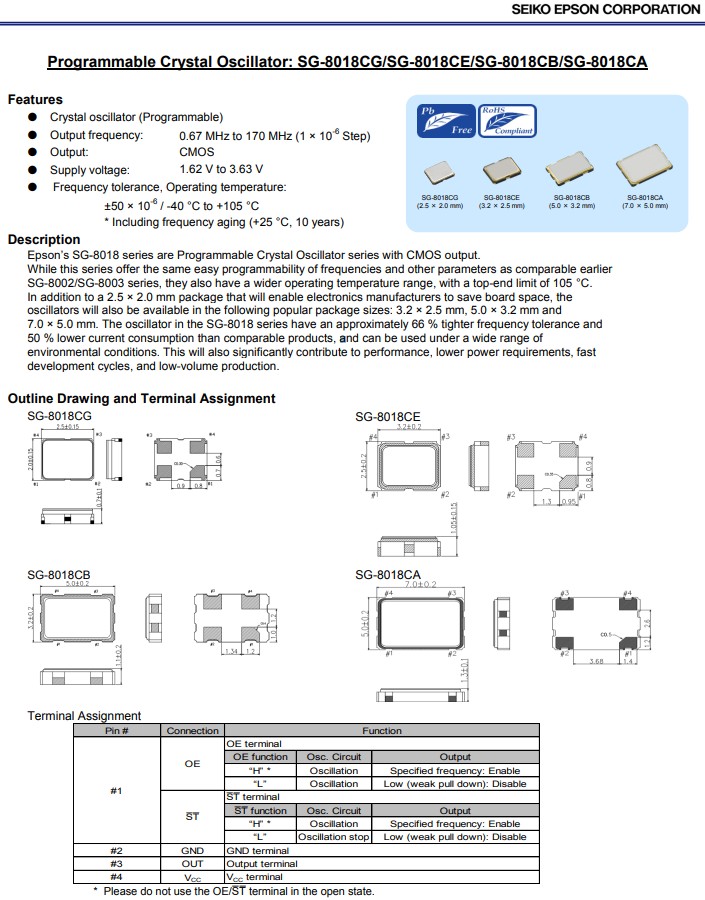

爱普生晶振针对市场开发了可编程振荡器系列产品，新的SG-8018系列产品,共四种型号分别为SG-8018CA、SG-8018CB、SG-8018CE、SG-8018CG，频率调节精度可达1ppm，相比同级别元件的功耗、频率稳定性都有明显提升,SG-8018系列产品具有更宽的工作温度范围,除了一个2.5mmx2.0mm的封装，使电子制造商能够节省电路板空间，晶体振荡器还可以在以下流行的封装尺寸中获得3.2mmx2.5mm，5.0mmx3.2mm和7.0mmx5.0mm,用户将能够利用SG-Writer II*1编程工具对SG8108系列和扩频振荡器进行编程。工作温度为-40至+105℃，符合工业标准。该系列的最小封装尺寸为2.5mm*2.0mm(SG-8018CG)，（用于空间敏感无线应用的小型化设计），为无线通信设备提供精确的时钟信号，提高使用寿命和耐用性，并缩短产品开发周期。

爱普生SG-8018系列最小封装尺寸2520mm可编程振荡器编码X1G005601036600

产品编码	频率	贴片晶振	尺寸(长宽高)	输出波	电源电压	工作温度
X1G005601001100	25.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001200	25.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001300	20.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001400	20.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001500	50.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001600	50.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001700	48.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001800	48.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001900	24.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002000	24.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002100	40.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002200	40.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002300	16.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002400	16.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002500	12.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

X1G005601035200	25.629200 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035300	54.229000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035400	22.989500 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035500	66.666600 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035600	74.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035700	3.686400 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035900	28.636300 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036000	29.491200 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036100	39.800000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036200	27.800000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036300	11.289000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036400	24.519000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036500	32.674000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036600	150.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036700	36.700000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036800	40.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036900	7.690000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601037000	1.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601037100	15.360000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

爱普生SG-8018系列最小封装尺寸2520mm可编程振荡器编码X1G005601036600
SG-8018系列可编程晶振电源电压为1.62V至3.63V，支持CMOS电平输出，有利于设备的综合设计。输出启用和待机模式由OE和ST引脚切换。当晶振输出频率为20MHz时，空载电流损失低至2.7Ma。在待机模式下，静态电流仅为0.3MUA，这使得更容易实现低功耗设计。SG-8018的输出频率在0.67MHz至170MHz之间。由于采用了锁相环（PLL），在没有温度补偿的情况下可以产生稳定的频率信号，其中频率容限仅为（-40至+105℃）。
