高性能的可编程时钟OSC非常适合于汽车大灯恒温器X1G005601006200

来源：康比电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2022-10-18 15:32:17【大中小】

分享到：

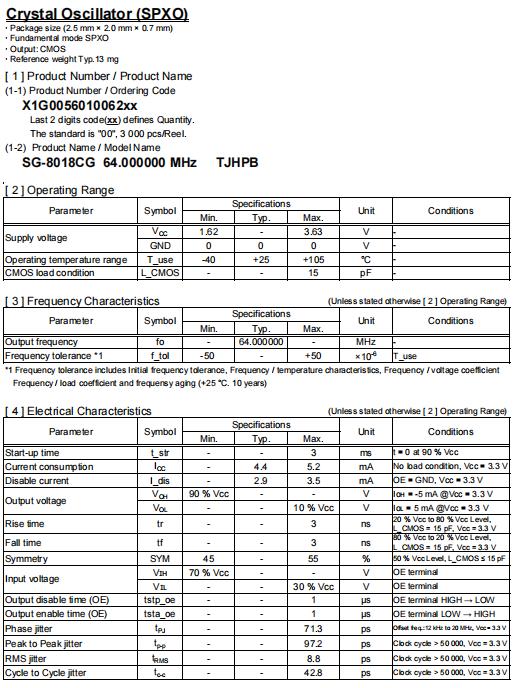

高性能的可编程时钟OSC非常适合于汽车大灯恒温器X1G005601006200，爱普生晶振公司有太多独特性了，也是一家容纳性特别广泛的元器件制造商，凭着多年的积累，对于晶体行业有自身独特的见解，以及独特设计理念，同时又能够符合用户各种各样的需求，并以高于用户的满意度为最高标准，生产这款SG-8018CG晶振，贴片石英晶振编码X1G005601006200，频率64.000000兆赫，输出WaveCMOS，电源电压1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作温度-40至+105°C，频率公差±50ppm，额外的OptionsN /OSC类型可编程时钟OSC，具有超高的稳定性能，低损耗，低电压的特点，适合用于汽车大灯恒温器，航空航天，仪器设备，电子通信等领域。

Product Number	EPSON晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601004700	SG-8018CG	100.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004800	SG-8018CG	100.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004900	SG-8018CG	4.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005000	SG-8018CG	4.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005100	SG-8018CG	66.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005200	SG-8018CG	66.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005300	SG-8018CG	19.660800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005400	SG-8018CG	19.660800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005500	SG-8018CG	125.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005600	SG-8018CG	125.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005700	SG-8018CG	33.333300 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005800	SG-8018CG	33.333300 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601005900	SG-8018CG	96.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006000	SG-8018CG	48.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006100	SG-8018CG	13.516800 MHz	2520贴片晶振	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006200	SG-8018CG	64.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006300	SG-8018CG	13.107200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006400	SG-8018CG	12.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006500	SG-8018CG	80.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006600	SG-8018CG	16.384000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006700	SG-8018CG	7.372800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601006800	SG-8018CG	11.520000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
