ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon无源晶振

频率：13.560MHz

尺寸：11.5x4.7x4.2mm

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon无源晶振，美国进口晶振，Abracon晶振，艾博康晶振，型号：ABLS系列，编码为：ABLS-13.560MHZ-10-R20-D-T，频率为：13.560MHz，频率稳定性：±50ppm，频率容差：±50ppm，负载电容：10pF，工作温度范围：-40℃至+80℃，是一款小体积晶振尺寸：11.5x4.7x4.2mm封装，两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅环保晶振。具有超小型，轻薄型，高品质，耐热及耐环境等特点。应用于：计算机晶振、调制解调器、微处理器晶振，无线应用程序。

订购热线：0755-27876201

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon无源晶振，产品特点：

●适用于RoHS回流

●低轮廓晶体贴片晶振

●具有紧密的稳定性和扩展的温度范围

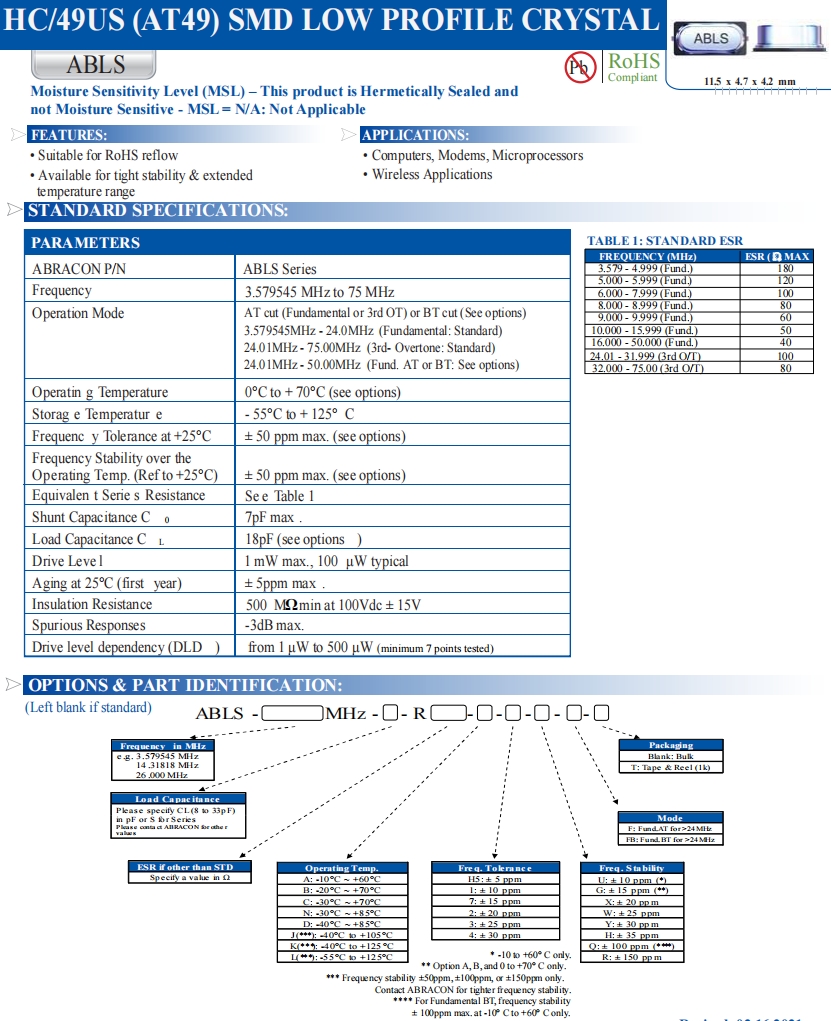

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon无源晶振,参数表

ABRACON P/N	ABLS Series
Frequency	13.56 MHz
Operation Mode	AT cut (Fundamental or 3rd OT) or BT cut (See options)
	3.579545MHz - 24.0MHz (Fundamental: Standard)
	24.01MHz - 75.00MHz (3rd- Overtone: Standard)
	24.01MHz - 50.00MHz (Fund. AT or BT: See options)
Operatin g Temperature	0°C to + 70°C (see options)
Storag e Temperatur e	- 55°C to + 125° C
Frequenc y Tolerance at +25°C	± 50 ppm max. (see options)
Frequency Stability over the	± 50 ppm max. (see options)
Operating Temp. (Ref to +25°C)	± 50 ppm max. (see options)
Equivalen t Serie s Resistance	See Table 1
Shunt Capacitance C 0	7pF max
Load Capacitance C L	18pF (see options )
Drive Leve l	1 mW max., 100 μW typical
Aging at 25°C (first year)	± 5ppm max .
Insulation Resistance	500 MΩ min at 100Vdc ± 15V
Spurious Responses	-3dB max
Drive level dependency (DLD )	from 1 μW to 500 μW (minimum 7 points tested)

ABLS,ABLS-13.560MHZ-10-R20-D-T,13.56MHz,Abracon无源晶振,尺寸图

石英晶体谐振器	品牌	型号	频率	长度	宽度	高度
ABLS-10.000MHZ-16-A-4-H-T	Abracon晶振	ABLS	10MHz	11.4mm	4.7mm	4.2mm
ABLS-12.11876MHZ-10-D4Y-T	Abracon晶振	ABLS	12.11876MHz	11.4mm	4.7mm	4.2mm
ABLS-12.1496MHZ-10-D4Y-T	Abracon晶振	ABLS	12.1496MHz	11.4mm	4.7mm	4.2mm
ABLS-12.1875MHZ-10-R20-D-T	Abracon晶振	ABLS	12.1875MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-20-B-3-H-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-20-B-4-Y-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-20-L-4-Q-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-B2-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-B4-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-D-3-Y-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-D-4-Y-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-K4T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-L4Q-T	Abracon晶振	ABLS	12.288MHz	11.4mm	4.7mm	4.2mm
ABLS-12.98883MHZ-10-D4Y-T	Abracon晶振	ABLS	12.98883MHz	11.4mm	4.7mm	4.2mm
ABLS-13.000MHZ-B4-T	Abracon晶振	ABLS	13MHz	11.4mm	4.7mm	4.2mm
ABLS-13.000MHZ-K4T	Abracon晶振	ABLS	13MHz	11.4mm	4.7mm	4.2mm
ABLS-13.000MHZ-L4Q-T	Abracon晶振	ABLS	13MHz	11.4mm	4.7mm	4.2mm
ABLS-13.02187MHZ-10-D4Y-T	Abracon晶振	ABLS	13.02187MHz	11.4mm	4.7mm	4.2mm
ABLS-13.02519MHZ-10-K4Q-T	Abracon晶振	ABLS	13.02519MHz	11.4mm	4.7mm	4.2mm
ABLS-13.0625MHZ-10-K4Q-T	Abracon晶振	ABLS	13.0625MHz	11.4mm	4.7mm	4.2mm
ABLS-13.0625MHZ-10-R20-D-T	Abracon晶振	ABLS	13.0625MHz	11.4mm	4.7mm	4.2mm
ABLS-13.225625MHZ-A2Y-T	Abracon晶振	ABLS	13.225625MHz	11.4mm	4.7mm	4.2mm
ABLS-13.262250MHZ-10-J4Y-T	Abracon晶振	ABLS	13.26225MHz	11.4mm	4.7mm	4.2mm
ABLS-13.48352MHZ-10-D4Y-T	Abracon晶振	ABLS	13.48352MHz	11.4mm	4.7mm	4.2mm
ABLS-13.4916MHZ-10-R20-D-T	艾博康晶振	ABLS	13.4916MHz	11.4mm	4.7mm	4.2mm
ABLS-13.500MHZ-B4-T	Abracon晶振	ABLS	13.5MHz	11.4mm	4.7mm	4.2mm
ABLS-13.5178MHZ-10-D4Y-T	Abracon晶振	ABLS	13.5178MHz	11.4mm	4.7mm	4.2mm
ABLS-13.52127MHZ-10-D4Y-T	Abracon晶振	ABLS	13.52127MHz	11.4mm	4.7mm	4.2mm
ABLS-13.52127MHZ-10-J-4Q-T	Abracon晶振	ABLS	13.52127MHz	11.4mm	4.7mm	4.2mm
ABLS-13.54856MHZ-10-J4Y-T	Abracon晶振	ABLS	13.54856MHz	11.4mm	4.7mm	4.2mm
ABLS-13.560MHZ-10-R20-D-T	Abracon晶振	ABLS	13.56MHz	11.4mm	4.7mm	4.2mm
ABLS-13.560MHZ-10-R30-D-T	Abracon晶振	ABLS	13.56MHz	11.4mm	4.7mm	4.2mm
ABLS-13.560MHZ-B4Y-T	Abracon晶振	ABLS	13.56MHz	11.4mm	4.7mm	4.2mm
ABLS-13.6050MHZ-20-R50-D-T	Abracon晶振	ABLS	13.605MHz	11.4mm	4.7mm	4.2mm
ABLS-13.94916MHZ-10-R20-D-T	Abracon晶振	ABLS	13.94916MHz	11.4mm	4.7mm	4.2mm
ABLS-14.089190MHZ-10-J4Y-T	Abracon晶振	ABLS	14.08919MHz	11.4mm	4.7mm	4.2mm
ABLS-14.276430MHZ-10-J4Y-T	Abracon晶振	ABLS	14.27643MHz	11.4mm	4.7mm	4.2mm
ABLS-14.299830MHZ-10-J4Y-T	Abracon晶振	ABLS	14.29983MHz	11.4mm	4.7mm	4.2mm
ABLS-14.31818MHZ-20-L-4-Q-T	Abracon晶振	ABLS	14.31818MHz	11.4mm	4.7mm	4.2mm
ABLS-14.31818MHZ-B2-T	Abracon晶振	ABLS	14.31818MHz	11.4mm	4.7mm	4.2mm
ABLS-14.31818MHZ-B4-T	Abracon晶振	ABLS	14.31818MHz	11.4mm	4.7mm	4.2mm
ABLS-14.31818MHZ-K4T	Abracon晶振	ABLS	14.31818MHz	11.4mm	4.7mm	4.2mm
ABLS-14.31818MHZ-L4Q-T	Abracon晶振	ABLS	14.31818MHz	11.4mm	4.7mm	4.2mm
ABLS-14.3359MHZ-20-R50-T	Abracon晶振	ABLS	14.3359MHz	11.4mm	4.7mm	4.2mm
ABLS-14.3594MHZ-20-R50-T	Abracon晶振	ABLS	14.3594MHz	11.4mm	4.7mm	4.2mm
ABLS-14.463660MHZ-10-J4Y-T	Abracon晶振	ABLS	14.46366MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-20-B-3-H-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-20-B-4-Y-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-20-R40-D4H-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-B2-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-B4-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-B4H-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-D-3-Y-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-K4T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.7456MHZ-L4Q-T	Abracon晶振	ABLS	14.7456MHz	11.4mm	4.7mm	4.2mm
ABLS-14.822520MHZ-10-J4Y-T	Abracon晶振	ABLS	14.82252MHz	11.4mm	4.7mm	4.2mm
ABLS-15.000MHZ-B4-T	Abracon晶振	ABLS	15MHz	11.4mm	4.7mm	4.2mm
ABLS-15.000MHZ-K4T	Abracon晶振	ABLS	15MHz	11.4mm	4.7mm	4.2mm
ABLS-15.000MHZ-L4Q-T	Abracon晶振	ABLS	15MHz	11.4mm	4.7mm	4.2mm
ABLS-15.360MHZ-B4-T	Abracon晶振	ABLS	15.36MHz	11.4mm	4.7mm	4.2mm
ABLS-16.000MHZ-10-B-1-G-T	Abracon晶振	ABLS	16MHz	11.4mm	4.7mm	4.2mm
ABLS-16.000MHZ-12-D-4-Y-T	Abracon晶振	ABLS	16MHz	11.4mm	4.7mm	4.2mm
ABLS-16.000MHZ-16-A-4-H-T	Abracon晶振	ABLS	16MHz	11.4mm	4.7mm	4.2mm
