频率：122.880000 MHz
尺寸：5.0x3.2x1.2mm
LVPECL输出低电压晶振,NV5032SC-122.880000MHz-NSC5262A,NDK压控晶体振荡器，日本进口晶振，NDK晶振，型号为：NV5032SC，编码为：NV5032SC-122.880000MHz-NSC5262A，频率为：122.880000 MHz，小体积晶振尺寸为5.0x3.2x1.2mm，六脚贴片晶振，VCXO压控晶体振荡器，LVPECL输出差分晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低相位噪声，低电源电压，低电平特点。NV5032SC贴片晶振应用于：基站，通讯设备晶振，工业控制，消费电子，智能安防，无线网络，蓝牙模块，物联网，路由器/交换机、仪器仪表，机顶盒，光端机，安防设备及各种频率控制设备上。

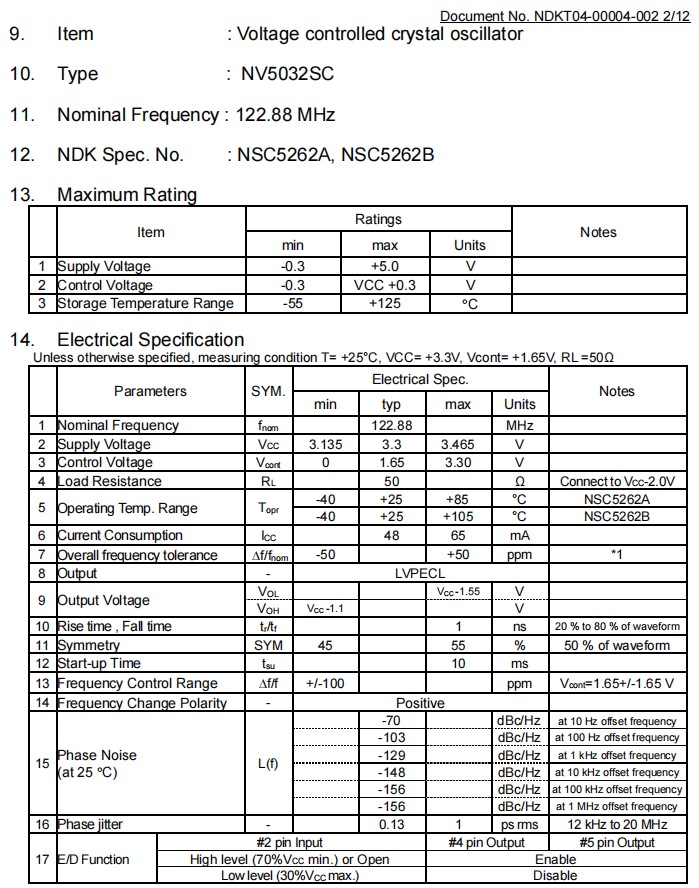

LVPECL输出低电压晶振,NV5032SC-122.880000MHz-NSC5262A,NDK压控晶体振荡器,参数表
| Item | Symbol | NV5032SC | Unit | |
| Nominal frequency range | fnom | 122.88 | MHz | |
| Package size (L×W×H) | - | 5.0×3.2×1.2 | mm | |
| Supply voltage | VCC | +3.3 ± 5 ％ | V | |
| Current consumption | ICC | Max. 65 | mA | |
| Output level | - | LVPECL | - | |
| Output load condition | - | 50 | Ω | |
| Storage temperature range | Tstr | -55 to +125 | ℃ | |
| Operating temperature range | Topr | -40 to +85 | -40 to +105 | ℃ |
| Overall frequency tolerance | Δf/fnom | Max. ±50 | ppm | |
| Frequency control range/Control voltage | Vcont | Min. ±100 / +1.65 ±1.65 V | ppm | |
| Frequency change polarity | - | Positive | - | |
| Symmetry | - | 45 to 55 | % | |
| Specification number | - | NSC5262A | NSC5262B | - |
LVPECL输出低电压晶振,NV5032SC-122.880000MHz-NSC5262A,NDK压控晶体振荡器,尺寸图
LVPECL输出低电压晶振,NV5032SC-122.880000MHz-NSC5262A,NDK压控晶体振荡器
产品特点：
●尺寸：5.0 x 3.2x1.2毫米陶瓷封装
●输出规格：LVPECL差分晶振
●低相位噪声（122.88MHz）：
类型-129dBc/Hz（@1kHz）
类型-156dBc/Hz（@100kHz）
●低相位抖动（122.88MHz）：
类型。0.13ps（12kHz～20MHz）
●低电流消耗（122.88MHz）：典型，48mA
●频率：122.88MHz
| 进口晶振 | Features | Nominal frequency[MHz] | 包装尺寸 | 输出方式 | 工作温度范围 |
| NV5032SC | 5032size Compact VCXO | 122.88 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SC | 5032size Compact VCXO | 122.88 | 5.0x3.0x1.2 | LVPECL | -40~+105 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVPECL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | LVDS | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | VCXO振荡器 | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~2100 | 5.0x3.0x1.2 | CML | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
| NV5032SK | Multi-mode VCXO | 15~700 | 5.0x3.0x1.2 | HCSL | -40~+85 |
