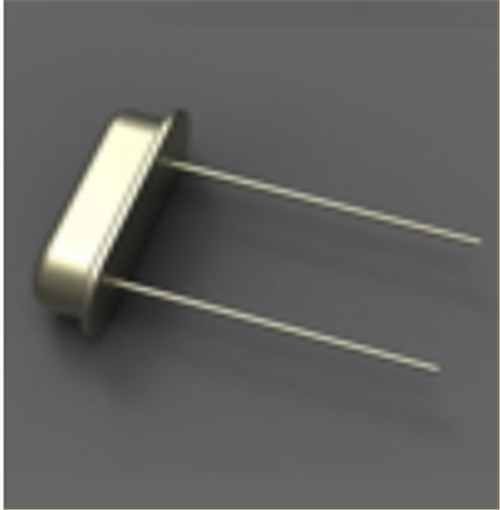

SX-49U-20-30H2-30.000MHz-12pF\6G无线网络晶振\SHINSUNG插件晶体，尺寸11.3mmX5.0mm，频率30MHZ，韩国新松晶振，新松无源晶体，石英插件晶振，石英晶振，轻薄型插件晶振，高质量插件晶振，石英晶体谐振器，低损耗插件晶振，6G无线网络插件晶振，倾斜型晶体，蜂窝电话专用插件晶振，数字视频插件晶体，以太网专用插件晶振，具备良好的可靠性能以及稳定性等.
石英晶体谐振器非常适合用于局域网，数字电视、视频，ISDN，蜂窝电话，微处理器时钟，蜂窝，SONET、DSP，以太网等领域.SX-49U-20-30H2-30.000MHz-12pF\6G无线网络晶振\SHINSUNG插件晶体.

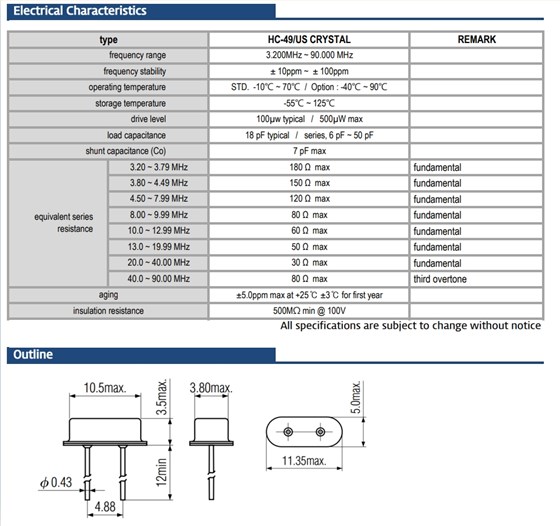

SX-49U-20-30H2-30.000MHz-12pF\6G无线网络晶振\SHINSUNG插件晶体 参数表
| type | HC-49/US CRYSTAL | REMARK | ||||||||||||||||
| frequency range | 30.000 MHz | |||||||||||||||||
| frequency stability | ± 10ppm ~± 100ppm | |||||||||||||||||
| operating temperature | STD.-10℃~ 70℃/Option : -40℃~ 90℃ | |||||||||||||||||
| storage temperature | -55℃~ 125℃ | |||||||||||||||||
| drive level | 100µw typical/500µW max | |||||||||||||||||
| load capacitance | 18 pF typical/series, 6 pF ~ 50 pF | |||||||||||||||||
| shunt capacitance (Co) | 7 pF max | |||||||||||||||||
|
equivalent series resistance |
3.20 ~ 3.79 MHz | 180 Ωmax | fundamental | |||||||||||||||
| 3.80 ~ 4.49 MHz | 150 Ωmax | fundamental | ||||||||||||||||
| 4.50 ~ 7.99 MHz | 120 Ωmax | fundamental | ||||||||||||||||
| 8.00 ~ 9.99 MHz | 80 Ωmax | fundamental | ||||||||||||||||
| 10.0 ~ 12.99 MHz | 60 Ωmax | fundamental | ||||||||||||||||
| 13.0 ~ 19.99 MHz | 50 Ωmax | fundamental | ||||||||||||||||
| 20.0 ~ 40.00 MHz | 30 Ωmax | fundamental | ||||||||||||||||
| 40.0 ~ 90.00 MHz | 80 Ωmax | third overtone | ||||||||||||||||
| aging | ±5.0ppm max at +25℃±3℃for first year | |||||||||||||||||
| insulation resistance | 500MΩmin @ 100V | |||||||||||||||||

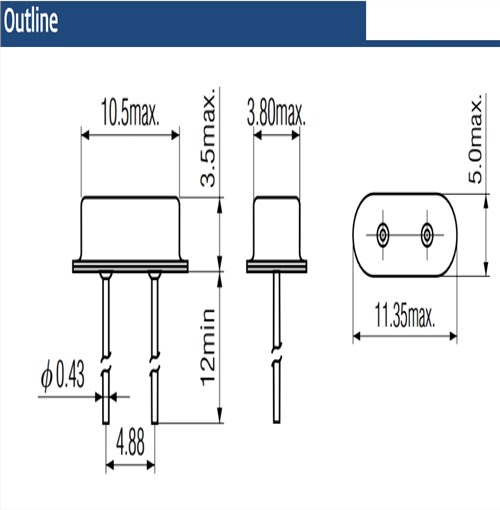

SX-49U-20-30H2-30.000MHz-12pF\6G无线网络晶振\SHINSUNG插件晶体 尺寸图

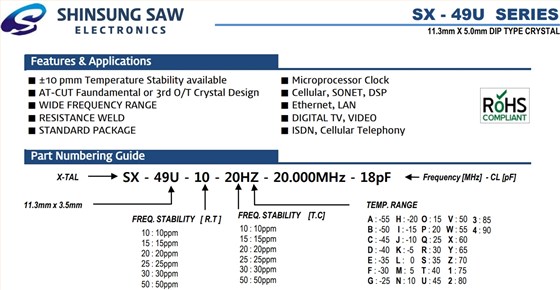

进口环保晶振产品特征:
10pmm温度稳定性可用
AT切割光纤或第三O/T晶体设计
宽频率范围
电阻焊
标准套餐
更多相关韩国新松SHINSUNG Crystal型号，请联系我们！
