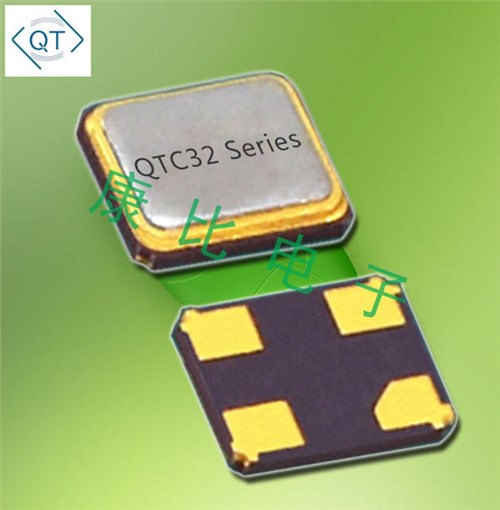

QTC3224.0000FDT1I20M,夸克测试测量晶振,QTC32高性能晶振，尺寸3.2x2.5mm，频率24MHZ，，德国夸克晶振，石英贴片晶振，水晶振动子，石英晶振，Quarztechnik Crystal，无源石英晶振，无源晶振，SMD晶振，3225mm贴片晶振，24MHZ石英晶振，四脚贴片晶振，绿色环保晶振，高性能晶振，高质量晶振，低损耗晶振，低功耗晶振，低老化晶振，低成本晶振，低耗能晶振，测试测量专用晶振，移动通信晶振，无线设备晶振，汽车应用晶振，网络设备晶振，以太网晶振，智能音响晶振，游戏机晶振，蓝牙耳机晶振，具有轻薄小高性能的特点。
石英贴片晶振产品可广泛满足各大应用领域,常常用于高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，汽车应用，还可以应用智能音响，游戏机等领域。QTC3224.0000FDT1I20M,夸克测试测量晶振,QTC32高性能晶振.

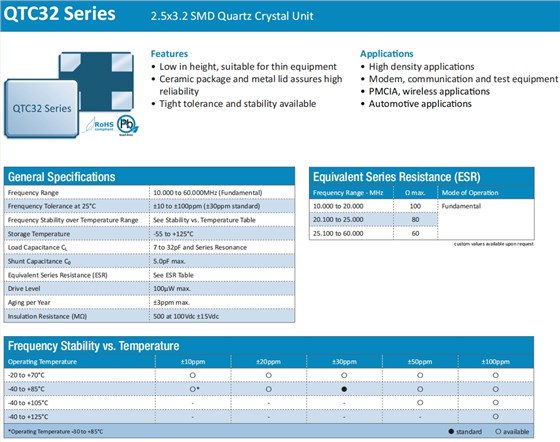

QTC3224.0000FDT1I20M,夸克测试测量晶振,QTC32高性能晶振 参数表
| General Specifications | |||||||||||||||
| Frequency Range | 24.000MHz (Fundamental) | ||||||||||||||
| Frenquency Tolerance at 25°C | ±10 to ±100ppm (±30ppm standard) | ||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||
| Load Capacitance CL | 7 to 32pF and Series Resonance | ||||||||||||||
| Shunt Capacitance C0 | 5.0pF max. | ||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||
| Drive Level | 100μW max. | ||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||

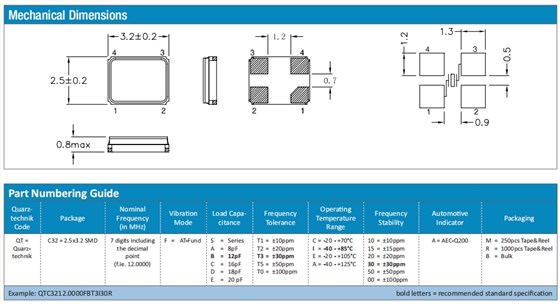

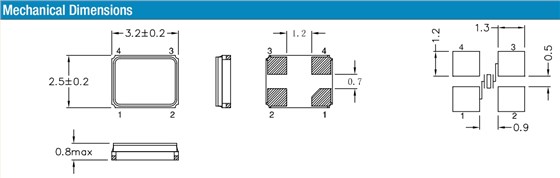

QTC3224.0000FDT1I20M,夸克测试测量晶振,QTC32高性能晶振 尺寸图
QTC3224.0000FDT1I20M,夸克测试测量晶振,QTC32高性能晶振
无源晶振产品特性：
高度低，适用于薄型设备
陶瓷包装和金属盖确保可靠性
具有紧密的公差和稳定性
| Frequency | CL | Tolerance | Stability | Temp. Range | Part number | 厂家 |
| 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A8.00000FDT1I20M | Quarztechnik夸克晶振 |
| 10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A10.0000FDT1I20M | Quarztechnik夸克晶振 |
| 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A11.0592FDT1I20M | Quarztechnik夸克晶振 |
| 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A12.0000FDT1I20M | Quarztechnik夸克晶振 |
| 14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A14.31818FDT1I20M | Quarztechnik夸克晶振 |
| 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A14.7456FDT1I20M | Quarztechnik夸克晶振 |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A16.0000FDT1I20M | Quarztechnik夸克晶振 |
| 19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A19.6608FDT1I20M | Quarztechnik夸克晶振 |
| 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A24.0000FDT1I20M | Quarztechnik夸克晶振 |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A25.0000FDT1I20M | Quarztechnik夸克晶振 |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A27.0000FDT1I20M | Quarztechnik夸克晶振 |
| 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A32.0000FDT1I20M | Quarztechnik夸克晶振 |
| 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A8.00000FDT1I20M | Quarztechnik夸克晶振 |
| 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A11.0592FDT1I20M | Quarztechnik夸克晶振 |
| 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A12.0000FDT1I20M | Quarztechnik夸克晶振 |
| 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A14.7456FDT1I20M | Quarztechnik夸克晶振 |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A16.0000FDT1I20M | Quarztechnik夸克晶振 |
| 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A20.0000FDT1I20M | Quarztechnik夸克晶振 |
| 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A24.0000FDT1I20M | Quarztechnik夸克晶振 |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A25.0000FDT1I20M | Quarztechnik夸克晶振 |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A27.0000FDT1I20M | Quarztechnik夸克晶振 |
| 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A32.0000FDT1I20M | Quarztechnik夸克晶振 |
| 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A8.00000FDT1I20M | Quarztechnik夸克晶振 |
| 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A12.0000FDT1I20M | Quarztechnik夸克晶振 |
| 12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A12.2880FDT1I20M | Quarztechnik夸克晶振 |
| 15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A15.3600FDT1I20M | Quarztechnik夸克晶振 |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A16.0000FDT1I20M | Quarztechnik夸克晶振 |
| 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A18.4320FDT1I20M | Quarztechnik夸克晶振 |
| 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A20.0000FDT1I20M | Quarztechnik夸克晶振 |
| 24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A24.5760FDT1I20M | Quarztechnik夸克晶振 |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A25.0000FDT1I20M | Quarztechnik夸克晶振 |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A27.0000FDT1I20M | Quarztechnik夸克晶振 |
| 30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A30.0000FDT1I20M | Quarztechnik夸克晶振 |
| 40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A40.0000FDT1I20M | Quarztechnik夸克晶振 |
| 48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A48.0000FDT1I20M | Quarztechnik夸克晶振 |
| 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3216.0000FDT1I20M | Quarztechnik夸克晶振 |
| 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3218.4320FDT1I20M | Quarztechnik夸克晶振 |
| 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3220.0000FDT1I20M | Quarztechnik夸克晶振 |
| 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3224.0000FDT1I20M | Quarztechnik夸克晶振 |
| 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3225.0000FDT1I20M | Quarztechnik夸克晶振 |
| 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3227.0000FDT1I20M | Quarztechnik夸克晶振 |
