Rakon晶体谐振器,QESM07110DT101014.7456MHZ,移动通讯6G晶振

产品简介

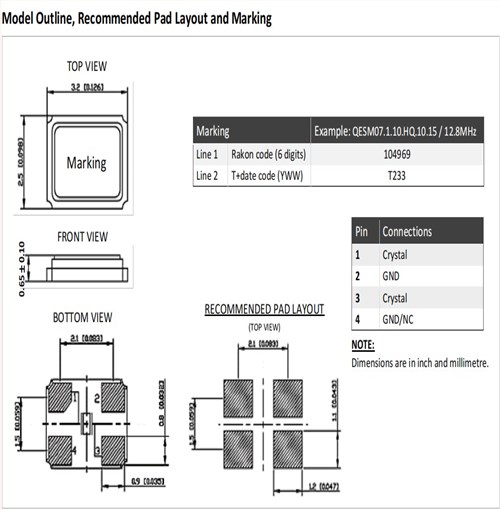

Rakon晶体谐振器,QESM07110DT101014.7456MHZ,移动通讯6G晶振，新西兰Rakon瑞康晶振，型号：QESM07，编码为：QESM07110DT101014.7456MHZ，频率为：14.7456MHz，小体积晶振尺寸：3.2x2.5mm封装，SMD石英晶体，石英晶体谐振器，四脚贴片晶振，无源晶振，石英晶振，晶体谐振器，无铅晶振，贴片石英晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。3225晶振被广泛应用于：移动通讯设备，无线局域网，蓝牙模块，物联网，汽车电子，车载控制器，医疗设备，安防设备，智能手机，平板电脑，数码电子，家用电器等应用。

产品详情

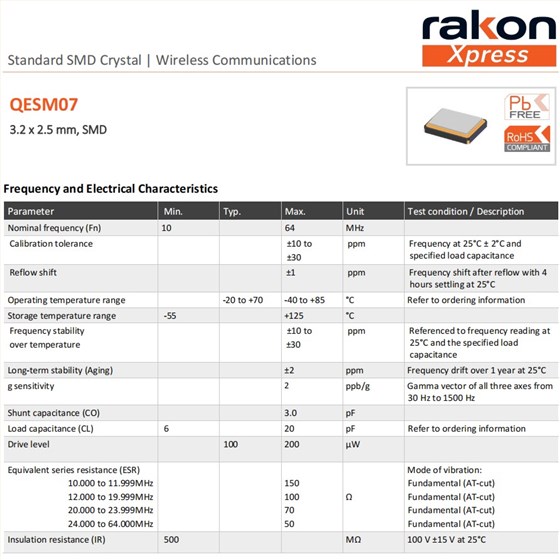

Rakon晶体谐振器,QESM07110DT101014.7456MHZ,移动通讯6G晶振参数表

Parameter	Min	Typ	Max	Unit	Test condition / Description
Nominal frequency (Fn)	14.7456			MHz
Calibration tolerance			±10 to ±30	ppm	Frequency at 25°C ± 2°C and specified load capacitance
Reflow shift			±1	ppm	Frequency shift after reflow with 4 hours settling at 25°C
Operating temperature range		-20 to +70	-40 to +85	°C	Refer to ordering information
Storage temperature range	-55		+125	°C
Frequency stability over temperature			±10 to ±30	ppm	Referenced to frequency reading at 25°C and the specified load capacitance
Long-term stability (Aging)			±2	ppm	Frequency drift over 1 year at 25°C
g sensitivity			2	ppb/g	Gamma vector of all three axes from 30 Hz to 1500 Hz
Shunt capacitance (CO)			3.0	pF
Load capacitance (CL)	6		20	pF	Refer to ordering information
Drive level		100	200	µW
Equivalent series resistance (ESR) 10.000 to 11.999MHz 12.000 to 19.999MHz 20.000 to 23.999MHz 24.000 to 64.000MHz			150 100 70 50	Ω	Mode of vibration: Fundamental (AT-cut) Fundamental (AT-cut) Fundamental (AT-cut) Fundamental (AT-cut)
Insulation resistance (IR)	500			MΩ	100 V ±15 V at 25°C
