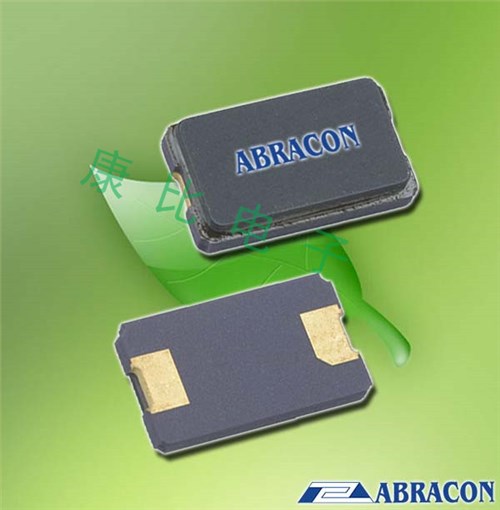

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通讯设备,24.576MHZ

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通讯设备,24.576MHZ，尺寸为6035mm,频率为24.576MHZ,艾博康晶振，Abracon晶振，美国进口晶振，贴片无源晶振，陶瓷晶振，SMD晶体，轻薄型晶振，无铅环保晶振，高质量晶振，高性能晶振，无线产品晶振，通讯设备晶振，电脑专用晶振，调制解调器晶振、轻薄型设备晶振，工业应用晶振。

无源晶体产品主要应用范围：电脑、调制解调器、通讯设备，轻薄的设备，工业广泛的温度应用.ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通讯设备,24.576MHZ.

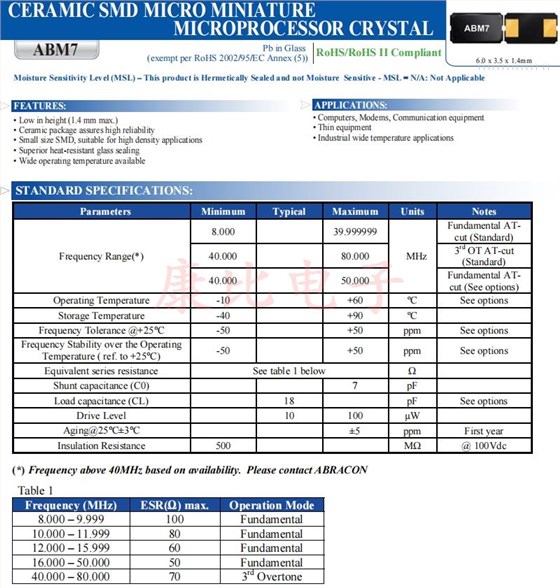

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通讯设备,24.576MHZ参数表

ANDARDSPECIFICATIONS:
Parameters	Minimum	Typical	Maximum	Units	Notes
FrequencyRange(*)	8.000		39.999999	MHz	FundamentalAT-cut(Standard)
	40.000		80.000		3rdOTAT-cut(Standard)
	40.000		50.000		FundamentalAT-cut(Seeoptions)
OperatingTemperature	-10		+60	ºC	See options
Storage Temperature	-40		+90	ºC
FrequencyTolerance@+25°C	-50		+50	ppm	See options
FrequencyStabilityovertheOperating Temperature(ref.to+25°C)	-50		+50	ppm	See options
Equivalentseries resistance	See table 1 below			Ω
Shuntcapacitance(C0)			7	pF
Loadcapacitance(CL)		18		pF	Seeoptions
DriveLevel		10	100	µW
Aging@25°C±3°C			±5	ppm	First year
InsulationResistance	500			MΩ	@100Vdc

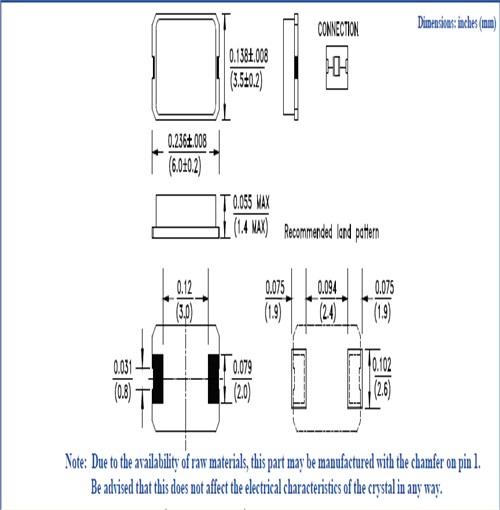

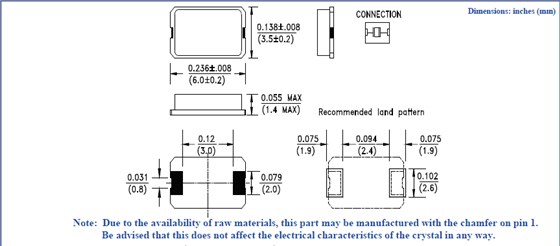

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通讯设备,24.576MHZ尺寸图

ABM7-24.576MHZ-D2Y-T,ABM7晶振特点：

•高度低(最大1.4毫米)
•陶瓷封装确保高可靠性
•小尺寸贴片，适合高密度应用
•优越的耐热玻璃密封
•工作温度范围广
