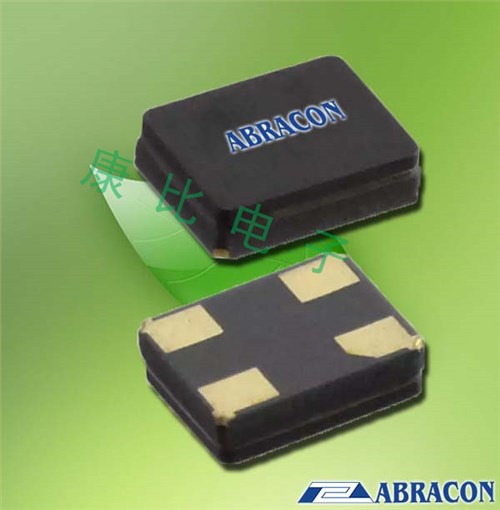

ABM3B-12.288MHZ-B-4-Y-T,5032mm,Abracon通信设备晶振，美国进口晶振，Abracon晶振，艾博康晶振，型号：ABM3B系列，编码为：ABM3B-12.288MHZ-B-4-Y-T，频率为：12.288MHz，频率稳定性：±30ppm，频率容差：±30ppm，负载电容：18pF，工作温度范围：-20℃至+70℃，是一款小体积晶振尺寸：5.0x3.2x1.1mm，四脚贴片晶振，石英晶振，石英晶体谐振器，SMD晶体，无源晶振，无铅环保晶振。具有超小型，轻薄型，高品质，高可靠性等特点。应用于：移动电话晶振，寻呼机，通信设备晶振，测试设备晶振，高密度的应用程序，PCMCIA和无线应用程序。
ABM3B-12.288MHZ-B-4-Y-T,5032mm,Abracon通信设备晶振，产品特点：
小型尺寸：5.0x3.2x1.1mm贴片晶振
基本的模式，适合回流
具有紧密稳定性，接缝密封
陶瓷封装和金属盖保证了高精度和可靠性
ABM3B-12.288MHZ-B-4-Y-T,5032mm,Abracon通信设备晶振,参数表
| ABRACON P/N | ABM3B Series |
| Frequency Range | 12.288MHz (Fundamental |
| 50. 1MHz - 125MHz (3rd overtone) | |
| Operation Mode | Fundamental or 3rd overtone |
| Operating Temperature | - 10°C to + 60°C (see options) |
| Storage Temperature | - 40°C to + 85°C |
| Frequency Tolerance @ 25°C | ± 50 ppm max. (see options) |
| Frequency Stability over the | |
| Operating Temperature | |
| (Ref to + 25°C) | ± 50 ppm max. (see options) |
| Equivalent Series Resistance | See table 1 |
| Shunt Capacitance C0 | 7 pF max. |
| Load Capacitance CL | 18 pF (see options) |
| Drive Level | 100 µW max., 10 µW typical |
| Aging (First Year) @ 25°C ± 3°C | ± 5ppm max. |
| Insulation Resistance | 500 MΩ min at 100Vdc ± 15 V |
ABM3B-12.288MHZ-B-4-Y-T,5032mm,Abracon通信设备晶振,尺寸图
| 产品编码 | 晶振厂家 | 型号 | 频率 | 长度 | 宽度 | 高度 |
| ABM3B-10.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 10 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-11.0592MHZ-10-1-U-T | Abracon晶振 | ABM3B | 11.0592 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-11.0592MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 11.0592 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-12-B4H-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-12-N2Y-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-B2-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.000MHZ-D4Y-T | Abracon晶振 | ABM3B | 12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.1875MHZ-10-D4-T | Abracon晶振 | ABM3B | 12.1875 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.288MHZ-B2-T | Abracon晶振 | ABM3B | 12.288 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-12.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.000MHZ-B2-T | Abracon晶振 | ABM3B | 13 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.0625MHZ-10-D4-T | Abracon晶振 | ABM3B | 13.0625 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.500MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.5 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.560MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.56 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.560MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 13.56 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.560MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 13.56 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.824MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.824 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-13.824MHZ-B2-T | Abracon晶振 | ABM3B | 13.824 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.31818MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.31818 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.31818MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 14.31818 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.31818MHZ-B2-T | Abracon晶振 | ABM3B | 14.31818 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.400MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.4 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.7456MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.7456 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.7456MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 14.7456 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-14.7456MHZ-E-4Z-T | 艾博康晶振 | ABM3B | 14.7456 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-15.360MHZ-10-1-U-T | Abracon晶振 | ABM3B | 15.36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-15.360MHZ-B2-T | Abracon晶振 | ABM3B | 15.36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-155-12.800MHZ-T | Abracon晶振 | ABM3B | 12.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-16-R50-N1G-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.000MHZ-B2-T | Abracon晶振 | ABM3B | 16 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.384MHZ-B2-T | Abracon晶振 | ABM3B | 16.384 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-16.934MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 16.934 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-10-1-U-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-18.432MHZ-B2-T | Abracon晶振 | ABM3B | 18.432 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.200MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.2 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.200MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 19.2 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.200MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 19.2 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.440MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.44 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.680MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.68 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-19.800MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-20.000MHZ-B2-T | Abracon晶振 | ABM3B | 20 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-22.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 22 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-B2-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-B4Y-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-D-1-W-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.000MHZ-R60-D-1-W-T | Abracon晶振 | ABM3B | 24 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-10-1-U-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-20-E-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-24.576MHZ-B2-T | Abracon晶振 | ABM3B | 24.576 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-20-D-4-H-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-22-R50-E4H-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-B2-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-B4U-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-D2Y-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-D4Y-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-25.000MHZ-N-2-X-T | Abracon晶振 | ABM3B | 25 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-26.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 26 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-26.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 26 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-26.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 26 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-B2-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.000MHZ-D4-T | Abracon晶振 | ABM3B | 27 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-B2H-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-D1G-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-10-D2H-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-27.120MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 27.12 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-28.63636MHZ-10-1-U-T | Abracon晶振 | ABM3B | 28.63636 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-28.63636MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 28.63636 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-28.63636MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 28.63636 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-29.4912MHZ-10-1-U-T | Abracon晶振 | ABM3B | 29.4912 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-30.000MHZ-B2-T | Abracon晶振 | ABM3B | 30 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-32.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 32 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-32.000MHZ-B2-T | Abracon晶振 | ABM3B | 32 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-36.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-36.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 36 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-10-B-1-U-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-40.000MHZ-B2-T | Abracon晶振 | ABM3B | 40 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-44.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 44 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-48.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 48 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-48.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 48 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-48.000MHZ-B2-T | Abracon晶振 | ABM3B | 48 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-10-D-1-G-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-B-4-Y-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-B2-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
| ABM3B-8.000MHZ-D2Y-T | Abracon晶振 | ABM3B | 8 MHz | 5mm | 3.2mm | 1.1mm |
