406系列有源晶振,米利伦TCXO晶振,3225mm小体积振荡器

产品简介

406系列有源晶振,米利伦TCXO晶振,3225mm小体积振荡器，尺寸3.2x2.5mm，频率10~52MHZ，加拿大进口晶振，MTI-milliren石英振荡器，3225mm温补振荡器，四脚有源振荡器，石英温补晶振，TCXO晶振，贴片温补振荡器，高质量有源晶振，高性能有源晶振，低损耗有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，室外基站有源晶振，北斗定位有源晶振，通讯模块有源晶振，智能家居有源晶振，网络设备有源晶振，以太网有源晶振，具有超高的可靠性能。

温度补偿晶振产品超级适合用于室外基站，北斗定位，通讯模块，智能家居，网络设备，以太网等应用领域。406系列有源晶振,米利伦TCXO晶振,3225mm小体积振荡器.

产品详情

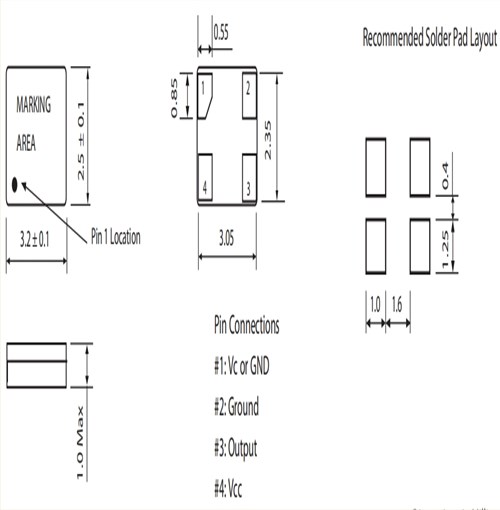

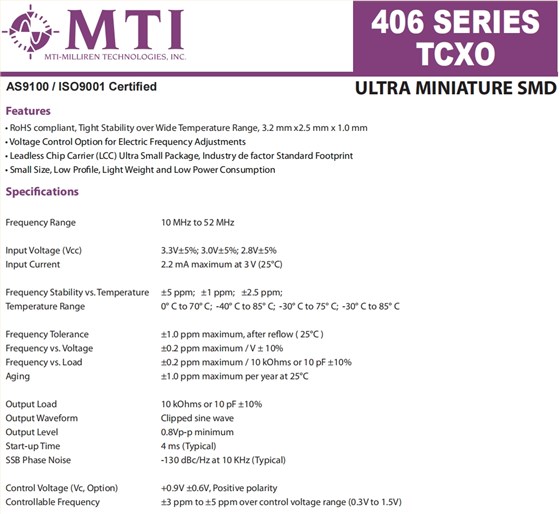

406系列有源晶振,米利伦TCXO晶振,3225mm小体积振荡器 参数表

Frequency Range			10 MHz to 52 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 2.8V±5% 2.2 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±5 ppm;±1 ppm;±2.5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;-30° C to 75° C;-30° C to 85° C ±1.0 ppm maximum, after reflow ( 25°C )
Frequency Tolerance
Frequency vs. Voltage			±0.2 ppm maximum / V ± 10%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 4 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-130 dBc/Hz at 10 KHz (Typical) +0.9V ±0.6V, Positive polarity
Control Voltage (Vc, Option)
Controllable Frequency			±3 ppm to ±5 ppm over control voltage range (0.3V to 1.5V)
