频率：32.768KHZ
尺寸：1.6x1.2mm
DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03，尺寸1.6x1.2mm，频率32.768KHZ，输出逻辑CMOS，日本进口晶振，KDS贴片振荡器，32.768KHZ有源晶振，贴片有源振荡器，四脚有源晶振，1612mm有源振荡器，有源晶体振荡器，低电压有源晶振，低功耗有源晶振，低耗能有源晶振，低相位有源晶振，低抖动有源振荡器，高品质有源晶振，无线模块有源晶振，PC设备有源晶振，汽车导航有源晶振，汽车音响有源晶振，多媒体设备有源晶振，工业应用有源晶振，民用设备有源晶振，测量设备有源晶振，具有超高的耐压性能。
32.768K有源晶振产品比较常用于近距离无线模块、PC、汽车导航、汽车音响、多媒体设备、工业用测量设备、一般民用设备等应用。DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03.
DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03，尺寸1.6x1.2mm，频率32.768KHZ，输出逻辑CMOS，日本进口晶振，KDS贴片振荡器，32.768KHZ有源晶振，贴片有源振荡器，四脚有源晶振，1612mm有源振荡器，有源晶体振荡器，低电压有源晶振，低功耗有源晶振，低耗能有源晶振，低相位有源晶振，低抖动有源振荡器，高品质有源晶振，无线模块有源晶振，PC设备有源晶振，汽车导航有源晶振，汽车音响有源晶振，多媒体设备有源晶振，工业应用有源晶振，民用设备有源晶振，测量设备有源晶振，具有超高的耐压性能。
32.768K有源晶振产品比较常用于近距离无线模块、PC、汽车导航、汽车音响、多媒体设备、工业用测量设备、一般民用设备等应用。DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03.
DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03 参数表
| 项目 | 特性代码 |
输出频率 ( kHz ) |
符号 | 规格值 | 单位 | 条件 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
电源 电压 |
频率 允许偏差 |
最小。 | typ | 最大。 | ||||||
| 电源电压 | A | ＊ | ＊ | V抄送 | +3.0 | +3.3 | +3.6 | V | ||
| M | +2.7 | +3.0 | +3.3 | |||||||
| B | +2.6 | +2.8 | +3.0 | |||||||
| C | +2.25 | +2.5 | +2.75 | |||||||
| D | +1.6 | +1.8 | +2.0 | |||||||
|
频率允许偏差 (包括常温偏差) |
＊ | Y | ＊ | f_tol | - | - | ±100 | ×10-6 | -40~+125℃ |
-10~+70℃ (标准工作温度范围) |
| ＊ | Z | - | - | ±80 | -40~+110℃ | |||||
| ＊ | A | - | - | ±100 | -40~+85℃ | |||||
| ＊ | B | - | - | ±50 | ||||||
| ＊ | C | - | - | ±30 | -20~+70℃ | |||||
| ＊ | D | - | - | ±25 | -10~+70℃ | |||||
| ＊ | E | - | - | ±20 | ||||||
| 消耗电流 | ＊ | ＊ | ＊ | I抄送 | - | 18 | 32 | μA | No Load | |
| 待机时电流( #1针" l " ) | ＊ | ＊ | ＊ | I_std | - | - | 5 | μA | ||
| 输出负载 | ＊ | ＊ | ＊ | L_CMOS | - | - | 15 | pF | ||
| 波形对称 | ＊ | ＊ | ＊ | SYM | 45 | 50 | 55 | % | 50% V抄送级别 | |
| 0电平电压 | ＊ | ＊ | ＊ | VOL | - | - | V抄送×0.1 | V | ||
| 1电平电压 | VOH | V抄送×0.9 | - | - | ||||||
| 上升时间、下降时间 | ＊ | ＊ | ＊ | tr，tf | - | - | 50 | 美国全国广播公司 | 10~90% V抄送级别 | |
| OE引脚0电平输入电压 | ＊ | ＊ | ＊ | VIL | - | - | V抄送×0.3 | V | ||
| OE引脚1电平输入电压 | ＊ | ＊ | ＊ | VIH | V抄送×0.7 | - | - | |||
| 输出禁用时间 | ＊ | ＊ | ＊ | tPLZ | - | - | 1 | μs | ||
| 输出使能时间 | ＊ | ＊ | ＊ | tPZL | - | - | 10 | 微软 | ||
| 包装单位(1) | 3000pcs./reel(φ180 ) | |||||||||

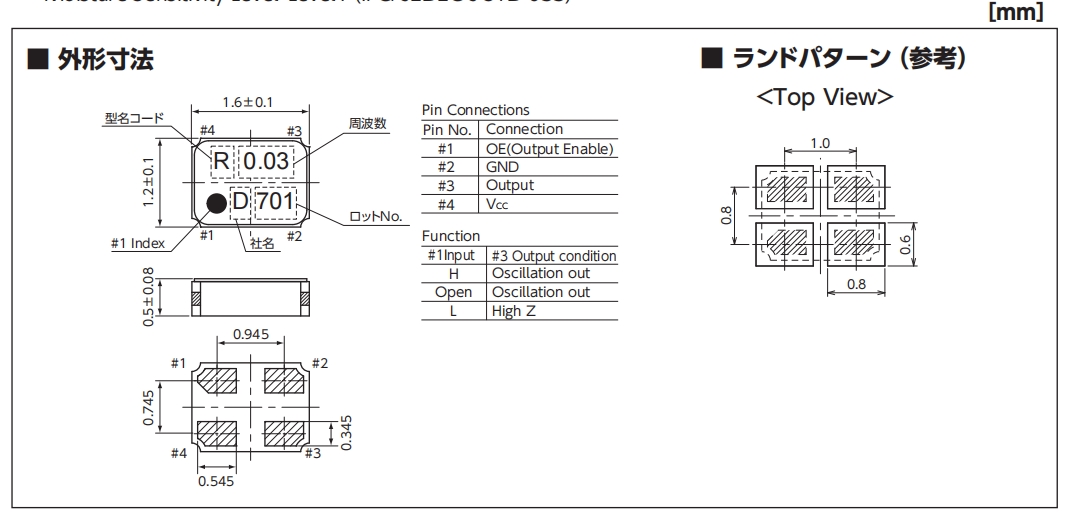

DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03 尺寸图
DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03
产品特性：
1612尺寸、厚度0.5mm、支持超小型、超薄型
输出频率: 32.768K晶振
电源电压: 1.8V/2.5V/2.8V/3.0V/3.3V
低功耗: 18μA typ.(32.768kHz )
采用AT切振子稳定的频率偏差
支持-40 ~+125℃的广阔工作温度范围
CMOS输出
带三态功能
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM |
| KDS晶振 | 1AJ073726AV | SMD-49 | 7.3728M | |||
| KDS晶振 | 1AJ099976A | SMD-49 | 9.9975M | |||
| KDS晶振 | 1AR11059CEB | SMD-49 | 11.0592M | 16PF | 30PPM | |
| KDS晶振 | 1AJ160006BL | SMD-49 | 16.000M | |||
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | |||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | 30PPM | ||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF | 30PPM |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF | 30ppm |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | ||
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF | 30PPM |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000M | 12.9PF | 20PPM |
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000M | 10PF | 20PPM |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000M | 10PF | 30PPM |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000M | 12PF | 20PPM |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000M | 16PF | 50PPM |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000M | 10PF | 30ppm |
| KDS晶振 | 1AJ270002CH | SMD-49 | 11*4.6 | 27.000M | 10PF | 20ppm |
| KDS晶振 | 1AJ270002DT | SMD-49 | 11*4.6 | 27.000M | 12PF | 15ppm |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400M | 12PF | 50ppm |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893M | 10PF | 20ppm |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF | 20ppm |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF | 50PPM |
| 日本大真空晶振 | SB103CE1MM | SINGLE | ||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | |||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | ||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | ||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | ||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | |
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | ||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | ||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | |
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V | 1.5ppm |
| KDS晶振 | 1XXD24000MBA | DSB211SDN | 2016 | 24.000M | ||
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | ||
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | ||
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | ||
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | ||
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | ||
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm |
