频率：24.576MHZ
尺寸：1.6x1.2mm
FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振，尺寸1.6x1.2mm，频率24.576MHZ，美国FOX晶振，福克斯无源晶振，欧美进口晶振，石英贴片晶振，石英晶体谐振器，四脚贴片晶振，1612小体积晶振，无源SMD晶体，SMD晶振，无源晶振，贴片晶振，水晶振动子，高质量石英晶振，轻薄型晶振，高性能晶振，低损耗晶振，蓝牙专用晶振，智能家居专用晶振，平板电脑石英晶振，智能音响晶振，移动通信晶振，6G无线设备晶振，6G以太网专用晶振，便携式设备晶振，仪器设备晶振，数字视频专用晶振，娱乐设备晶振，SMD晶振产品具备低损耗高质量的特点.非常适合用于蓝牙，智能家居，平板电脑，智能音响，移动通信，6G无线设备，6G以太网，便携式设备，仪器设备，数字视频等领域.FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振.

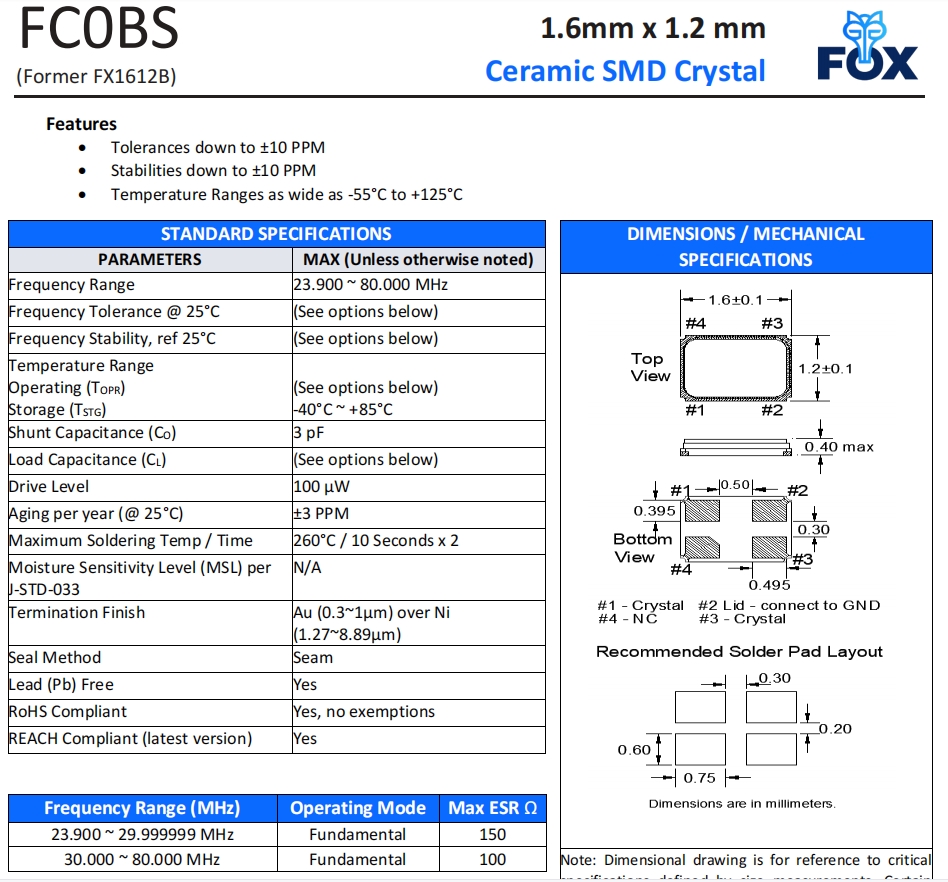

FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振 参数表
| STANDARD SPECIFICATIONS | ||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||
| Frequency Range | 24.5760 MHz | |||||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | |||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | |||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -40°C ~ +85°C |
|||||||||||||||
| Shunt Capacitance (CO) | 3 pF | |||||||||||||||
| Load Capacitance (CL) | (See options below) | |||||||||||||||
| Drive Level | 100 µW | |||||||||||||||
| Aging per year (@ 25°C) | ±3 PPM | |||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | |||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | |||||||||||||||
| Termination Finish |
Au (0.3~1µm) over Ni (1.27~8.89µm) |
|||||||||||||||
| Seal Method | Seam | |||||||||||||||
| Lead (Pb) Free | Yes | |||||||||||||||
| RoHS Compliant | Yes, no exemptions | |||||||||||||||
| REACH Compliant (latest version) | Yes | |||||||||||||||

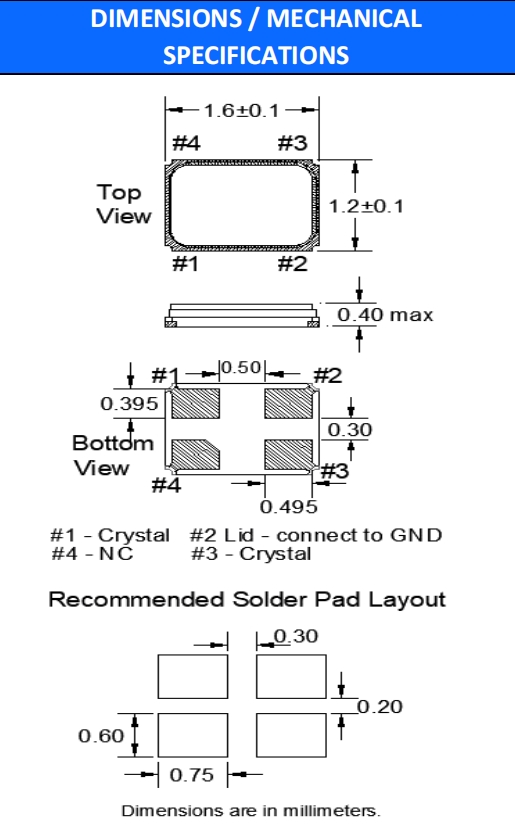

FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振 尺寸图

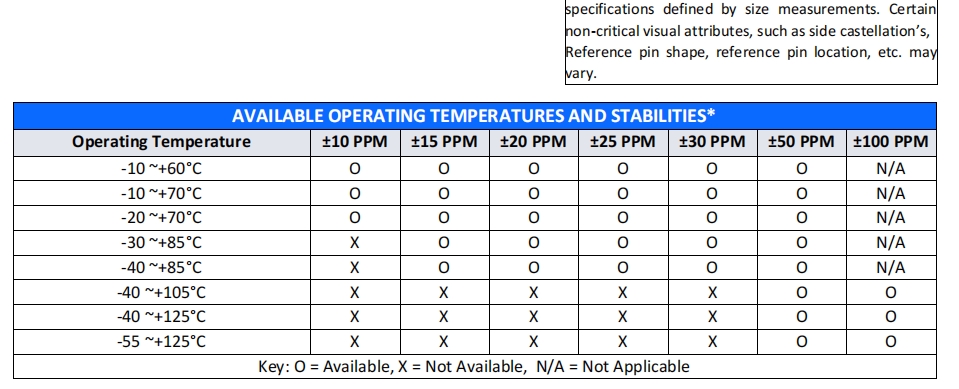

无源晶体产品特征:
公差低至10PPM
稳定性低至10PPM
温度范围宽至-55°C至+125°C
