7050mm-PXF620009-156.25MHZ-LVDS-Diodes

频率：156.25MHZ

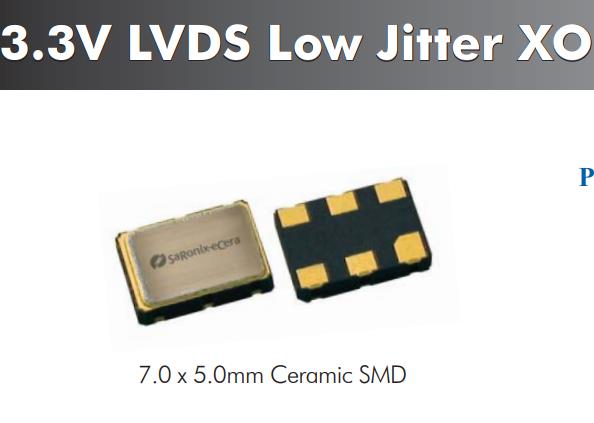

尺寸：7.0*5.0mm

7050mm-PXF620009-156.25MHZ-LVDS-Diodes,尺寸为7050mm,频率为156.25MHZ,支持输出LVDS,电压3.3V,百利通亚陶晶振，台湾进口晶振，差分晶振，有源晶振，石英差分晶振，低抖动晶振，低电压晶振，低相位晶振，网络设备晶振，光纤通道晶振，服务器晶振，高清视频系统晶振，7050mm有源晶振，LVDS晶振，XO时钟振荡器，低PXC500011晶振，PXA000009晶振，7050mm-PXF620009-156.25MHZ-LVDS-Diodes.

PX系列OSC振荡器是高速的理想选择，要求低抖动的应用，包括: 1/10千兆以太网 2/4/10G光纤通道，串行连接SCSI (SAS) 服务器和存储平台，SONET/SDH线路卡，无源光网络(PON)设备，高清视频系统等领域。

订购热线：0755-27876201

7050mm-PXF620009-156.25MHZ-LVDS-Diodes 参数表

Parameter Min. Typ. Max. Units Notes

Output Frequency

38.88

162

MHz

As speci?ed

Supply Voltage

2.97

3.3

3.63

Supply Current, Enabled

Supply Current, Disabled

0.03

Frequency Stability

±20 to ±50

ppm

See Note 1 below

Operating Temperature Range

--20

+70

°C

Commercial (standard)

--40

+85

Industrial (standard)

Output Logic 0, VOL

0.9

1.1

Output Logic 1, VOH

1.43

1.6

Output Amplitude Differential

500

900

Output Load

100Ω +5pF across the outputs

output requires termination

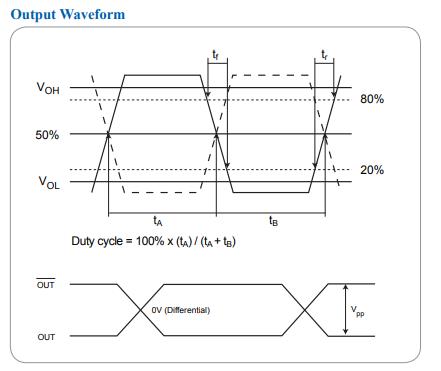

Duty Cycle

measured 50% of waveform

Rise and Fall Time

500

850

measured 20/80% of waveform

Jitter, Phase

0.5

ps RMS (1- σ)

12kHz to 20MHz frequency band

Jitter, Total

ps pk–pk

100,000 random periods

Parameter

Min.

Typ.

Max.

Units

Notes

Input Voltage (pin OE), Output Enable

0.7

or open

Input Voltage (pin OE), Output Disable (low power standby)

0.3

Outpus disabled to Hi-Z

Internal Pullup Resistance

Output Disable Delay

200

Output Enable Delay

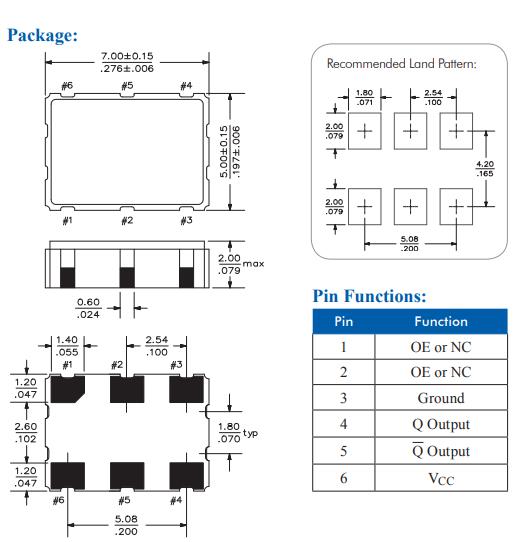

7050mm-PXF620009-156.25MHZ-LVDS-Diodes 尺寸图包装图

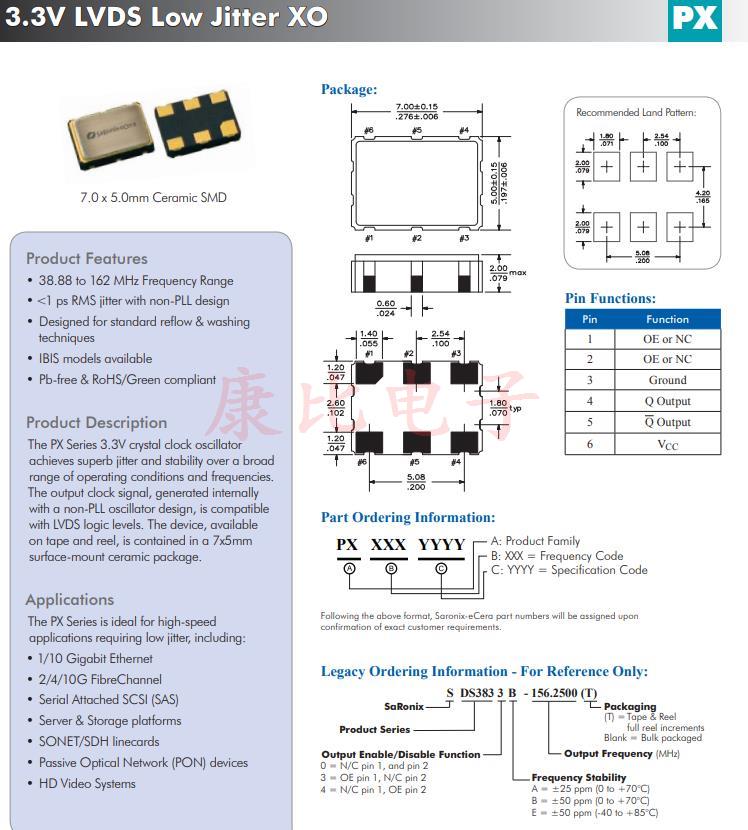

PXF620009晶振 产品特点：

38.88至162MHz频率范围

采用非PLL设计时，均方根抖动小于1ps

专为标准回流和清洗而设计，技术

提供IBIS型号

无铅且符合RoHS/绿色标准

更多相关百利通亚陶晶振型号

原厂代码	品牌	型号	频率	频率稳定度	工作温度
JX7011D0070.656000	Diodes晶振	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
PXC500007	Diodes晶振	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
JX5021E0156.250000	Diodes晶振	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX7011E0059.000000	Diodes晶振	SaRonix-eCera™ JX	59MHz	±50ppm	-40°C ~ 85°C
JX7011B0044.736000	Diodes晶振	SaRonix-eCera™ JX	44.736MHz	±25ppm	-20°C ~ 70°C
JX5011C0120.000000	Diodes晶振	SaRonix-eCera™ JX	120MHz	±50ppm	-20°C ~ 70°C
JX7012D0025.001875	Diodes晶振	SaRonix-eCera™ JX	25.001875MHz	±25ppm	-40°C ~ 85°C
JX7011E0091.500000	Diodes晶振	SaRonix-eCera™ JX	91.5MHz	±50ppm	-40°C ~ 85°C
JX7011D0104.000000	Diodes晶振	SaRonix-eCera™ JX	104MHz	±25ppm	-40°C ~ 85°C
JX5011C0056.000000	Diodes晶振	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
PXA000010	Diodes晶振	SaRonix-eCera™ PX	100MHz	±50ppm	-20°C ~ 70°C
PXA620006	Diodes晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-20°C ~ 70°C
PXA620008	Diodes晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-20°C ~ 70°C
PXF000010	Diodes晶振	SaRonix-eCera™ PX	150MHz	±50ppm	-20°C ~ 70°C
PXF000011	Diodes晶振	SaRonix-eCera™ PX	150MHz	±50ppm	-20°C ~ 70°C
PXF620009	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-20°C ~ 70°C
PXF620014	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-20°C ~ 70°C
PXA000012	Diodes晶振	SaRonix-eCera™ PX	100MHz	±50ppm	-40°C ~ 85°C
PXA620004	Diodes晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-40°C ~ 85°C
PXA620005	Diodes石英晶振	SaRonix-eCera™ PX	106.25MHz	±50ppm	-40°C ~ 85°C
PXC500011	Diodes晶振	SaRonix-eCera™ PX	125MHz	±50ppm	-40°C ~ 85°C
PXF620011	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-40°C ~ 85°C
PXF620012	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±50ppm	-40°C ~ 85°C
PXA000011	Diodes晶振	SaRonix-eCera™ PX	100MHz	±25ppm	-20°C ~ 70°C
PXC500008	Diodes晶振	SaRonix-eCera™ PX	125MHz	±25ppm	-20°C ~ 70°C
PXC500009	Diodes晶振	SaRonix-eCera™ PX	125MHz	±25ppm	-20°C ~ 70°C
PXF550003	Diodes晶振	SaRonix-eCera™ PX	155.52MHz	±25ppm	-20°C ~ 70°C
PXF620010	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±25ppm	-20°C ~ 70°C
PXA000009	Diodes晶振	SaRonix-eCera™ PX	100MHz	±20ppm	-20°C ~ 70°C
JX5021E0312.500000	Diodes晶振	SaRonix-eCera™ JX	312MHz	±50ppm	-40°C ~ 85°C
PXF620013	Diodes晶振	SaRonix-eCera™ PX	156.25MHz	±25ppm	-40°C ~ 85°C
PXC500010	Diodes晶振	SaRonix-eCera™ PX	125MHz	±50ppm	-40°C ~ 85°C
