SMX-5S无源晶体 33MHZ医疗晶振 6G无线网络晶振瑞士石英通晶振

产品简介

SMX-5S无源晶体 33MHZ医疗晶振 6G无线网络晶振瑞士石英通晶振，QuartzCom Crystal，QuartzCom无源贴片晶振，石英晶体谐振器，石英贴片晶振，贴片无源晶振，无源SMD晶振，SMD晶振，石英晶体，SMD晶振，水晶振动子，石英贴片晶体，3225石英晶振，高性能贴片晶振，高精度石英晶振，高品质贴片晶振，电信应用晶振，物联网专用晶振，仪器仪表晶振，航空电子晶振，医疗产品专用晶振，汽车晶振，产品具备高性能的特点.

在极端严酷的环境条件下,石英晶振也能正常工作,具有稳定的起振特性,高耐热性,耐热循环性和耐振性等.产品很适合用于电信、汽车、医疗、航空电子等领域。SMX-5S无源晶体 33MHZ医疗晶振 6G无线网络晶振瑞士石英通晶振.

产品详情

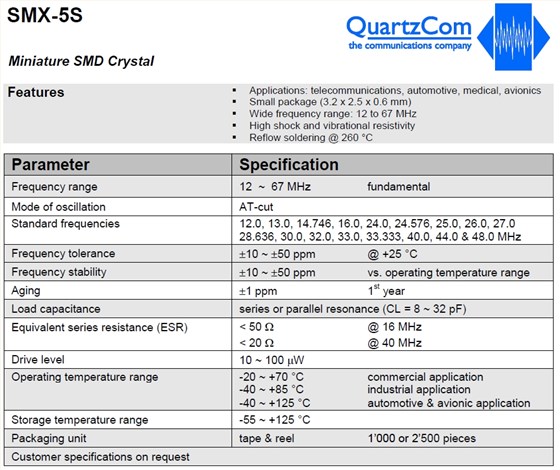

SMX-5S无源晶体 33MHZ医疗晶振 6G无线网络晶振瑞士石英通晶振 参数表

Parameter	Specification
Frequency range	33 MHzfundamental
Mode of oscillation	AT-cut
Standard frequencies	12.0, 13.0, 14.746, 16.0, 24.0, 24.576, 25.0, 26.0, 27.0 28.636, 30.0, 32.0, 33.0, 33.333, 40.0, 44.0 & 48.0 MHz
Frequency tolerance	土10 ~土50 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 50Ω < 20Ω	@ 16 MHz @ 40 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’500 pieces
Customer specifications on request
