美国NEL晶体,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振动子

产品简介

美国NEL晶体,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振动子,耐尔进口晶振,石英贴片晶振,四脚无源晶振,SMD石英晶体,石英振动子,贴片无源晶振,32MHZ无源晶振,6035mm轻薄晶振,NFX-32.000-B-A-A-B-16晶振,尺寸6.0x3.5mm,频率32MHZ,高精度晶振,高性能晶振,低损耗晶振,低老化晶振,寻呼机晶振,蜂窝电话晶振,移动设备晶振,娱乐设备晶振,照相机晶振.

产品详情

美国NEL晶体,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振动子特点:

符合NEL晶振的要求产品可靠性

用户指定的公差可获得的

无引线陶瓷封装,适用于回流焊

宽频率范围8.0MHz至80.0MHz自动安装

抗冲击性：跌落试验在2mm不锈钢上3次75厘米高的板

接缝密封

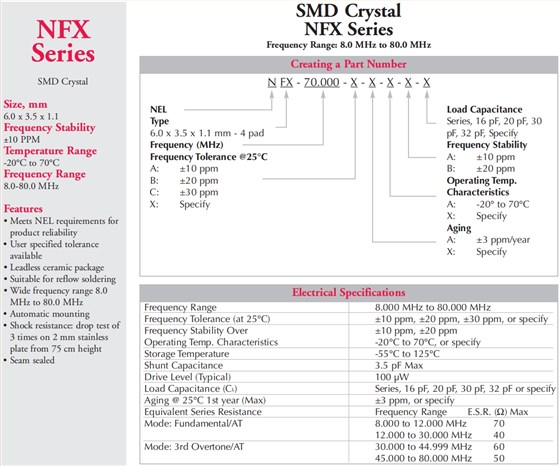

美国NEL晶体,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振动子 参数表

Electrical Specifications
Frequency Range					32.000 MHz
Frequency Tolerance (at 25°C)					±10 ppm, ±20 ppm, ±30 ppm, or specify
Frequency Stability Over Operating Temp. Characteristics					±10 ppm, ±20 ppm -20°C to 70°C, or specify
Storage Temperature					-55°C to 125°C
Shunt Capacitance					3.5 pF Max
Drive Level (Typical)					100 µW
Load Capacitance (CL)					Series, 16 pF, 20 pF, 30 pF, 32 pF or specify
Aging @ 25°C 1st year (Max)					±3 ppm, or specify
Equivalent Series Resistance					Frequency RangeE.S.R. (Ω) Max
Mode: Fundamental/AT					8.000 to 12.000 MHz70 12.000 to 30.000 MHz40
Mode: 3rd Overtone/AT					30.000 to 44.999 MHz60 45.000 to 80.000 MHz50
