HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ,美国HEC晶振,进口无源晶振,6035mm贴片晶振,石英振动子,4脚晶振,石英贴片晶振,30MHZ贴片无源晶振,尺寸6.0x3.5mm,频率30MHZ,负载12pF,工作温度-40+85°C,高频晶振,低老化晶振,低损耗晶振,低耗能晶振,高性能晶振,通讯产品晶振,笔记本电脑晶振,娱乐设备晶振,小家电晶振,影音系统晶振,物联网晶振,无线晶振.
HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ特点:
12.8MHz到80MHz的宽频率范围。
陶瓷外壳确保了卓越的老化特性，
并允许无源晶体是紧凑型无线等应用的理想选择通讯产品，PDA，笔记本电脑。
体积仅0.023cc,提供高频基本模式
宽频率范围,卓越的老化特性.

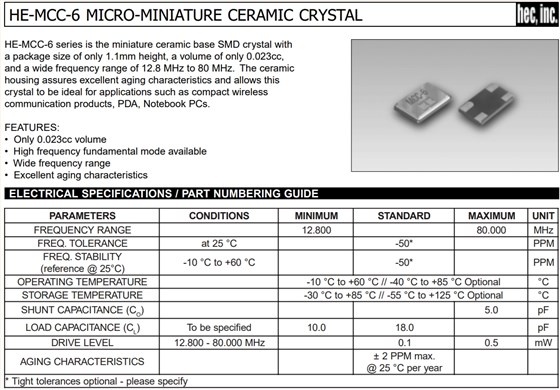

HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ 参数表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | |||||||||||||||||||||
| PARAMETERS | CONDITIONS | MINIMUM | STANDARD | MAXIMUM | UNIT | ||||||||||||||||
| FREQUENCY RANGE | 30.000 |
|
MHz | ||||||||||||||||||
| FREQ. TOLERANCE | at 25 °C | -50* | PPM | ||||||||||||||||||
|
FREQ. STABILITY (reference @ 25°C) |
-10 °C to +60 °C | -50* | PPM | ||||||||||||||||||
| OPERATING TEMPERATURE | -10 °C to +60 °C // -40 °C to +85 °C Optional | °C | |||||||||||||||||||
| STORAGE TEMPERATURE | -30 °C to +85 °C // -55 °C to +125 °C Optional | °C | |||||||||||||||||||
| SHUNT CAPACITANCE (CO) | 5.0 | pF | |||||||||||||||||||
| LOAD CAPACITANCE (CL) | To be specified | 10.0 | 18.0 | pF | |||||||||||||||||
| DRIVE LEVEL | 12.800 - 80.000 MHz | 0.1 | 0.5 | mW | |||||||||||||||||
| AGING CHARACTERISTICS |
± 2 PPM max. @ 25 °C per year |
||||||||||||||||||||
| * Tight tolerances optional - please specify | |||||||||||||||||||||

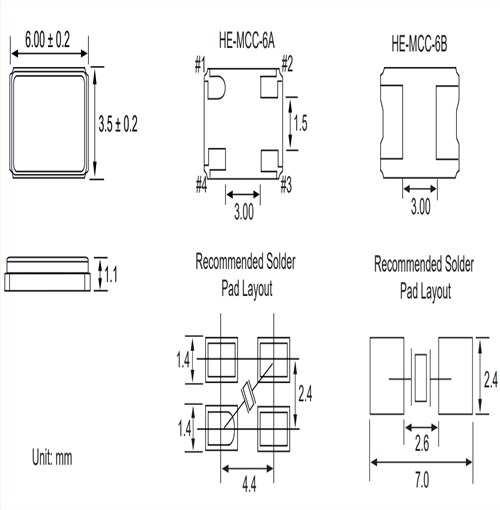

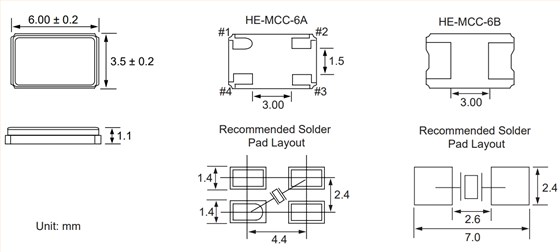

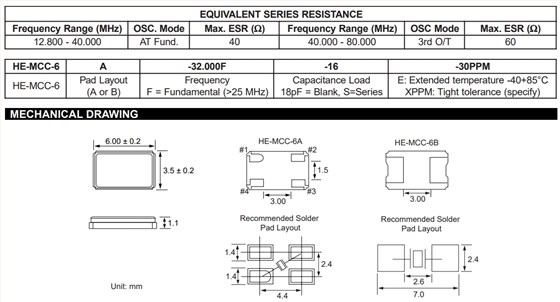

HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ 尺寸图
