DSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZ，尺寸7.0×5.0mm，频率48MHZ，欧美进口晶振，进口有源晶振，有源晶体振荡器，时钟振荡器，有源贴片晶振，7050mm有源振荡器，OSC振荡器，低电压有源晶振，低功耗有源晶振，低抖动有源晶振，低相位有源晶振，低相位有源晶振，便携式设备有源晶振，监控摄像头有源晶振，移动应用有源晶振，工业应用有源晶振，适合用于移动应用程序，消费类电子产品，便携式电子设备，DVR、CCTV、监控摄像头，低姿态应用，工业应用等应用。
DSC1001/3/4是一种基于硅MEMS的CMOS有源晶振系列，提供出色的抖动和在广泛供应范围内的稳定性性能电压和温度。设备的操作方式1 MHz至150 MHz，电源电压在1.8至3.3伏，温度范围高达-40°C至105°C。DSC1001/3/4包含一个全硅谐振器它非常强健，几乎不会受到压力的影响相关断裂，常见于基于晶体的振荡器。DSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZ.

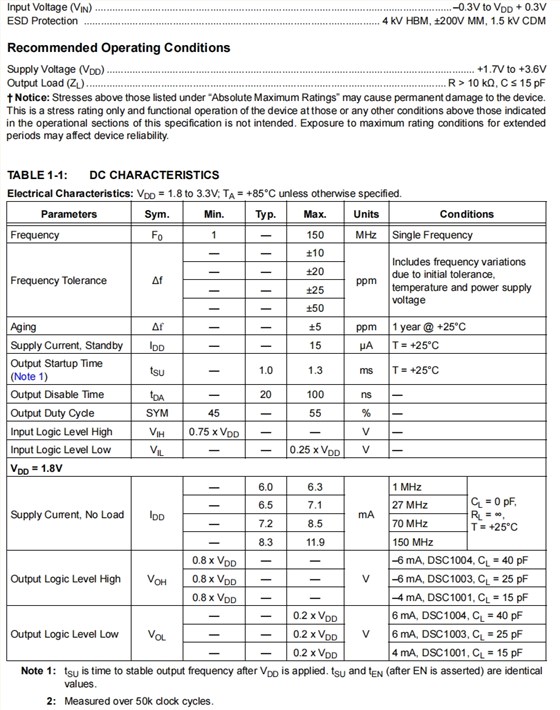

DSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZ 参数表
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||
| Frequency | F0 |
|
48 |
|
MHz | Single Frequency | ||||||||||
| Frequency Tolerance | Δf | ±10 | ppm |
Includes frequency variations due to initial tolerance, temperature and power supply voltage |
||||||||||||
| ±20 | ||||||||||||||||
| — | — | ±25 | ||||||||||||||
| ±50 | ||||||||||||||||
| Aging | Δf | ±5 | ppm | 1 year @ +25°C | ||||||||||||
| Supply Current, Standby | IDD | — | — | 15 | µA | T = +25°C | ||||||||||
|
Output Startup Time (Note 1) |
tSU | — | 1.0 | 1.3 | ms | T = +25°C | ||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | ||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | ||||||||||||
| Input Logic Level High | VIH | 0.75 x VDD | — | — | V | — | ||||||||||
| Input Logic Level Low | VIL | 0.25 x VDD | V | |||||||||||||
| VDD= 1.8V | ||||||||||||||||
| Supply Current, No Load | IDD | — | 6.0 | 6.3 | mA | 1 MHz |
CL= 0 pF, RL= ∞ , T = +25°C |
|||||||||
| 6.5 | 7.1 | 27 MHz | ||||||||||||||
| 7.2 | 8.5 | 70 MHz | ||||||||||||||
| — | 8.3 | 11.9 | 150 MHz | |||||||||||||
| Output Logic Level High | VOH | 0.8 x VDD | V | –6 mA, DSC1004, CL= 40 pF | ||||||||||||
| 0.8 x VDD | –6 mA, DSC1003, CL= 25 pF | |||||||||||||||
| 0.8 x VDD | — | — | –4 mA, DSC1001, CL= 15 pF | |||||||||||||
| Output Logic Level Low | VOL | — | — | 0.2 x VDD | V | 6 mA, DSC1004, CL= 40 pF | ||||||||||
| 0.2 x VDD | 6 mA, DSC1003, CL= 25 pF | |||||||||||||||
| — | — | 0.2 x VDD | 4 mA, DSC1001, CL= 15 pF | |||||||||||||
DSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZ 尺寸图
DSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZ
OSC晶振产品特性：
频率范围：1MHz至150MHz
卓越的温度稳定性
±10 ppm、±20ppm、±25ppm、±50ppm
工作电压-1.7至3.6伏
工作温度范围
外部工业–40°C至105°C
工业–40°C至85°C
商用–20°C至70°C
低工作和备用电流
-6 mA工作（1MHz）
-15µA待机（最大）
超小型占地面积
-2.5毫米x 2.0毫米x 0.85毫米
-3.2毫米x 2.5毫米x 0.85毫米
-5.0毫米x 3.2毫米x 0.85毫米
-7.0毫米x 5.0毫米x 0.85毫米
MIL-STD 883抗冲击和振动
无铅，RoHS，达到SVHC标准
AEC-Q100可靠性合格
