BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振，尺寸7.0×5.0mm，频率60MHZ，美国百利晶振，欧美进口晶振，进口无源晶振，石英贴片晶振，四脚贴片晶振，石英晶体谐振器，石英水晶振子，无源晶体，石英晶体，SMD贴片晶体，无源贴片晶振，无源石英晶体，轻薄型晶体，绿色环保晶振，高质量晶体，高性能晶振，低损耗晶振，低成本晶振，平板电脑专用晶振，仪器设备晶振，6G通信专用晶振，无线应用专用晶振，智能家电专用晶振，测试测量晶振，小型设备晶振，蓝牙音响晶振，具有超高的耐压性能以及可靠性能。
石英晶振产品很适合用于平板电脑，仪器设备，6G通信，无线应用，智能家电，测试测量，小型设备，蓝牙音响等领域。BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振.

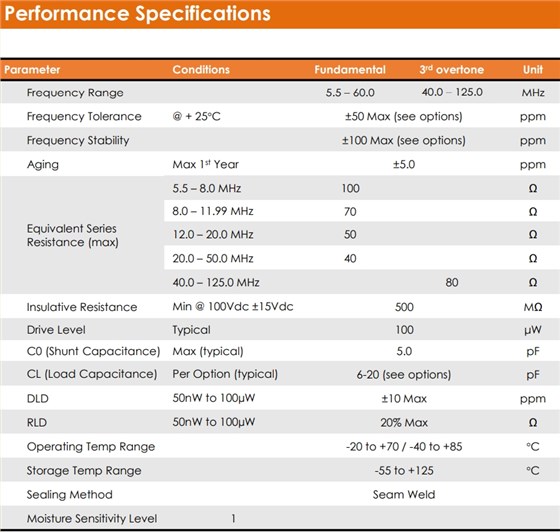

BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振 参数表
| Parameter | ConditionsFundamental3rdovertoneUnit | |||||||||||||||||||
| Frequency Range | 60.0MHz | |||||||||||||||||||
| Frequency Tolerance | @ + 25。C±50 Max (see options)ppm | |||||||||||||||||||
| Frequency Stability | ±100 Max (see options)ppm | |||||||||||||||||||
| Aging | Max 1stYear±5.0ppm | |||||||||||||||||||
|
Equivalent Series Resistance (max) |
5.5 – 8.0 MHz100Ω | |||||||||||||||||||
| 8.0 – 11.99 MHz70Ω | ||||||||||||||||||||
| 12.0 – 20.0 MHz50Ω | ||||||||||||||||||||
| 20.0 – 50.0 MHz40Ω | ||||||||||||||||||||
| 40.0 – 125.0 MHz80Ω | ||||||||||||||||||||
| Insulative Resistance | Min @ 100Vdc ±15Vdc500MΩ | |||||||||||||||||||
| Drive Level | Typical100μW | |||||||||||||||||||
| C0 (Shunt Capacitance) | Max (typical)5.0pF | |||||||||||||||||||
| CL (Load Capacitance) | Per Option (typical)6-20 (see options)pF | |||||||||||||||||||
| DLD | 50nW to 100µW±10 Maxppm | |||||||||||||||||||
| RLD | 50nW to 100µW20% MaxΩ | |||||||||||||||||||
| Operating Temp Range | -20 to +70 / -40 to +85。C | |||||||||||||||||||
| Storage Temp Range | -55 to +125。C | |||||||||||||||||||
| Sealing Method | Seam Weld | |||||||||||||||||||
| Moisture Sensitivity Level | 1 | |||||||||||||||||||

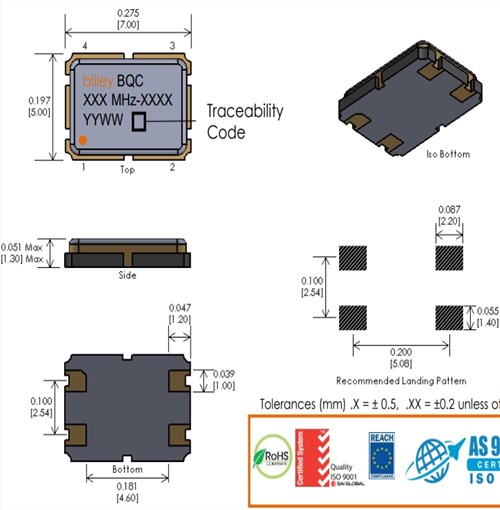

BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振 尺寸图
产品特征:
SMD晶振结构
标准5X7mm包装尺寸
高稳定性超过温度
更多相关Bliley百利晶振型号，请咨询我们！
