BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振，尺寸3.2x1.5mm，频率32.768KHZ，Bomar无源晶振，32.768KHZ无源晶振，欧美无源晶振，3215mm贴片晶振，32.768K晶振，无源贴片晶振，无源晶振，两脚贴片晶振，实时时钟晶振，智能水电晶振，无线设备晶振，移动通信晶振，通信设备晶振，小型设备晶振，影音系统晶振，网络设备晶振，低损耗晶振，低功耗晶振，高性能晶振，高质量晶振，具有高质量低损耗的特点。
BC46系列是一种超小型陶瓷SMD晶振，高度为0.8毫米。非常适合最小的电路空间可能的应用包括移动通信、芯片卡、实时时钟和无线通信。BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振.

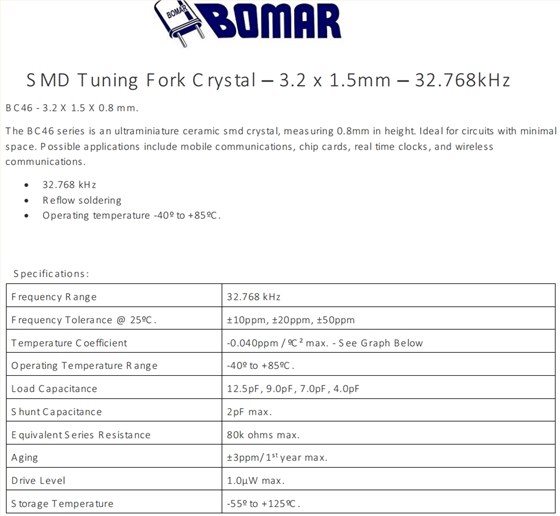

BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振 参数表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.040ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF, 7.0pF, 4.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 80k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 1.0µW max. | |||||||||
| Storage Temperature | -55º to +125ºC. | |||||||||

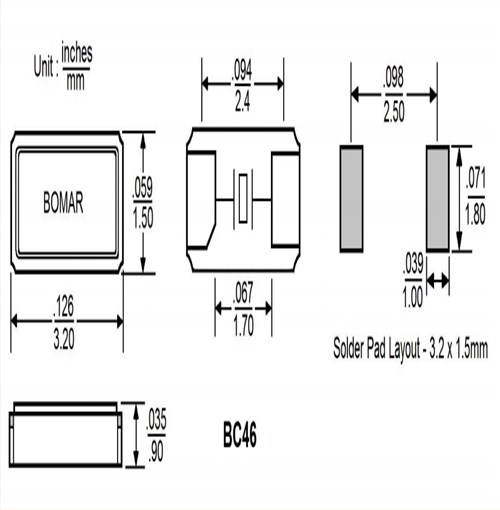

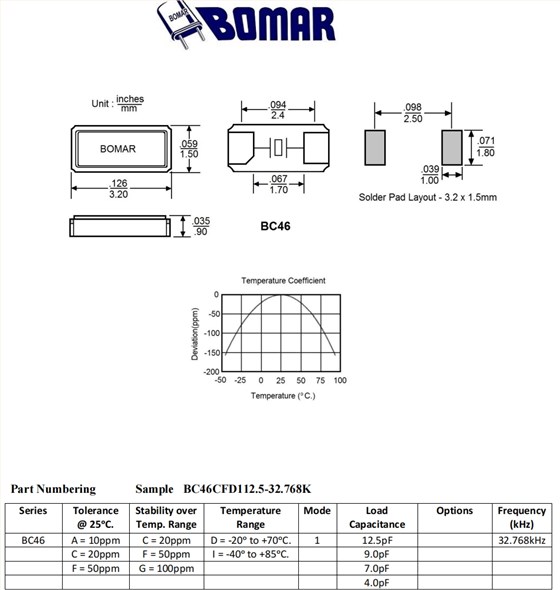

BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振 尺寸图
BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振
贴片晶振产品特性：
尺寸3.2x1.5mm
32.768千赫
回流焊接
工作温度-40º至+85ºC。
