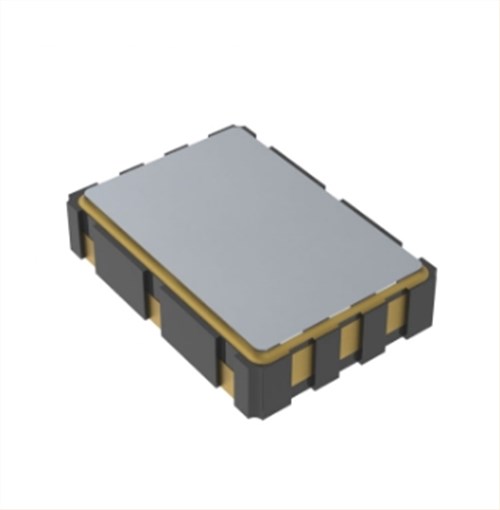

思佳讯Si530有源振荡器,6G物联网晶振,530GA36M0000DG

思佳讯Si530有源振荡器,6G物联网晶振,530GA36M0000DG，尺寸7.0×5.0mm，频率36MHZ，电压2.5V，输出逻辑CMOS，CMOS输出晶振，CMOS有源晶振，7050mm有源晶振，有源晶体振荡器，有源贴片晶振，OSC振荡器，低电压有源晶振，低抖动有源晶振，低损耗有源晶振，低相位有源振荡器，低功耗有源晶振，低相噪有源晶振，网络设备有源晶振，6G物联网有源晶振，数字视频有源晶振，小型设备有源晶振，具有低相位低抖动的特点.

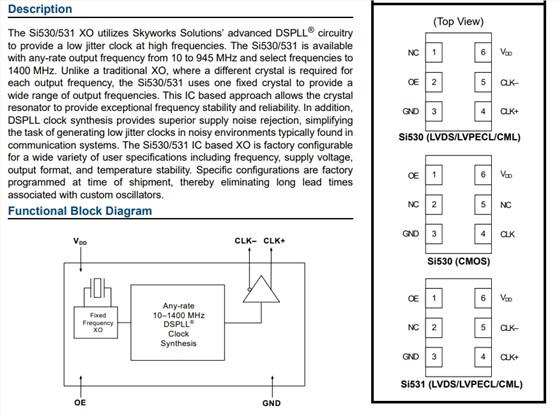

Si530/531 XO采用Skyworks Solutions的先进DSPLL®电路以提供高频下的低抖动时钟。Si530/531可用具有从10到945MHz的任意速率输出频率，并选择频率1400兆赫。与传统XO不同，在传统XO石英晶体振荡器中每个输出频率，Si530/531使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器，提供卓越的频率稳定性和可靠性。此外DSPLL时钟合成提供卓越的电源噪声抑制，简化在噪声环境中生成低抖动时钟的任务通常在通信系统.思佳讯Si530有源振荡器,6G物联网晶振,530GA36M0000DG.

思佳讯Si530有源振荡器,6G物联网晶振,530GA36M0000DG 参数表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage1	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	111 99 90 81	121 108 98 88	mA
		Tristate mode	—	60	75	mA
Output Enable (OE)2		VIH	0.75 x VDD	—	—	V
		VIL	—	—	0.5	V
Operating Temperature Range	TA		–40	—	85	ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency1,2

LVPECL/LVDS/CML

—

945

MHz

CMOS

—

160

MHz

Initial Accuracy

Measured at +25 °C at time of
shipping

—

±1.5

—

ppm

Temperature Stability1,3

–7
–20
–50

—

+7
+20
+50

ppm

Aging

Frequency drift over first year

—

±3

ppm

Frequency drift over 20 year
life

—

±10

ppm

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Total Stability

Temp stability = ±7 ppm

—

±20

ppm

Temp stability = ±20 ppm

—

±31.5

ppm

Temp stability = ±50 ppm

±61.5

ppm

Powerup Time4

tOSC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

LVPECL Output Option1

mid-level

VDD– 1.42

—

VDD– 1.25

VOD

swing (diff)

1.1

—

1.9

VPP

VSE

swing (single-ended)

0.55

—

0.95

VPP

LVDS Output Option2

mid-level

1.125

1.20

1.275

VOD

swing (diff)

0.5

0.7

0.9

VPP

CML Output Option2

2.5/3.3 V option mid-level

VDD– 1.30

1.8 V option mid-level

VDD– 0.36

VOD

2.5/3.3 V option swing (diff)

1.10

1.50

1.90

VPP

1.8 V option swing (diff)

0.35

0.425

0.50

VPP

CMOS Output Option3

VOH

IOH= 32 mA

0.8 x VDD

VDD

VOL

IOL= 32 mA

0.4

Rise/Fall time (20/80%)

tR,tF

LVPECL/LVDS/CML

350

CMOS with CL= 15 pF

Symmetry (duty cycle)

SYM

LVPECL:
(diff)
LVDS:
CMOS:

VDD– 1.3 V
1.25 V (diff)
VDD/2

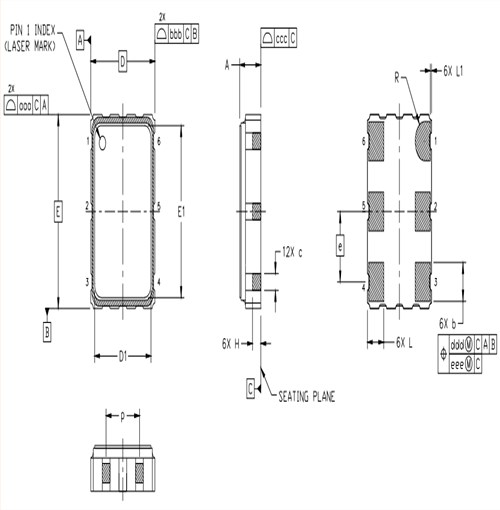

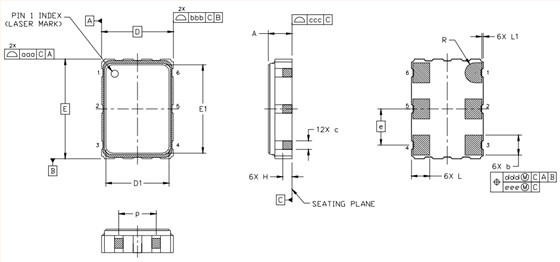

思佳讯Si530有源振荡器,6G物联网晶振,530GA36M0000DG 尺寸图

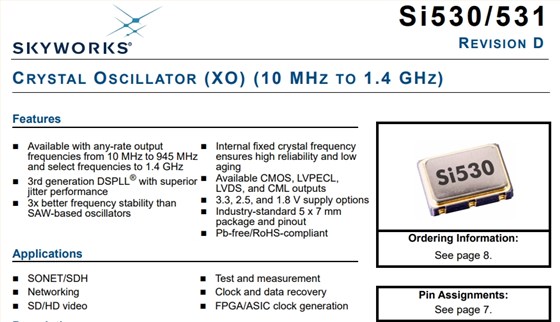

有源晶振产品特征:

可用于任何速率输出频率从10MHz到945MHz

并选择1.4 GHz的频率

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率

确保高可靠性和低成本变老

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5 x 7mm

包装和引脚

无铅/符合RoHS
