Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器

Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器

产品简介

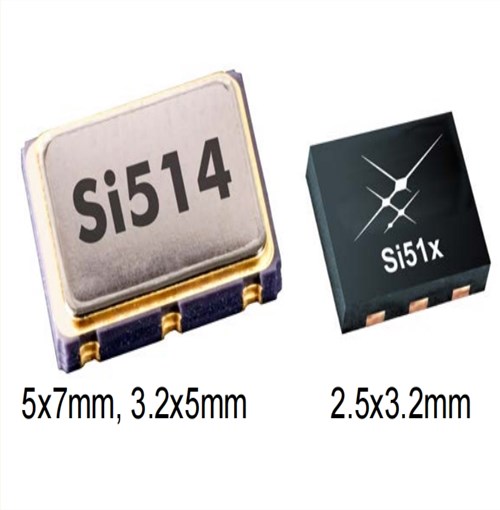

Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器，尺寸5.0x3.2mm，频率125MHZ，支持输出CMOS，XO时钟振荡器，六脚贴片晶振，有源晶体振荡器，低电压振荡器，低抖动振荡器，低功耗振荡器，Si514用户可编程I2C XO采用Skyworks Solutions的高级PLL通过编程提供从100 kHz到250 MHz的任何频率的技术分辨率为十亿分之0.026。Si514使用单个集成晶体Skyworks Solutions专有的DSPLL合成器，可生成任何频率使用简单的I2C命令在这个范围内。

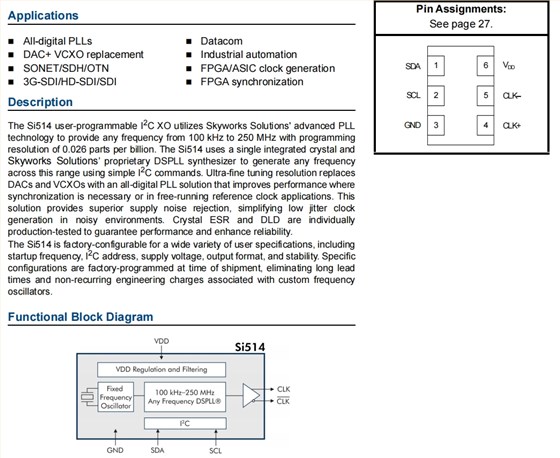

超精细调谐分辨率取代DAC和VCXO有源晶振采用全数字PLL解决方案，可在以下情况下提高性能同步是必要的，或者在自由运行的参考时钟应用程序中。这该解决方案提供卓越的电源噪声抑制，简化了低抖动时钟在嘈杂的环境中生成。产品很适合用于数据通信，工业自动化，所有数字PLL，FPGA同步等。Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器.



产品详情

Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器，尺寸5.0x3.2mm，频率125MHZ，支持输出CMOS，XO时钟振荡器，六脚贴片晶振，有源晶体振荡器，低电压振荡器，低抖动振荡器，低功耗振荡器，Si514用户可编程I2C XO采用Skyworks Solutions的高级PLL通过编程提供从100 kHz到250 MHz的任何频率的技术分辨率为十亿分之0.026。Si514使用单个集成晶体Skyworks Solutions专有的DSPLL合成器，可生成任何频率使用简单的I2C命令在这个范围内。

超精细调谐分辨率取代DAC和VCXO有源晶振采用全数字PLL解决方案，可在以下情况下提高性能同步是必要的，或者在自由运行的参考时钟应用程序中。这该解决方案提供卓越的电源噪声抑制，简化了低抖动时钟在嘈杂的环境中生成。产品很适合用于数据通信，工业自动化，所有数字PLL，FPGA同步等。Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器.

Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器 参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD CMOS, 100 MHz,
single-ended 		— 21 26 mA
LVDS
(output enabled) 		— 19 23 mA
LVPECL
(output enabled) 		— 39 43 mA
HCSL
(output enabled) 		— 41 44 mA
Tristate
(output disabled) 		— — 18 mA
Operating Temperature TA –40 — 85 oC
Parameter Symbol Test Condition Min Typ Max Units
SDA, SCL Input Voltage High VIH 0.80 x VDD — — V
SDA, SCL Input Voltage Low VIL — — 0.20 x VDD V
Parameter Symbol Test Condition Min Typ Max Units
Programmable
Frequency Range 		FO CMOS, Dual CMOS 0.1 — 212.5 MHz
FO LVDS/LVPECL/HCSL 0.1 — 250 MHz
Frequency
Reprogramming
Resolution 		MRES — 0.026 — ppb
Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output) 		From center frequency –1000 — +1000 ppm
Settling time for Small
Frequency Change 		<±1000 ppm from
center frequency 		— — 100 µs
Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition) 		>±1000 ppm from
center frequency 		— — 10 ms
Total Stability* Frequency Stability Grade C –30 — +30 ppm
Frequency Stability Grade B –50 — +50 ppm
Frequency Stability Grade A –100 — +100 ppm
Temperature Stability Frequency Stability Grade C –20 — +20 ppm
Frequency Stability Grade B –25 — +25 ppm
Frequency Stability Grade A –50 — +50 ppm
Startup Time TSU Minimum VDDuntil output
frequency (FO) within specification 		— — 10 ms
Disable Time TD FO< 10 MHz — — 40 µs
FO>10 MHz — — 5 µs
Enable Time TE FO< 10 MHz — — 60 µs
FO>10 MHz — — 20 µs

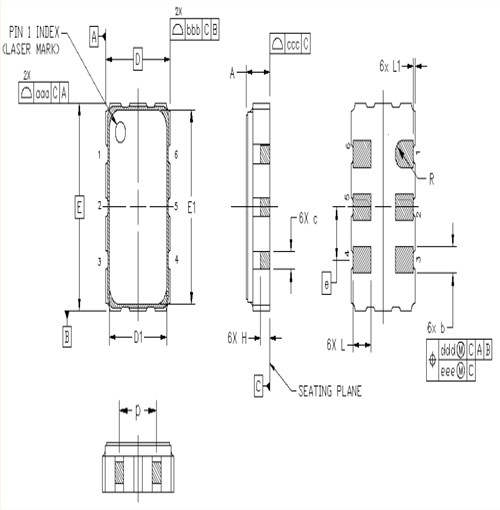

Si514可编程振荡器,514KCC000115BAG,6G交换机晶振,Skyworks贴片振荡器 尺寸图

Si514 5032

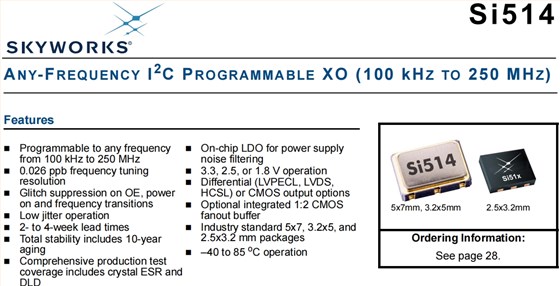

OSC晶振产品特征:

可编程到任何频率从100kHz到250MHz

0.026 ppb频率调谐决议

OE、电源故障抑制接通和频率转换

低抖动操作

2至4周交付周期

总体稳定性包括10年变老

综合生产试验覆盖范围包括晶体ESR和DLD

用于电源的片上LDO噪声滤波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS输出选项

可选集成1:2 CMOS扇出缓存

行业标准5x7、3.2x5和2.5x3.2mm包装

–40至85℃操作

Si514 1Si514 2

更多相关Skyworks晶振型号

Mfr Part # Mfr Description Series Frequency Output
514KCC000887BAG Skyworks有源晶振 XTAL OSC XO 24.0000MHZ CMOS SMD Si514 24 MHz CMOS
514BBC000932BAG Skyworks有源晶振 XTAL OSC XO 70.6560MHZ LVDS SMD Si514 70.656 MHz LVDS
514GBB000118AAG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CMOS SMD Si514 156.25 MHz CMOS
514FAA000115BAG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si514 125 MHz LVDS
514CBB000112BAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CCC000926AAG Skyworks有源晶振 XTAL OSC XO 5.0000MHZ CMOS SMD Si514 5 MHz CMOS
514BBC000932AAG Skyworks有源晶振 XTAL OSC XO 70.6560MHZ LVDS SMD Si514 70.656 MHz LVDS
514CAC001900BAG Skyworks有源晶振 XTAL OSC XO 11.1300MHZ CMOS SMD Si514 11.13 MHz CMOS
514CCC000148AAG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD Si514 24.576 MHz CMOS
514BCA001826BAG Skyworks有源晶振 XTAL OSC XO 216.9600MHZ LVDS SMD Si514 216.96 MHz LVDS
514CBB000112AAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514JAA000112BAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si514 10 MHz LVDS
514BBA001207AAG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si514 100 MHz LVDS
514BCA000112AAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si514 10 MHz LVDS
514CBC001037BAG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD Si514 24.576 MHz CMOS
514CAC000798BAGR Skyworks有源晶振 XTAL OSC XO 1.0000MHZ CMOS SMD Si514 1 MHz CMOS
514CCC000121BAGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si514 100 MHz CMOS
514CCC001432BAGR Skyworks有源晶振 XTAL OSC XO 72.0000MHZ CMOS SMD Si514 72 MHz CMOS
514CCC001733BAGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si514 100 MHz CMOS
514GCC001432BAGR Skyworks有源晶振 XTAL OSC XO 72.0000MHZ CMOS SMD Si514 72 MHz CMOS
514KCC000115BAGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ CMOS SMD Si514 125 MHz CMOS
514KCC001432BAGR Skyworks有源晶振 XTAL OSC XO 72.0000MHZ CMOS SMD Si514 72 MHz CMOS
514KBC001688BAGR Skyworks有源晶振 XTAL OSC XO 18.0000MHZ CMOS SMD Si514 18 MHz CMOS
514ACC000115BAGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si514 125 MHz LVPECL
514BCC001696BAGR Skyworks有源晶振 XTAL OSC XO 84.0000MHZ LVDS SMD Si514 84 MHz LVDS
514JCC001696BAGR Skyworks有源晶振 XTAL OSC XO 84.0000MHZ LVDS SMD Si514 84 MHz LVDS
514MCC000355BAGR Skyworks有源晶振 XTAL OSC XO 49.1520MHZ CMOS DUAL Si514 49.152 MHz CMOS, Dual (In-Phase)
514KBC001688BAG Skyworks有源晶振 XTAL OSC XO 18.0000MHZ CMOS SMD Si514 18 MHz CMOS
514CCC000121BAG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si514 100 MHz CMOS
514CCC001432BAG Skyworks有源晶振 XTAL OSC XO 72.0000MHZ CMOS SMD Si514 72 MHz CMOS
514CCC001733BAG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si514 100 MHz CMOS
514GCC001432BAG Skyworks有源晶振 XTAL OSC XO 72.0000MHZ CMOS SMD Si514 72 MHz CMOS
514KCC000115BAG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ CMOS SMD Si514 125 MHz CMOS
514KCC001432BAG Skyworks有源晶振 XTAL OSC XO 72.0000MHZ CMOS SMD Si514 72 MHz CMOS
514CCA000262BAGR Skyworks有源晶振 XTAL OSC XO 70.0000MHZ CMOS SMD Si514 70 MHz CMOS
514KCA000111BAGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si514 25 MHz CMOS
514PBC000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (In-Phase)
514PBC000436BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (In-Phase)
514QBC000436BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (Complementary)
514CBA000144BAGR Skyworks有源晶振 XTAL OSC XO 80.0000MHZ CMOS SMD Si514 80 MHz CMOS
514CAC000798BAG Skyworks有源晶振 XTAL OSC XO 1.0000MHZ CMOS SMD Si514 1 MHz CMOS
514BAC000163BAGR Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVDS SMD Si514 20 MHz LVDS
514MAC001723BAGR Skyworks有源晶振 XTAL OSC XO 42.5000MHZ CMOS DUAL Si514 42.5 MHz CMOS, Dual (In-Phase)
514NAC001763BAGR Skyworks有源晶振 XTAL OSC XO 9.8304MHZ CMOS DUAL Si514 9.8304 MHz CMOS, Dual (Complementary)
514CAA000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CCA000262BAG Skyworks有源晶振 XTAL OSC XO 70.0000MHZ CMOS SMD Si514 70 MHz CMOS
514KCA000111BAG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si514 25 MHz CMOS
514ACC000115BAG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si514 125 MHz LVPECL
514BCC001696BAG Skyworks有源晶振 XTAL OSC XO 84.0000MHZ LVDS SMD Si514 84 MHz LVDS
514JCC001696BAG Skyworks有源晶振 XTAL OSC XO 84.0000MHZ LVDS SMD Si514 84 MHz LVDS
514MCC000355BAG Skyworks有源晶振 XTAL OSC XO 49.1520MHZ CMOS DUAL Si514 49.152 MHz CMOS, Dual (In-Phase)
514KAB000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514MAB000107BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (In-Phase)
514CAB000159BAGR Skyworks有源晶振 XTAL OSCILLATOR Si514 148.5 MHz CMOS
514KAB000115BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 125 MHz CMOS
514CBB000790AAGR Skyworks有源晶振 XTAL OSC XO 32.0000MHZ CMOS SMD Si514 32 MHz CMOS
514CBB001212AAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CBB001524AAGR Skyworks有源晶振 XTAL OSC XO 48.0000MHZ CMOS SMD Si514 48 MHz CMOS
514CBB001541AAGR Skyworks有源晶振 XTAL OSC XO 96.0000MHZ CMOS SMD Si514 96 MHz CMOS
514KBB000144AAGR Skyworks有源晶振 XTAL OSC XO 80.0000MHZ CMOS SMD Si514 80 MHz CMOS
514PBC000112BAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (In-Phase)
514PBC000436BAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (In-Phase)
514QBC000436BAG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS DUAL Si514 10 MHz CMOS, Dual (Complementary)
514CBC000110BAGR Skyworks有源晶振 XTAL OSC XO 74.2500MHZ CMOS SMD Si514 74.25 MHz CMOS
514CBC000111BAGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si514 25 MHz CMOS
514CBC000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CBC000199BAGR Skyworks有源晶振 XTAL OSC XO 40.0000MHZ CMOS SMD Si514 40 MHz CMOS
514CBC000798BAGR Skyworks有源晶振 XTAL OSC XO 1.0000MHZ CMOS SMD Si514 1 MHz CMOS
514CBC000926BAGR Skyworks有源晶振 XTAL OSC XO 5.0000MHZ CMOS SMD Si514 5 MHz CMOS
514CBC000993BAGR Skyworks有源晶振 XTAL OSC XO 13.0000MHZ CMOS SMD Si514 13 MHz CMOS
514CBC001037BAGR Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD Si514 24.576 MHz CMOS
514CBC001598BAGR Skyworks有源晶振 XTAL OSC XO 5.1200MHZ CMOS SMD Si514 5.12 MHz CMOS
514CBC001728BAGR Skyworks有源晶振 XTAL OSC XO 37.0000MHZ CMOS SMD Si514 37 MHz CMOS
514CBC001729BAGR Skyworks有源晶振 XTAL OSC XO 38.0000MHZ CMOS SMD Si514 38 MHz CMOS
514CBC001730BAGR Skyworks有源晶振 XTAL OSC XO 38.0000MHZ CMOS SMD Si514 38 MHz CMOS
514GBC001688BAGR Skyworks晶振 XTAL OSC XO 18.0000MHZ CMOS SMD Si514 18 MHz CMOS
514KBC000894BAGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si514 100 MHz CMOS
514CBC000157BAGR Skyworks有源晶振 XO DIFF I2C PROGR XO 0.1-250MHZ Si514 50 MHz CMOS
514KBC001794CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 40 MHz CMOS
514KBC002240CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 40 MHz CMOS
514CBC001972CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 500 kHz CMOS
514CBA000144BAG Skyworks有源晶振 XTAL OSC XO 80.0000MHZ CMOS SMD Si514 80 MHz CMOS
514BAC000163BAG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVDS SMD Si514 20 MHz LVDS
514MAC001723BAG Skyworks有源晶振 XTAL OSC XO 42.5000MHZ CMOS DUAL Si514 42.5 MHz CMOS, Dual (In-Phase)
514NAC001763BAG Skyworks有源晶振 XTAL OSC XO 9.8304MHZ CMOS DUAL Si514 9.8304 MHz CMOS, Dual (Complementary)
514CAC000107BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CAC000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CAC000142BAGR Skyworks有源晶振 XTAL OSC XO 11.2896MHZ CMOS SMD Si514 11.2896 MHz CMOS
514CAC000306BAGR Skyworks有源晶振 XTAL OSC XO 22.5792MHZ CMOS SMD Si514 22.5792 MHz CMOS
514CAC000776BAGR Skyworks有源晶振 XTAL OSC XO 100.0000KHZ CMOS SMD Si514 100 kHz CMOS
514CAC000790BAGR Skyworks有源晶振 XTAL OSC XO 32.0000MHZ CMOS SMD Si514 32 MHz CMOS
514CAC001044BAGR Skyworks有源晶振 XTAL OSC XO 101.5000MHZ CMOS SMD Si514 101.5 MHz CMOS
514CAC001120BAGR Skyworks有源晶振 XTAL OSC XO 18.4000MHZ CMOS SMD Si514 18.4 MHz CMOS
514CAC001763BAGR Skyworks有源晶振 XTAL OSC XO 9.8304MHZ CMOS SMD Si514 9.8304 MHz CMOS
514CAC001900BAGR Skyworks有源晶振 XTAL OSC XO 11.1300MHZ CMOS SMD Si514 11.13 MHz CMOS
514GAC000163BAGR Skyworks有源晶振 XTAL OSC XO 20.0000MHZ CMOS SMD Si514 20 MHz CMOS
514KAC000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si514 10 MHz CMOS
514CAC001598BAGR Skyworks有源晶振 XTAL OSCILLATOR Si514 5.12 MHz CMOS
514CAC000157CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 50 MHz CMOS
514KAC002273BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 750 kHz CMOS
514KAC002272BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 750 kHz CMOS
514CAC000199CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 40 MHz CMOS
514KAC000171BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 75 MHz CMOS
514KAC002267BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 2.2 MHz CMOS
514KAC002252BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 2.2 MHz CMOS
514CAC000798CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 1 MHz CMOS
514CAC002205CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 24.576 MHz CMOS
514KAC002269BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 2.2 MHz CMOS
514KAC002270BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 2.2 MHz CMOS
514KAC002271BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 750 kHz CMOS
514KAC002268BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 2.2 MHz CMOS
514KAC002274BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 750 kHz CMOS
514KAC002275BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si514 750 kHz CMOS
514ABB000112BAGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si514 10 MHz LVPECL

上一页 余下全文

1/5

关于“XO时钟振荡器,六脚贴片晶振,有源晶体振荡器,低电压振荡器,低抖动振荡器”的相关产品

CTS晶振,石英晶体振荡器,315晶振,315LB3I1228T晶振CTS晶振,石英晶体振荡器,315晶振,315LB3I1228T晶振格耶时钟振荡器,KXO-V97T以太网晶振,12.94364四脚有源晶振格耶时钟振荡器,KXO-V97T以太网晶振,12.94364四脚有源晶振

DSB221SDN温补振荡器,1XXB32000PAA,大真空GPS定位晶振DSB221SDN温补振荡器,1XXB32000PAA,大真空GPS定位晶振DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03DSO1612AR民用设备晶振,大真空有源晶振,7FG00003A03

DSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZDSC1001AL5-048.0000,Microchip有源晶振,7050mm,48MHZMicrochip振荡器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mmMicrochip振荡器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm

AXE3225P‐33‐50-150.000MHz,AXTAL有源差分晶振,150MHZ,3225mmAXE3225P‐33‐50-150.000MHz,AXTAL有源差分晶振,150MHZ,3225mmGED小尺寸振荡器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振GED小尺寸振荡器,6035mm,SMD600.3C(E/D)-30.000MHz,SMD600系列晶振

VG7050CDN,X1G004861000600,7050mm,125MHz,EPSON压控晶振VG7050CDN,X1G004861000600,7050mm,125MHz,EPSON压控晶振VCXO,X1G004861001200,7050mm,VG7050CDN,148.5MHz,EPSON振荡器VCXO,X1G004861001200,7050mm,VG7050CDN,148.5MHz,EPSON振荡器

热点推荐

CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC消费电子产品专用晶振WiFi模块专用晶振LFXTAL059596REEL差分晶振510ABA125M000BAG提供卓越的电源噪声抑制优秀相位噪声的TCXO晶体振荡器AST3TQ-T-19.200MHZ-28-T2最佳选择为是军用无线电车载控制器TCXO晶振1XTW20000CCA

网友热评

返回头部
  • 台产晶振
  • 日产进口晶振
  • 欧美进口晶振
  • 32.768K晶振
  • 石英晶体振荡器

深圳市康比电子有限公司版权所有

微信号

微信号

公众号

公众号

服务热线：+86-0755-27876201
公司邮箱： kangbidz@163.com
手 机：137 2874 2863
公司地址：广东深圳市宝安区67区6号庭威工业区

Copyright © 1996-2018

※ CEOB2B技术支持 ※
