KX-6T小型设备晶振,GEYER格耶SMD晶体,12.86533石英振动子，尺寸2.5x2.0mm，频率26MHZ，丹麦无源晶振，格耶水晶振动子，无源贴片晶振，无源石英晶振，石英晶体谐振器，轻薄型晶振，SMD晶振，石英贴片晶振，2520mm贴片晶振，26MHZ无源晶振，四脚贴片晶振，石英振动子，绿色环保晶振，低耗能石英晶振，高品质石英晶振，低功耗晶振，低损耗晶振，低老化晶振，无线应用晶振，蓝牙耳机晶振，娱乐设备晶振，平板电脑晶振，数字视频晶振，可视化电话晶振，6G网络晶振，播放器晶振，安防晶振，具有低耗能高品质的特点.

在极端严酷的环境条件下,晶振也能正常工作,具有稳定的起振特性,高耐热性,耐热循环性和耐振性等.无源晶振产品常用于无线，蓝牙耳机晶，娱乐设备，平板电脑，数字视频，可视化电话，6G网络，播放器，安防等应用.KX-6T小型设备晶振,GEYER格耶SMD晶体,12.86533石英振动子.

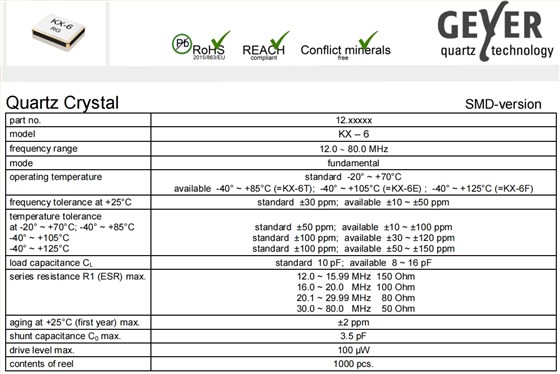

KX-6T小型设备晶振,GEYER格耶SMD晶体,12.86533石英振动子 参数表

part no.	12.xxxxx
model	KX-6T
frequency range	16.0 MHz
mode	fundamental
operating temperature	standard-20° ~ +70°C available-40° ~ +85°C (=KX-6T);-40° ~ +105°C (=KX-6E) ;-40° ~ +125°C (=KX-6F)
frequency tolerance at +25°C	standard±30 ppm;available±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C	standard±50 ppm;available±10 ~ ±100 ppm standard±100 ppm;available±30 ~ ±120 ppm standard±100 ppm;available±50 ~ ±150 ppm
load capacitance CL	standard10 pF;available8 ~ 16 pF
series resistance R1 (ESR) max.	12.0 ~ 15.99 MHz150 Ohm 16.0 ~ 20.0MHz100 Ohm 20.1 ~ 29.99 MHz80 Ohm 30.0 ~ 80.0MHz50 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0max.	3.5 pF
drive level max.	100 µW
contents of reel	1000 pcs.

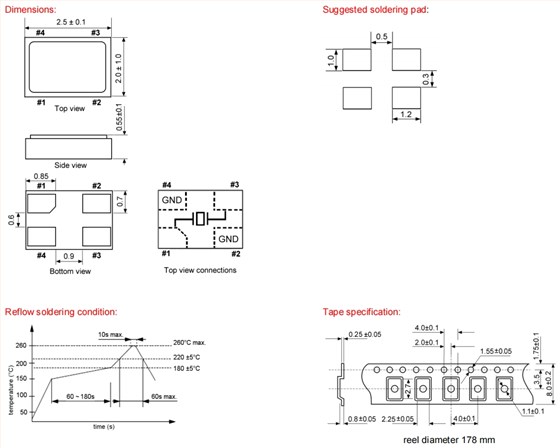

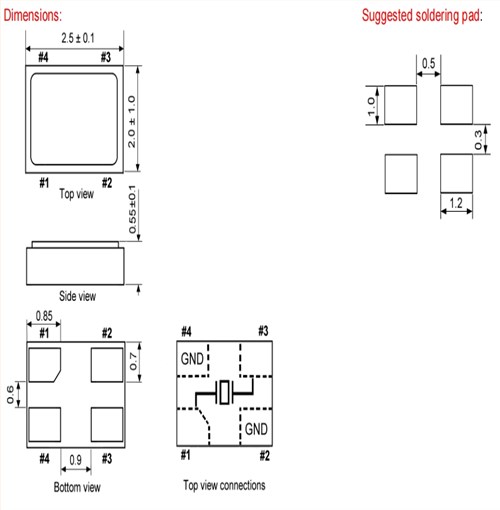

KX-6T小型设备晶振,GEYER格耶SMD晶体,12.86533石英振动子 尺寸图

KX-6T小型设备晶振,GEYER格耶SMD晶体,12.86533石英振动子

产品特性：

尺寸2.5x2.0mm无源晶体元件

频率范围12~80MHZ

符合RoHS标准且无铅

低损耗低功耗

Mfr Part #	欧美晶振	Description	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance	Operating Temperature
12.85547	Geyer晶振	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.8919	Geyer晶振	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm	±100ppm	16pF	-40°C ~ 85°C
12.85562	Geyer晶振	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.60208	Geyer晶振	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm	±20ppm	8pF	-40°C ~ 85°C
12.86531	Geyer晶振	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.88664	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.89495	Geyer晶振	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm	±50ppm	16pF	-20°C ~ 70°C
12.89103	Geyer晶振	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm	±30ppm	16pF	-40°C ~ 105°C
12.887	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.89131	Geyer晶振	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
12.86512	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.89126	Geyer晶振	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm	±30ppm	16pF	-40°C ~ 105°C
12.8655	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm	±30ppm	10pF	-40°C ~ 105°C
12.86526	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
12.6009	Geyer晶振	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
12.88701	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm	±30ppm	12pF	-40°C ~ 85°C
12.88493	Geyer晶振	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm	±30ppm	12pF	-40°C ~ 85°C
12.85521	Geyer晶振	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
12.89078	Geyer晶振	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm	±30ppm	16pF	-40°C ~ 85°C
12.86517	Geyer晶振	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.84812	Geyer晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.88508	Geyer晶振	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
12.88711	Geyer晶振	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
12.85519	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm	±20ppm	8pF	-40°C ~ 85°C
12.89027	Geyer晶振	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm	±30ppm	16pF	-20°C ~ 70°C
12.85539	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
12.88721	Geyer晶振	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
12.88667	Geyer晶振	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm	±30ppm	8pF	-40°C ~ 85°C
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
12.89082	Geyer晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
12.60075	Geyer晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
12.89155	Geyer晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
12.88522	Geyer晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.88752	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
12.88565	Geyer晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm	±30ppm	8pF	-40°C ~ 85°C
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.89209	Geyer晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	20pF	-40°C ~ 105°C
12.8652	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm	±30ppm	8pF	-40°C ~ 125°C
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm	±30ppm	8pF	-20°C ~ 70°C
12.84818	Geyer晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm	±30ppm	8pF	-20°C ~ 70°C
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.86505	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.60024	Geyer晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	12pF	-40°C ~ 105°C
12.84803	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.85518	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm	±30ppm	8pF	-40°C ~ 105°C
12.8873	Geyer晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
12.86556	Geyer晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.88643	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
12.86511	Geyer晶振	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.88523	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
12.89288	Geyer晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
12.86536	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.89029	Geyer晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
12.88799	Geyer晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
12.8481	Geyer晶振	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.84814	Geyer晶振	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
12.88756	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm	±10ppm	12pF	-40°C ~ 105°C
12.8556	Geyer晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
12.86561	Geyer晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
12.8877	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm	±10ppm	12pF	-25°C ~ 80°C
12.86564	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.86592	Geyer晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
12.87159	Geyer晶振	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87163	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm	±20ppm	7pF	-40°C ~ 85°C
12.87151	Geyer晶振	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±30ppm	9pF	-40°C ~ 85°C
12.8717	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-	±20ppm	12.5pF	-40°C ~ 85°C
12.87148	Geyer晶振	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	7pF	-40°C ~ 85°C
12.87106	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm	±20ppm	7pF	-40°C ~ 85°C
12.8716	Geyer晶振	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm	±20ppm	12.5pF	-40°C ~ 85°C
